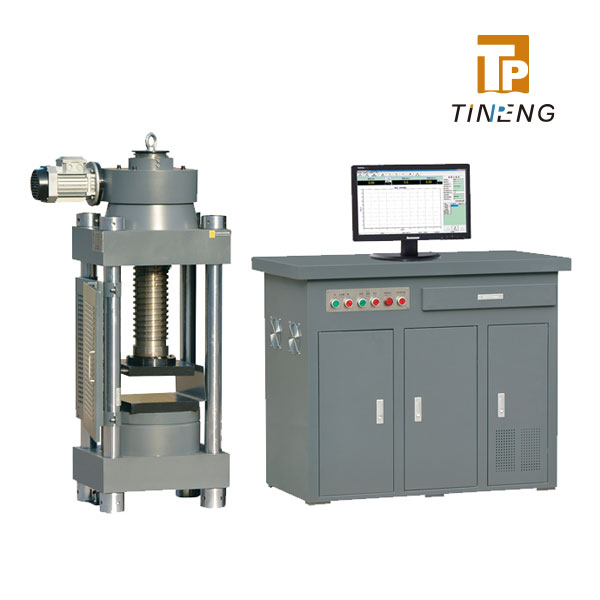

HYE-300B/HYE-300B-D
HYE-300B uses fully computer controlled and standard keyboard to operate the machine. HYE-300B-D uses touch screen to operate the machine. It can automatically save and process the data and automatically print the report. It has constant loading rate (you can freely set the loading rate) and automatic overload protection device. It is mainly used to determine the compressive strength and bending strength of the cement specimen 40x40x160mm.
STANDARD
- EN 196-1, 459-2, 13454-2
- ASTM C109, C348, C349
- BS 3892-1,4551-1
Get Wholesale Price
HYE-300B uses fully computer controlled and standard keyboard to operate the machine. HYE-300B-D uses touch screen to operate the machine. It can automatically save and process the data and automatically print the report. It has constant loading rate (you can freely set the loading rate) and automatic overload protection device. It is mainly used to determine the compressive strength and bending strength of the cement specimen 40x40x160mm.
TECHNICAL PARAMETERS
HYE-300B
Max Capacity: Compression 300kN; Bending 10kN
Accuracy class: Class 0.5
Compression space: 180mm
Piston stroke: Compression 80mm; Bending 60mm
Size of upper compression plate(Fix type): Compression Dia. 108mm; Bending Dia. 60mm
Size of upper compression plate(Ball head): Compression Dia. 170mm
Size of lower compression plate: Compression Dia. 205mm
Dimension(load frame): 1150 x 500 x 1400 mm
Power: 380V(220V optional), 50Hz(60Hz optional), 0.75kW
Weight: 500 kg
HYE-300B-D
Max Capacity: Compression 300kN; Bending 10kN
Accuracy class: Class 0.5
Compression space: 180mm
Piston stroke: Compression 80mm; Bending 60mm
Size of upper compression plate(Fix type): Compression Dia. 108mm; Bending Dia. 60mm
Size of upper compression plate(Ball head): Compression Dia. 170mm
Size of lower compression plate: Compression Dia. 205mm
Dimension(load frame): 1160×500×1400 mm
Power: 380V(220V optional), 50Hz(60Hz optional), 0.75kW
Weight: 540 kg
