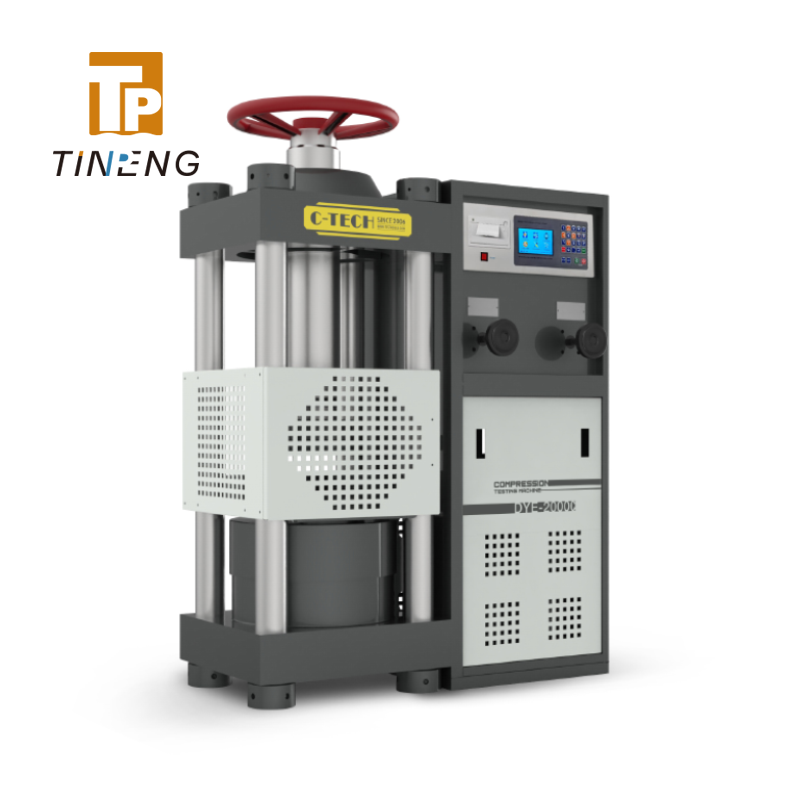

DYE-2000C/DYE-2000L
This equipment is used to determine the compressive strength of building materials such as bricks, stones, and concrete. It adopts hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing to calculate the compressive strength and generate a report. It consists of four parts: test host, oil source (hydraulic power
source), measurement and control system, and test tools. It has dynamic display of load, time and test curve, timely control function and maximum test force maintenance function. It is a
necessary testing equipment for engineering units such as construction, building materials, highways and bridges.
STANDARD
- EN 12390-3, ASTM C39
Get Wholesale Price
FEATURES
-Hydraulic loading, sensor-based force measurement, and intelligent control system.
-Manual valve controls loading speed, ensuring accurate measurement and stable operation.
-Features include peak hold, overload protection, and adjustable loading speed.
-Complies with EN and ASTM standards, suitable for compressive strength testing of construction materials.
-Robust structure with self-leveling platens and dust-proof design.
-Easy installation, clear maintenance guidelines, and supports regular calibration.
TECHNICAL SPECIFICATIONS

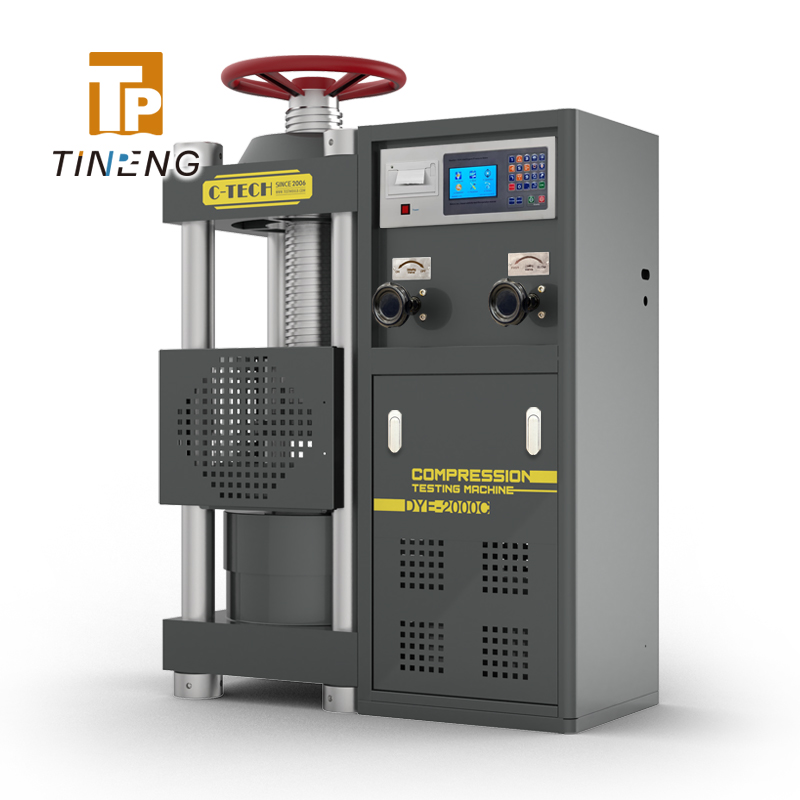

DYE-2000C
Maximum test force:2000kN
Display size:4.5 inches
Class:1
Minimum resolution:0.1kN
Compression space:400mm
Size of upper and lower platen:Ø240mm, 250x350mm
Piston diameter/travel:Ø250mm/80mm
Motor power:0.75kW
Power supply:AC380V±10V/50Hz
AC220V 50/60Hz (optional)
Host dimensions:910x460x1320mm
Host weight:750kg
Applicable cylinder specimen:Ø100mm, Ø150mm, Ø160mm(Max. sample height: 320mm)
Applicable cube specimen:100mm, 150mm, 200mm

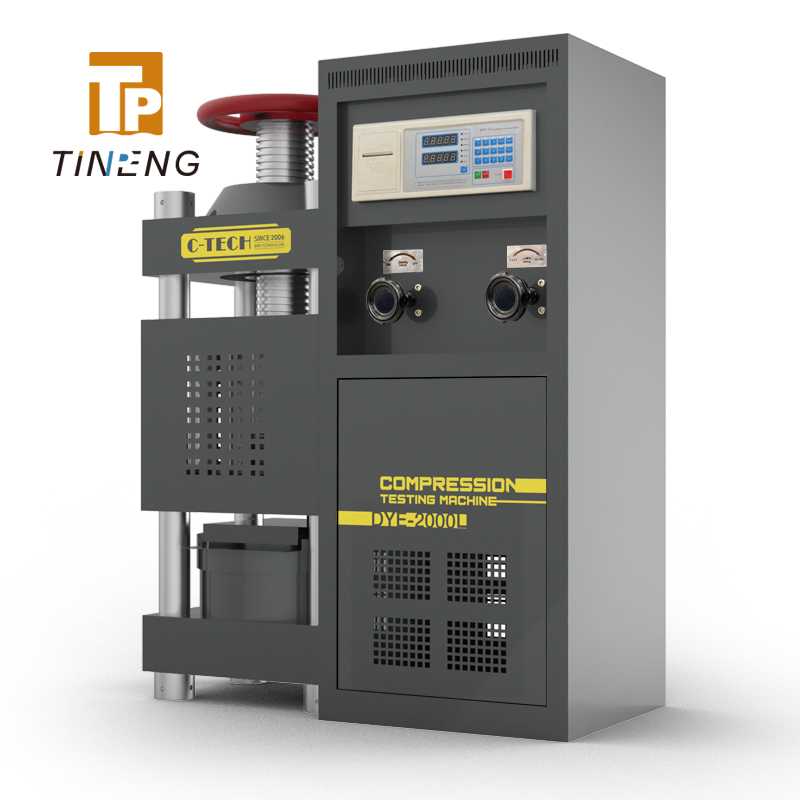

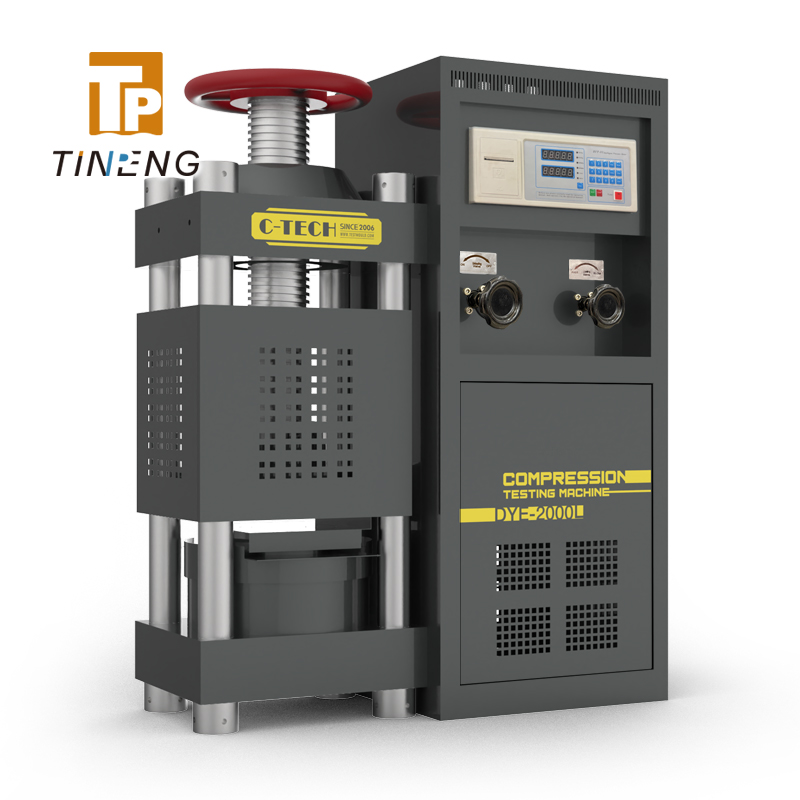

DYE-2000L
Maximum test force:2000kN
Intelligent Press meter:fengyi brand RFP-03
Class:1
Minimum resolution:0.1kN
Compression space:320mm
Size of upper and lower platen:Ø240mm, 220x250mm
Piston diameter/travel:Ø250mm/80mm
Motor power:0.75kW
Power supply:AC380V±10V/50Hz
AC220V 50/60Hz (optional)
Host dimensions:940x455x1205mm
Host weight:650kg
Applicable cylinder specimen:Ø100mm, Ø150mm,(Max. sample height: 300mm)
Applicable cube specimen:100mm, 150mm, 200mm
