WG-1C/WG-1B/GDG-4S

Triplex Consolidation Apparatus is used for compression test of soil, and to determine the relationship between deformation and compression of soil, to calculate the unit sediment compression index, resilient index, as well as consolidation coefficient of soil, etc. Dial indicators need to be ordered separately.

TECHNICAL PARAMETERS

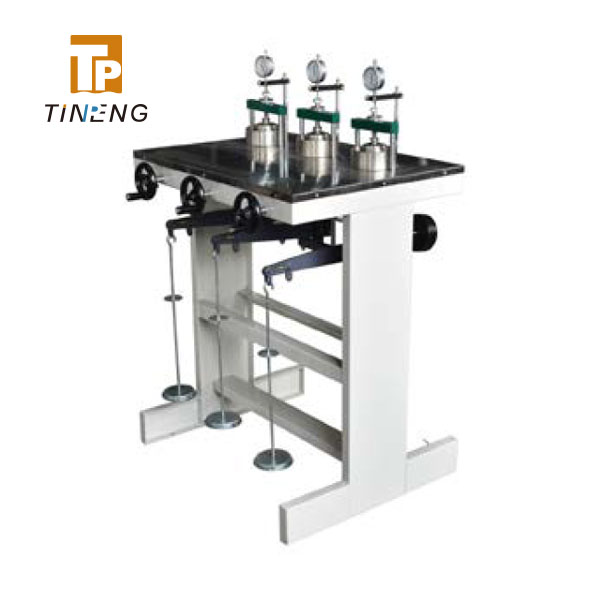

WG-1C Triplex Consolidation Apparatus

Frame: Steel structure
Sample area: 30 cm² or 50 cm²
Sample's quantity: Three
Lever ratio: 12: 1; 10:1
Consolidation container: One beam, two beams, three beams
Pressure range: 12.5 kpa/30cm² to 800 kpa/30cm², 12.5 kpa/50cm² to 400 kpa/50cm²
Grade: 8, 7 grade

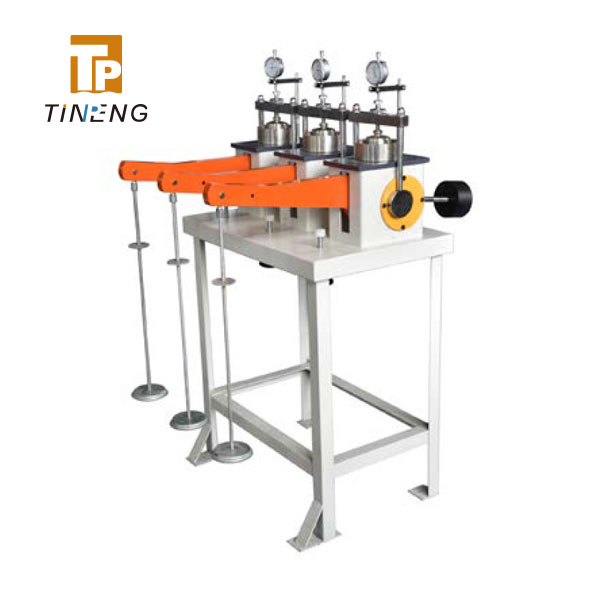

WG-1B Triplex Consolidation Apparatus

Sample area: 30 cm² or 50 cm²
Lever ratio: 12:1; 10:1
Sample's quantity: Three
Pressure range: 12.5~1600kpa, 12.5~800kpa
Grade: 9, 8 grade

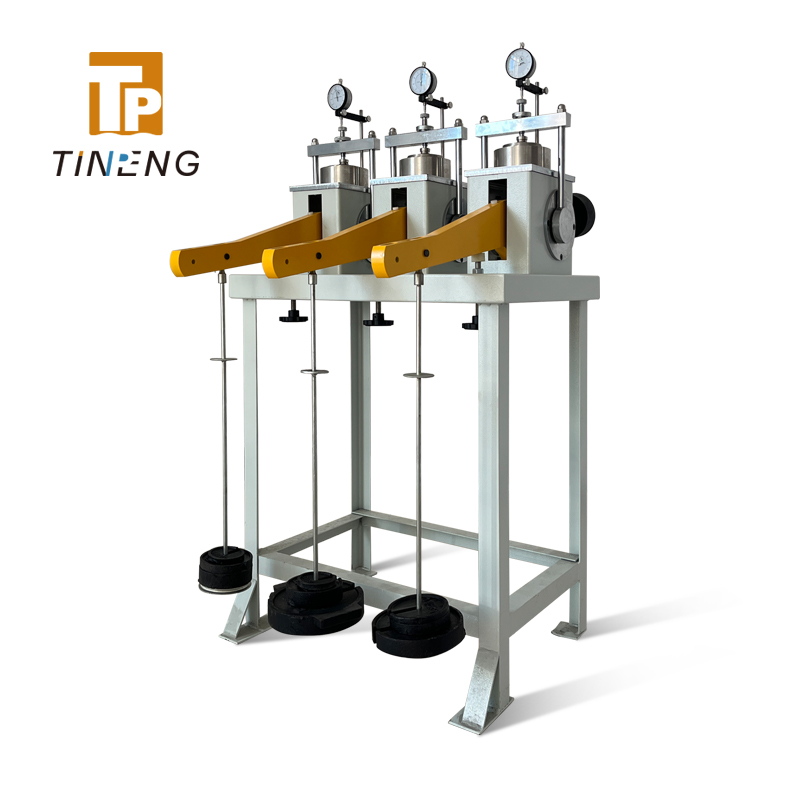

GDG-4S Triplex Consolidation Apparatus

Sample area: 30 cm² or 50 cm²
Lever ratio: 24:1; 20:1
Sample's quantity: Three
Pressure range: 12.5~4000kpa, 12.5~2000kpa
Grade: 10, 9 grade
