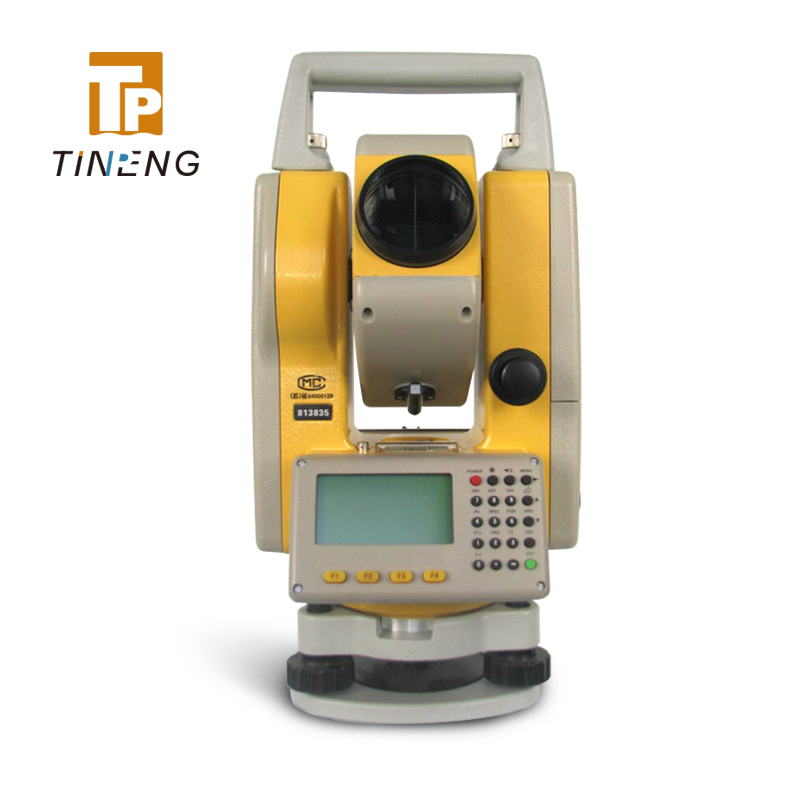

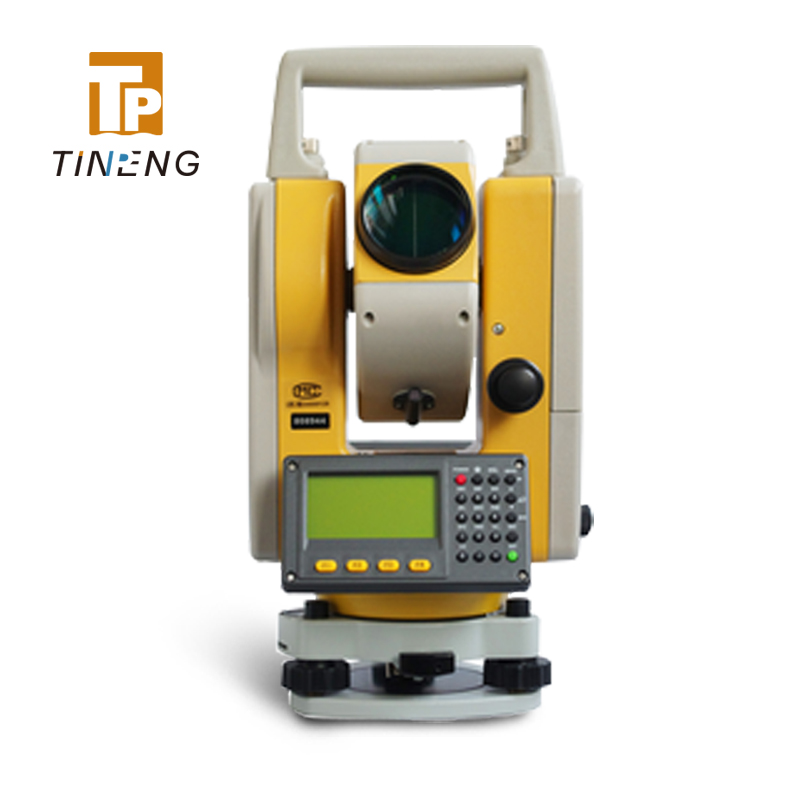

Total station DTM-752R/DTM-624/DTM-152

The total station is a surveying instrument that combines an electronic theodolite and an electronic distance meter (EDM) to provide accu-rate measurements of both horizontal and vertical angles as well as distances. It is commonly used in construction, engineering, and land surveying projects to collect data for creating detailed maps, plans, and 3D models.

 TECHNICAL SPECIFICATIONS
  TOTAL STATION DTM-752R
  Distance measurement
  Maximum distance: Singles prism Singles prism 3.0 Km
                                  Three prisms 5.0Km
                                  No-prism      400m/600m
   Digital display :Max:99999999.9999 m Min.:0.1 mm
   Precision: No-prism 5+3ppm, prism 2+2ppm
   Unit:m/ft for selection
   Time for measuring :Single fine measurement 2 S. tracking 0.8 S
   Number of measurements: 1~99
   Meteorologic correction: Automatic correction of input parameter
   Atmospheric refraction and earth curvature correction: Automatic correction of input  parameter, K=0.14
   Prism constant correction: Automatic correction of input parameter
   Angle measurement
   Angle measurement method :Absolute code
   Grating disc dia. (horizontal, vertical): 79mm
   Min. reading displayed: 1"
   Detection method Horizontal circle:2 sides
   Vertical circle:2 sides
   Precision :2”
   Telescope
   Imaging:Right reading
   Barrel length: 170mm
   Objective lens effective aperture: 48mm
   Magnification: 30×
   Viewing angle: 1°30'
   Resolution： 3.5”
   Min. focus distance:1.5m
   Automatic vertical compensator　
   System: Single axis, double axis liquid electronic sensor compensation
   Operating range: ±3'
   Accuracy: ±3”
   Level
   Level tube: 20”/2mm,30”/2mm
   Circular vial: 8'/2mm
   Optical plummet
   Imaging: Positive image
   Magnifying ratio: 3×
   Focusing range: 0.5m~
   Field angle: 5°
   Display
   Type:Two sides, graphically
   Data transmission
   Interface: RS-232C
   Battery
   Power supply: Rechargeable Ni-MH battery, rechargeable lithium battery
   Volt.:Lithium battery: DC7.6V; Ni-MH battery: DC7.2V
   Continuous operation time: 8hours
   Size and weight
   Overall dimensions: 174×207×383mm
   Weight: 6.8kg
  TOTAL STATION DTM-624
  Distance Measurement Section
  Single prism: 2000m
   Three prism: 3200m
   No prism: 400m
   Accuracy: Prism: ±(3mm+2ppm·D)
                   No prism: ±(5mm+3ppm·D)
   Unit:m／ft
   Display: Maximum 999999.999m
       Minimum 1mm
   Measuring time: Precise model:2S, track model:0.5S
   Number of time Set: 1~99
   Meteorologic correction: Input the value and correct automatic
   Prism constant: Input the value and correct automatic
   Angle Measurement Section
   Method: Absolute coding
   Grating diameter: 74mm
   Minimum reading: 1″
   Measuring unit: 360°
   Detection: Diametrical detection
   Accuracy: 2″
  Telescope Section
   Light source: Lasser
   Imaging: Positive
   Length: 165ｍｍ
   Effective aperture: 48mm
   Magnification :30×
   Distinguishability: 3.75″
   Minimum focus distance: 1m
   Stadia ratio: 100
   Vial
   Plate vial: 20″/2mm
   Circular vial: 8′/2mm
   Vertical Compensator
   System: Single axis tilt sensor
   Working range: ±3′
   Distinguishability: 1″
   Optical Plummet
   Magnification :3×
   Focusing range: 0.3m~∞
   Field of view: 5°
   Display Section
   Type: Double sides,160×80 LCD Display
   Data Transmission port: USB, RS-232C
   On-board Battery
   Power resource: Rechargeable Ni-H battery
   Voltage DC7.2V, 3000mAh
   Continuous working time: Angle measurement: 20 hours
                                           Distance measurement: 8 hours
   Operation Environment
   Working temperature -20℃~45℃
   Size & weight
   Dimension 180×175×355mm
   Weight: 6.5Kg

   TOTAL STATION DTM-152
    Distance Measurement Section
    Range: Single prism 3000m
                  hree prism 5000m
   Accuracy: ±(2mm+2ppm·D), ±(3mm+2ppm·D)
   Unit: m／ft
   Display: Maximum 99999999.9999m
                   Minimum 0.1mm
    Measuring time: Precise model:1S, track model:0.8S
    Number of time: Set 1~99
    Meteorologic correction: Input the value and correct automatic
    Prism constant: Input the value and correct automatic
    Angle Measurement Section
    Method: Absolute coding
    Grating diameter: 79mm
    Minimum reading: 1″
    Detection: Horizontal Diametrical detection
                      Vertical Diametrical detection
   Accuracy: 2″
   Telescope Section
   Imaging: Positive
   Length: 170ｍｍ
   Effective aperture: 48mm
   Magnification: 30×
   Angle of vision: 1.5°
   Distinguishability: 3.5″
   Minimum focus distance: 1.5m
   Compensator
   System: Double axis photoelectric tilt sensor or
                   Single axis liquid tilt sensor
   Working range: ±3′
   Distinguishability: 1″
   Display Section
   Type: Double sides,160×80 LCD Display
   Data Transmission
   Port: USB，RS-232C
   Capacity: 40,000 data at least
   Others
   Plummet: Optical or Laser plummet
   Power: Rechargeable lithium battery, DC7.2V,3000mAh
   Continuous working time: 8 hours at least
   Size: 168×165×348mm
   Weight: 6.8Kg
   Working temperature: -20℃~50℃
