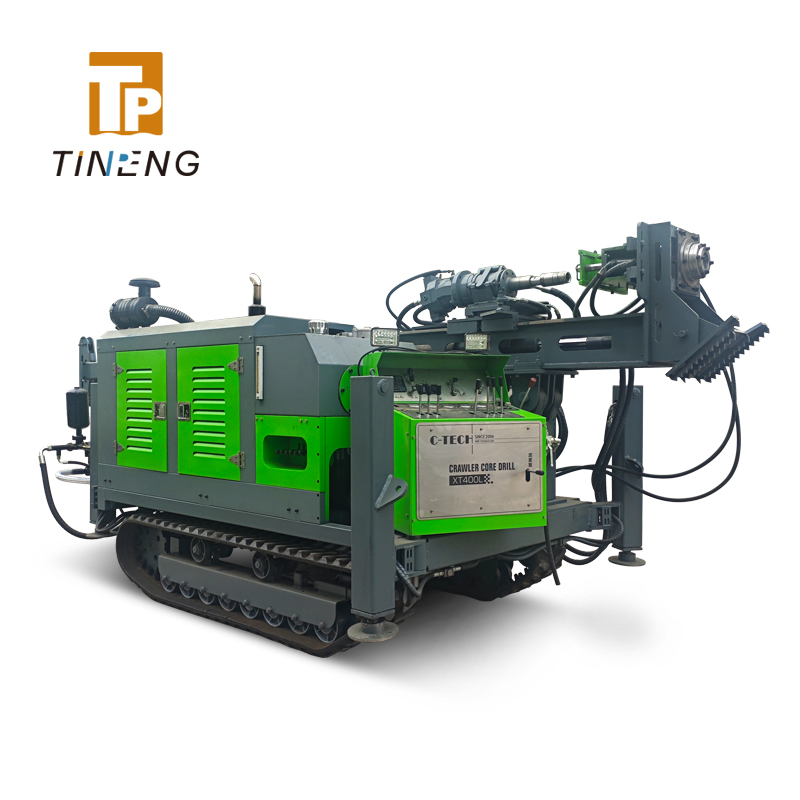

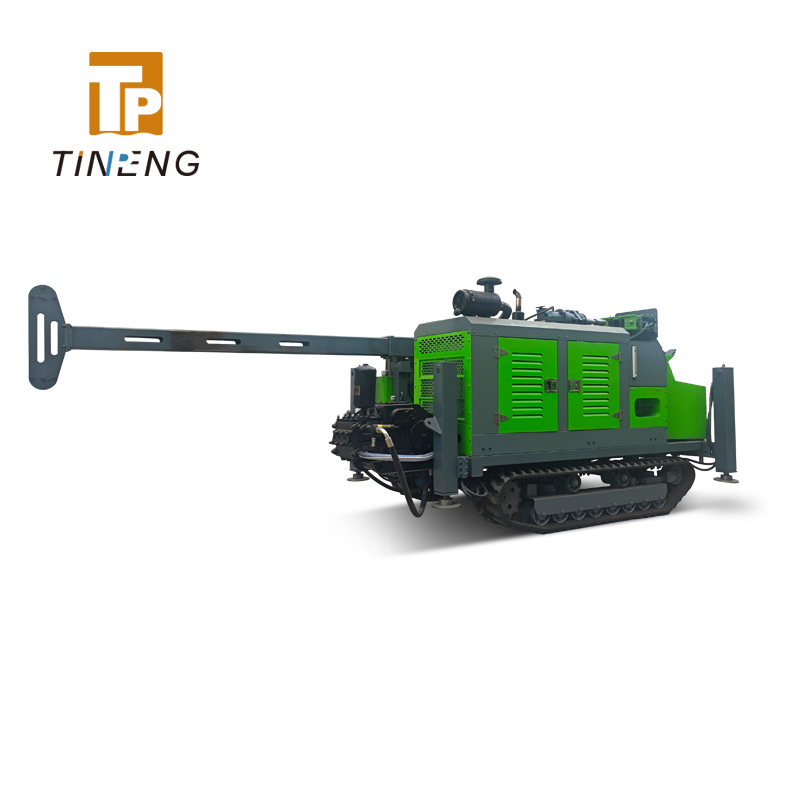

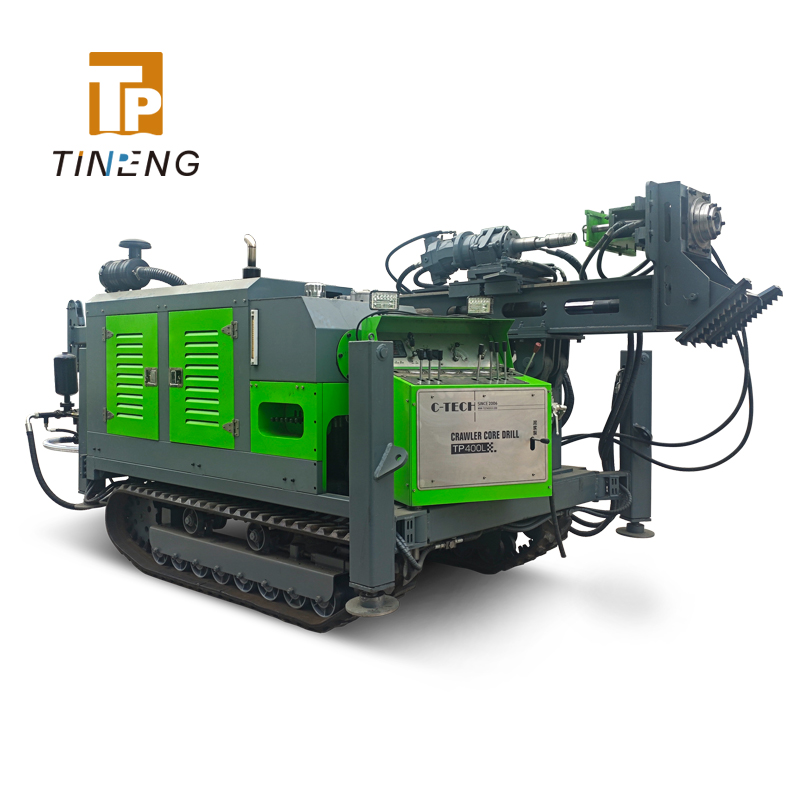

Crawler core drill XT400L
The crawler core drill is a versatile crawler-mounted drilling rig designed for efficient core exploration and engineering investigations. Featuring fully hydraulic operation and remote-controlled mobility, it excels in various terrains with high drilling precision. Equipped with an integrated mast and multi-functional accessories, it is ideal for core sampling and mineral prospecting.
The crawler core drill is a versatile crawler-mounted drilling rig designed for efficient core exploration and engineering investigations. Featuring fully hydraulic operation and remote-controlled mobility, it excels in various terrains with high drilling precision. Equipped with an integrated mast and multi-functional accessories, it is ideal for core sampling and mineral prospecting.
TECHNICAL PARAMETERS
XT-400L
Drill Diameter: HTW/NTW/BTW
Max Depth: 400m
Max Pressure: 20 MPa
Flow Rate: 200 L/min
Cooling: Air + Water
Brand: YUNNEI
Rated Speed: 2200 RPM
Power: 76 kW
Rotation Type Piston: Motor (Stepless)
Max Torque: 1500 N·m
Max Speed: 1300 RPM
Rod Length: 1.5m

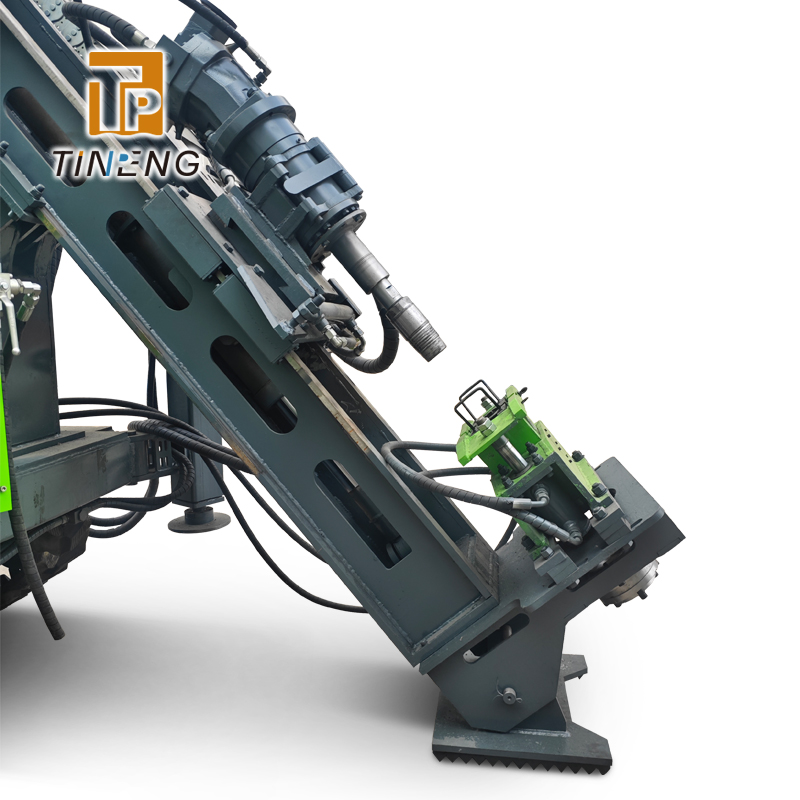

Type: Ground-touch Integrated Mast
Drilling Angle: 0–90°
Lifting Force: 12 T
Feed Force: 10 T
Lifting Force: 1000 kg
Line Speed: 100–300 RPM
Wire Rope Diameter: 6 mm
Capacity: 400 m
Control: Manual + Remote
Speed: 3.5 km/h
Gradeability: 45°
Flow Rate: 100 L/min
Pressure: 4–7 MPa
Dimensions: 4.1m×1.8m×2.25m
Weight: 4.5 T (Rubber Track)
