SYD-0613A/SYD-0613

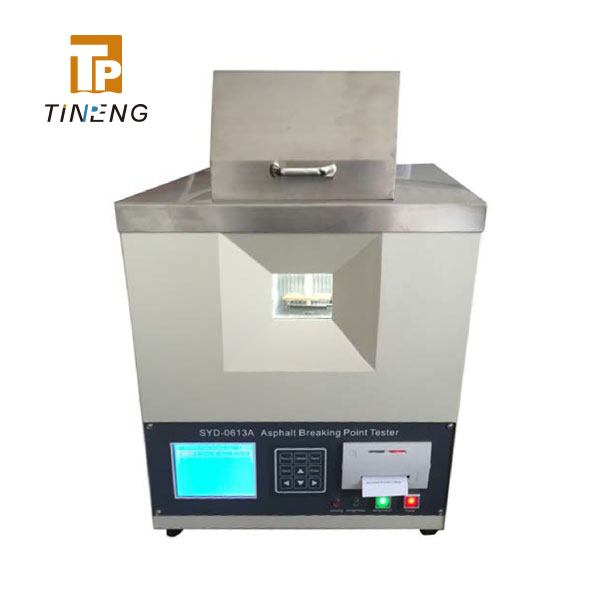

Automatic asphalt breaking point tester
It is suitable to determine Fraass Breaking Point of bituminous materials.
The tester includes two part they are model HWY-15 low temperature circulation constant bath and breaking point main unit.

Manual asphalt breaking point tester

Used for determining the breaking point of solidandsemi - solid bitumens. The Fraas Breaking Point is the temperature at which bitumen first becomes brittle, as indicated by the appearance of cracks when a thin-film of the bitumen on a metal plaque is cooled and flexed in accordance with specified conditions.
The instrument is composed of outer cylinder, temperature preservation cylinder, thermometer, lower plate, upper grip, fixing rod, base, guide rail, sweeping block, handle, steel sheet and so on.
The temperature preservation cylinder is a double layer glass cylinder. It is used to
place the dry ice and ethylalcohol mixtures. It is the cooling unit.
The lower plate and upper grip are metal sheets.
The fixing rod and movable rod are made of fabroil.
The base, guide rail, sweeping block and handle are used to changer the relative position of fixing rod and movable rod to make the sample sheet bending.

TECHNICAL PARAMETERS

Automatic asphalt breaking point tester
Power supply: AC 220V±10%, 50 Hz
Cooling mode: by water by water
Cooling rate: 1℃±0.5℃/min
Temperature measurement range: -27℃~25℃
Temperature measurement error: ±0.5℃
Size of steel sheet: 41×20×0.15(mm);
Sample quantity: it can make determination for 3 pieces of samples at the same time;
Ambient temperature: room temperature~+30℃;
Relative humidity: ≤85%;
Total power consumption: not more than 450 W; Note: "low temperature circulation constant bath" power consumption: not more than 1600W
Dimension: 500mm×400mm×570mm(main unit)

Manual asphalt breaking point tester
Thermometer: -38°C~+30°C,division value 0.5°C
Size of sample sheet: 41mm×20mm×0.15mm
Weight approx.: 3 kg
