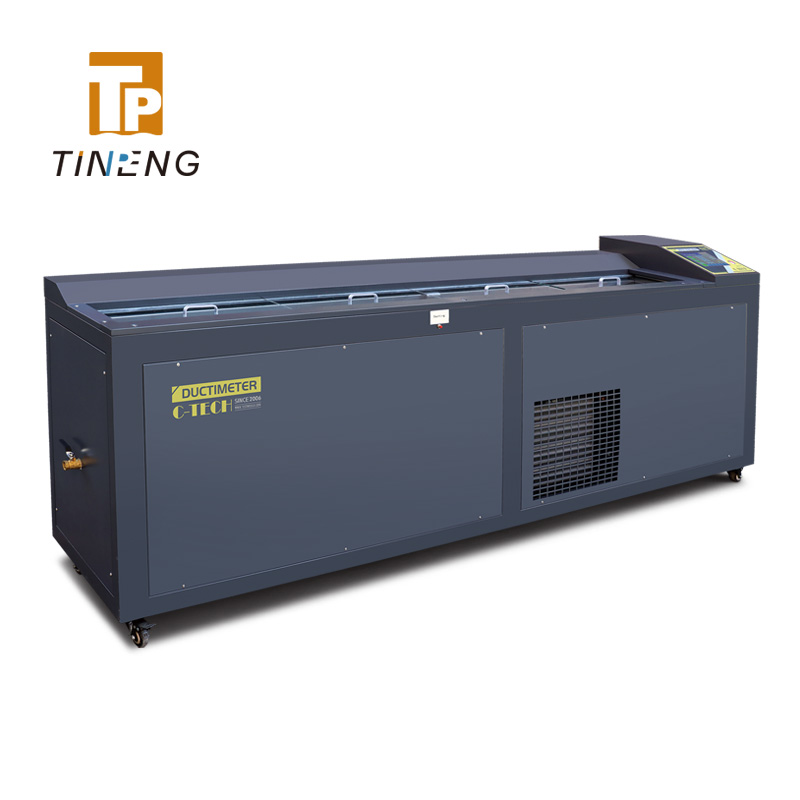

TD-508C/TD-508D

Test the length of asphaltum when asphaltum is drawn to break under certain temperature and speed. The machine can perform three simultaneous tests. The bath is fitted with an immersion heater in order to obtain, in normal conditions, the 50°C test temperature using, as stabilising element, the cold water circulation in the stainless steel interspace.

TECHNICAL PARAMETERS

Power supply: AC 220 V (-5%~+10%), 50 Hz
Measurement range: TD-508C:1.5 m (±10mm), TD-508D:2.0 m (±10mm)
Heating type: by an electric heater
Heating power: TD-508C: 3000 W, TD-508D: 3200 W
Bath circulation: by a magnetic circulation pump
Temperature controllin range: 5 ~ 4 9 ℃; digitally displayed
Temperature controlling accuracy: ±0.1℃
Dragging speed: two grades, 10 mm/min and 50 mm/min
Measurement accuracy: ±1 mm
Ductility display: Controlled by microprocessor, digitally displayed after data processing
Refrigeration type: by a compressor, TD-508C: input power is 950 W, TD-508D: input power is 1200 W
Ambient temperature: -10~+35℃
Relative humidity: ≤85%
Total power consumption: TD-508C: not more than 4100 W, TD-508D: not more than 4500 W

Ductility mould
Made of brass, accurately machined to the specified dimensions. These need to be ordered separately.

84-B0141B
84-B0141
