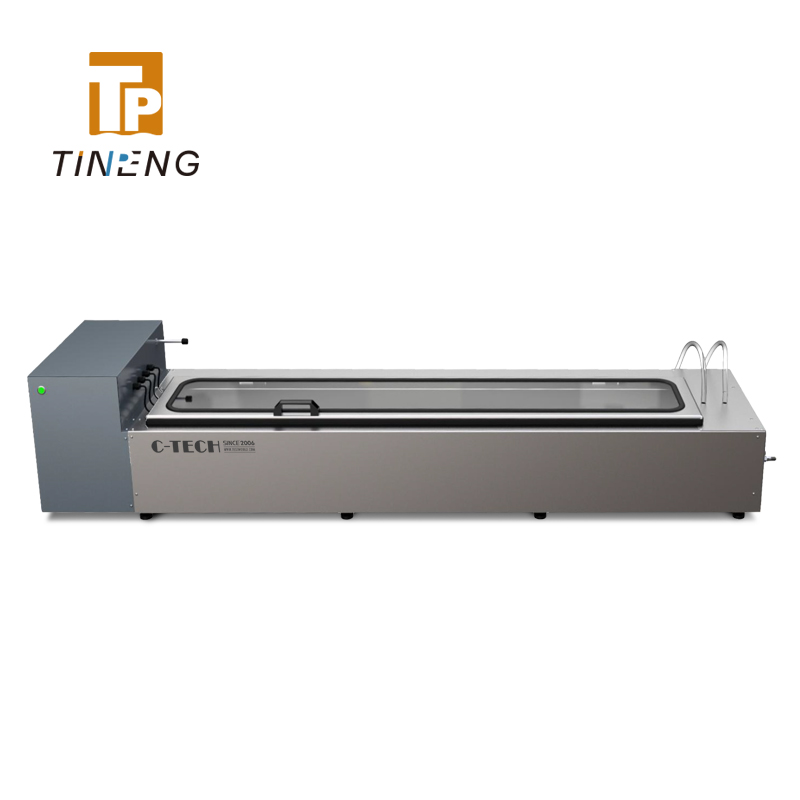

TP-0666

TP-0666 is used to determine the cohesive energy and peak force ratio of modified bitumen and polymer-modified emulsified asphalt, evaluating the cohesive properties of relevant bitumens. Cohesive energy and peak force ratio are key indicators for evaluating polymer-modified bitumen in the EU and US respectively, closely related to modifier content. The force ductility test effectively characterizes the cohesive performance of polymer-modified bitumen. The unit can simultaneously conduct four-channel tension testing. It employs a specialized water circulation system, with the refrigeration unit detachable and connected via flexible hoses. This design minimizes the impact of refrigeration unit vibration and water flow on test results.



Get Wholesale Price
Share:

TP-0666 is used to determine the cohesive energy and peak force ratio of modified bitumen and polymer-modified emulsified asphalt, evaluating the cohesive properties of relevant bitumens. Cohesive energy and peak force ratio are key indicators for evaluating polymer-modified bitumen in the EU and US respectively, closely related to modifier content. The force ductility test effectively characterizes the cohesive performance of polymer-modified bitumen. The unit can simultaneously conduct four-channel tension testing. It employs a specialized water circulation system, with the refrigeration unit detachable and connected via flexible hoses. This design minimizes the impact of refrigeration unit vibration and water flow on test results.

Features
· Performs both ductility tests and force ductility tests with dual functionality, reducing testing costs.
· Constructed from high-grade stainless steel with specialized surface treatment for durability and aesthetics.
· Employs high-precision, high-stability tension load cells with a high protection rating.

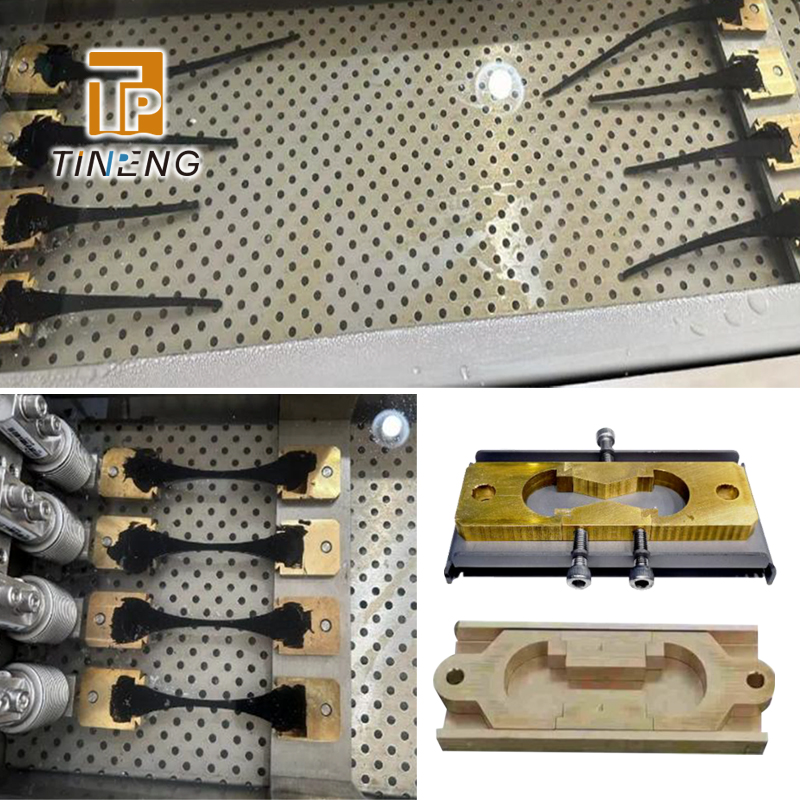

· Tests four specimens simultaneously in a single run.
· Features self-developed control system and software with a user-friendly interface for simplified operation.
· For force ductility tests, software automatically calculates results including peak force ratio and cohesive energy.

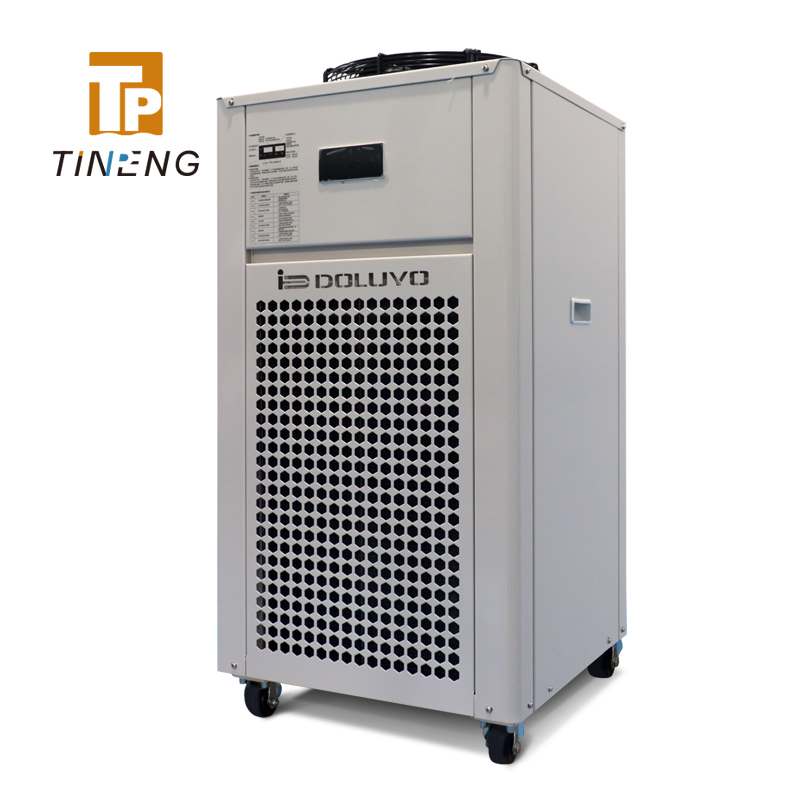

· Incorporates a split-type design separating the main unit from the refrigeration unit to eliminate vibration during testing.
· Utilizes a specially engineered water circulation structure to minimize water flow interference with test results.
· Compact structure allows placement on laboratory workbenches.



-

TECHNICAL PARAMETERS

Tension load cell range490 N
Tension load cell accuracy
±0.1 N
Displacement transducer range: 1500 mm
Displacement transducer accuracy: ±1 mm
Temperature sensor range: -50°C ~ 200°C
Temperature sensor accuracy: ±0.1°C
Specimen capacity: 4
Tensile speed:50 mm/min(adjustable)
Tensile stroke: Max 1500 mm
Power supply220 V, 50 Hz
Main unit dimensions2350 mm × 550 mm × 430 mm
Main unit weight200 kg




-
