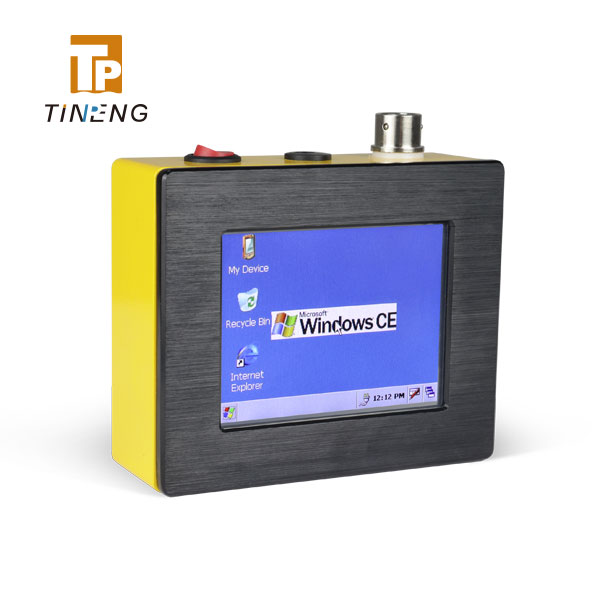

TP-102

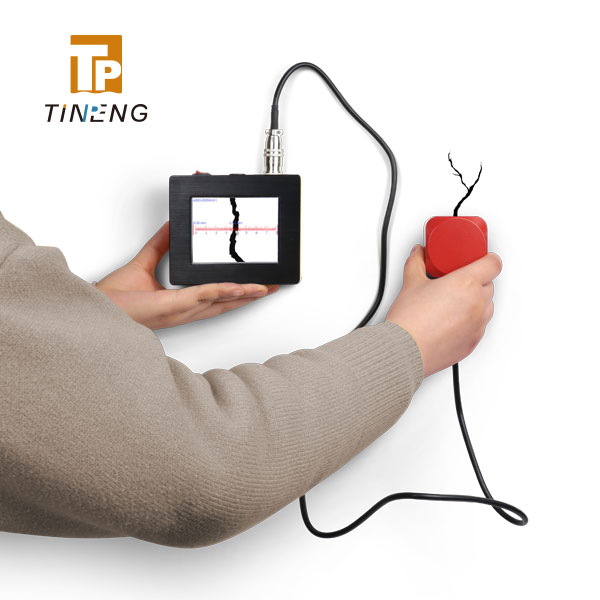

TP-102 crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width testing.
TP-102 crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width testing.
Features
·Automatically show the crack width on the screen;
·Automatically take the crack photos. (real-time image display on the screen);
·Stored photos and all data can be reviewed;

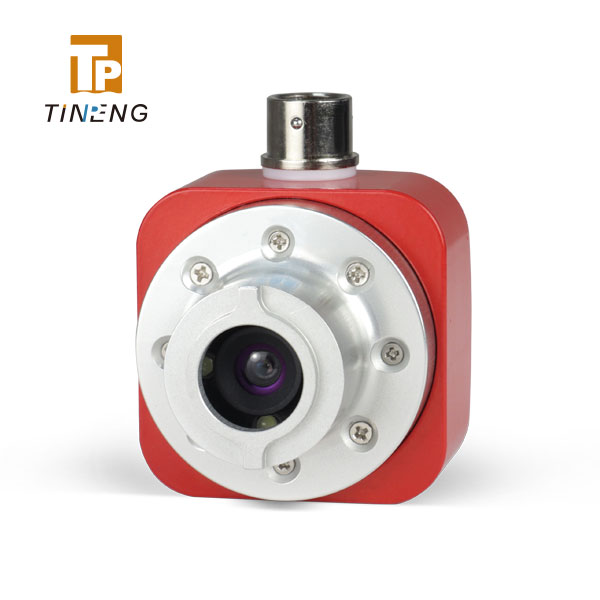

·Probe(camera)comes with lighting fixtures can work in dim light;
·Simple alignment of cracks can be automatically reading, without any set up, easy operation;
·Crack photo as a standard BMP format, directly save to any U-disk/SD card;
·The camera function could catch all test information in time including crack images, test value and zoom images;
·Host and the probe share one rechargeable lithium battery;
TECHNICAL PARAMETERS
The maximum detection range: 0-8mm
Accuracy: better than 0.01 mm
Magnification: 40times
The Operating Temperature: -20 ~ 60 ° C
Host Interface: standard USB
The storage: can be stored for more than 3000 photos (SD Card is free to expand);
Image storage format: BMP format 24 bit color 32Qx240
Power supply: lithium battery, standby time:18 hours
Size: Host 113x70x16.5mm
Probe: 48x56x58mm
Weight: host 100 grams,100 grams of the probe
