Hydraulic compression testing machine SYE-300/SYE-1000/SYE-2000BS

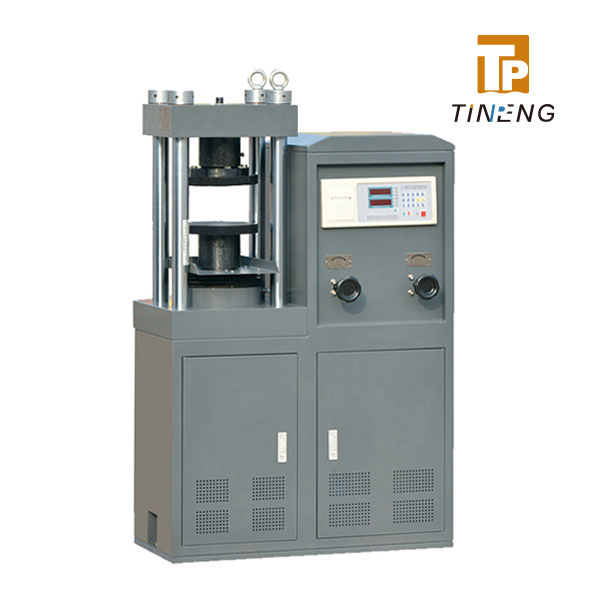

compression testing machine SYE-300
compression testing machine SYE-1000
compression testing machine SYE-2000BS

SYE-300/SYE-1000/SYE-2000BS

SYE Series hydraulic compression testing machine is used for the compression test of concrete and other construction materials, manual load, digital display the value of pressure and ratio of loading. It can save and print the test result directly by the controller. It also can be equipped with computer to show the load curve and process the date.









Get Wholesale Price
Category:
Share:

SYE Series hydraulic compression testing machine is used for the compression test of concrete and other construction materials, manual load, digital display the value of pressure and ratio of loading. It can save and print the test result directly by the controller. It also can be equipped with computer to show the load curve and process the date.




C1: Top bar
C2: Compression plate
C3: Standard column
C4: Flexture jig
C5: Hardware components
C6: Digital display unit
C7: Oil return valve
C8: Oil filling valve

TECHNICAL PARAMETERS

SYE-300

Feature: Manual load
Max load capacity: 300kN
Compression space: 210mm
Piston stroke: 80mm
Size of upper compression plate: Dia. 170mm
Size of lower compression plate: Dia. 170mm
Power: 380V(200V optional), 50Hz(60Hz optional), 0.75kW
Dimensions(load frame): 850*400*1350 mm
Weight: 400kg

SYE-1000

Feature: Four standard columns
Max load capacity: 1000kN
Compression space: 280mm
Piston stroke: 150mm
Size of upper compression plate: Dia. 230mm
Size of lower compression plate: Dia. 230mm
Power: 380V(200V optional), 50Hz(60Hz optional), 0.75kW
Dimensions(load frame): 880*420*1350 mm
Weight: 600kg

SYE-2000BS

Feature: Manual load, protect cover
Max load capacity: 2000kN
Compression space: 330mm
Piston stroke: 120mm
Size of upper compression plate: Dia. 300mm
Size of lower compression plate: Dia. 300mm
Power: 380V(200V optional), 50Hz(60Hz optional), 0.75kW
Dimensions(load frame): 900*400*1250 mm
Weight: 900kg
