TPLXBP-5

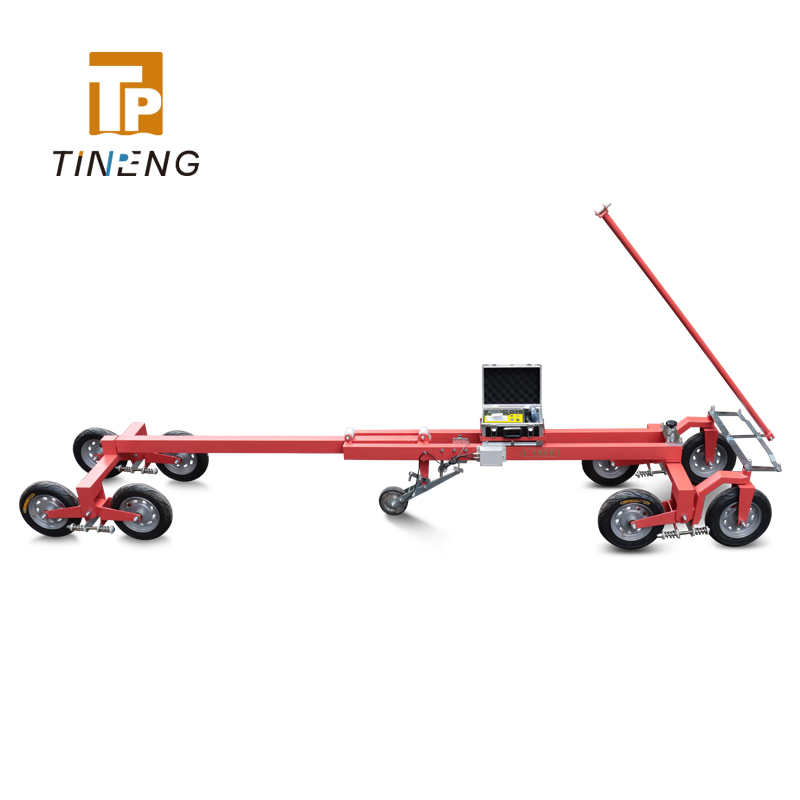

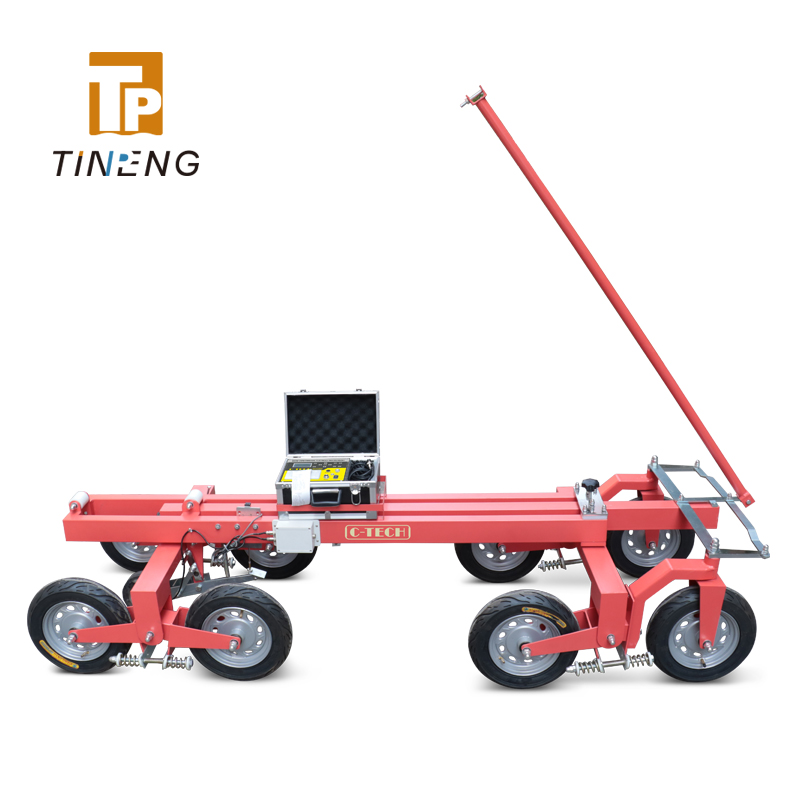

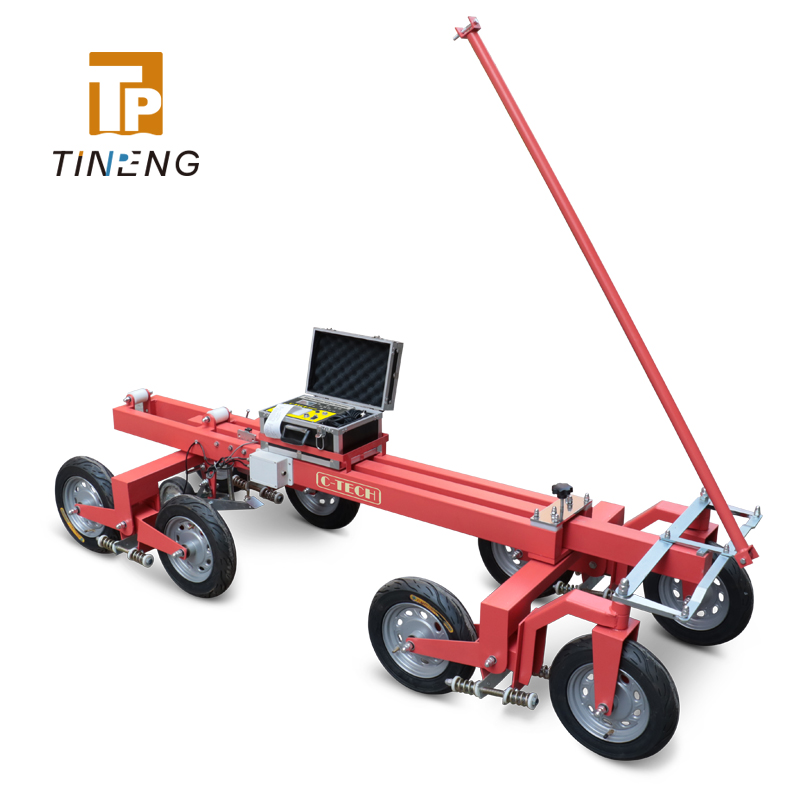

This equipment is a professional pavement quality assessment instrument used to measure the standard deviation of longitudinal relative elevation on road surfaces for evaluating pavement smoothness. It is suitable for construction inspection, completion acceptance, and road maintenance of highways, urban roads, plazas, airport runways, and other pavements. It also provides reliable pavement analysis data for educational institutions, design units, and research organizations. Not applicable for detecting pavements with severe potholes or existing damage.

FEATURES
◎It supports diverse applications including highways, urban roads, plazas, airport runways, research and education projects.
◎Its intelligent measurement system automates sensor zeroing, processes data via an ARM32 chip, and tracks stake/mileage increments.

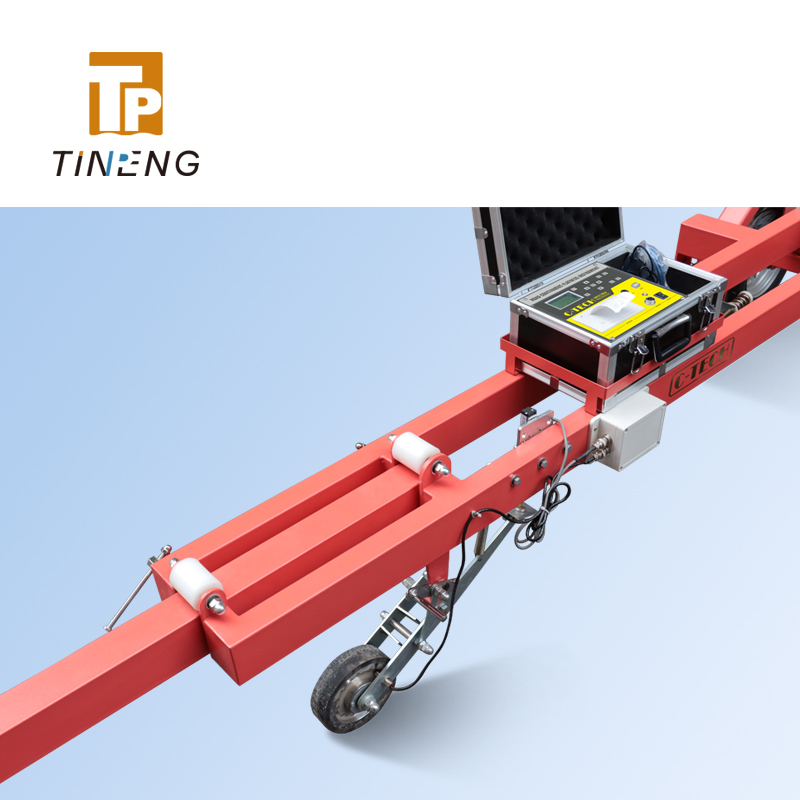

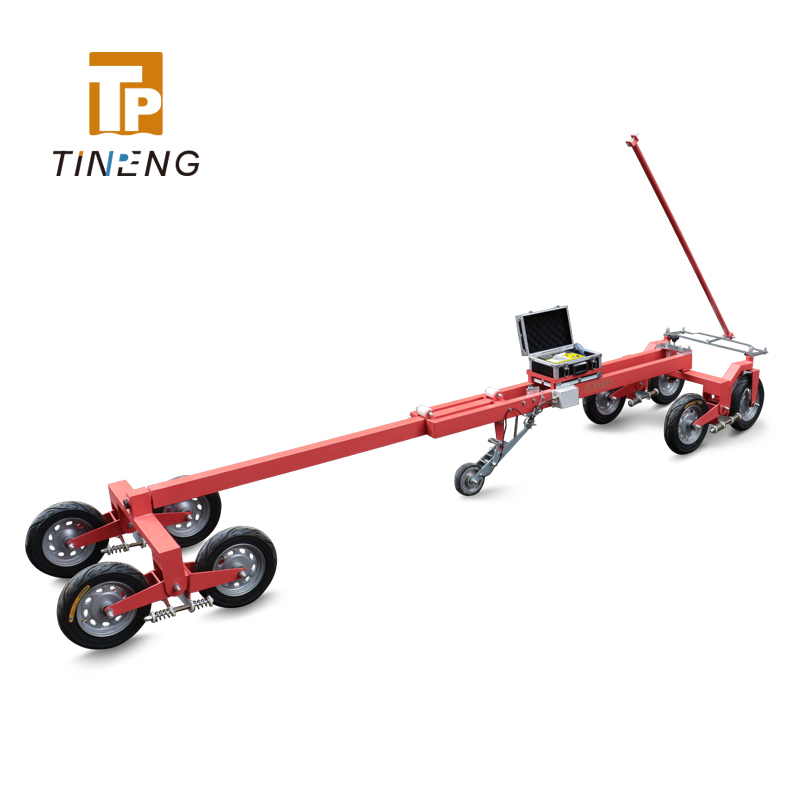

◎The telescopic frame and liftable measurement wheel enable compact portability for storage and transport.
◎Data output flexibility is provided through instant thermal printing and Bluetooth connectivity for Android apps.
◎Energy-efficient components deliver over 20 hours of continuous operation on a single charge.
◎User maintenance is simplified with guided calibration (20mm block) and preset parameters for efficient operation.

TECHNICAL PARAMETERS

Sampling interval: 0.05m or 0.1m
Sampling error: <0.04mm
Error in length of measured road: <1%
Out-of-tolerance range: 1-15mm
Minimum turning radius: 5m
Testing speed: 6-8km/h, the maximum speed is no more than 12km/h
Transport speed: 25km/h
Battery: 12V7AH gel maintenance-free battery
Working conditions: -10℃ - +60℃
