48-B0192/48-B0191/48-B0190

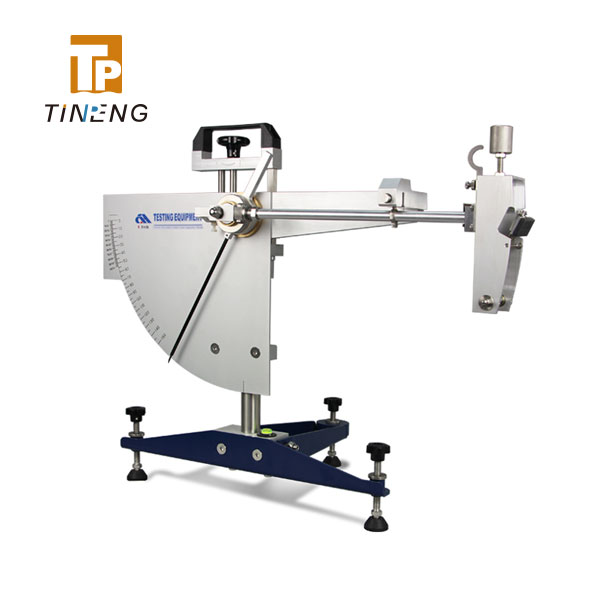

The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site.
STANDARD
- BS EN 1097-8, 13036-4:2003
- AS/NZS 4586
- BS 6077 Pt1, 7044, 7188, 8204, 7976, 812 Pt. 144
- ASTM E303
Get Wholesale Price
The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site.
Applications
• Road surface testing
• Testing of new road surface materials under development
• Testing of aggregates in the PSV (polished stone value) test
• Testing of floors and pedestrian walkways
• Flooring materials product development
• Accident investigations, both traffi c and pedestrian
• Litigation investigations
Features
• Designed for laboratory and in situ road surface testing
• Dispatched calibrated to ASTM E-303
• Low friction arm, and lightweight pointer
• Comes with integral 'F' scale for use with small slider set for 76mm slide length. (PSV test)
• Repeatable and reproducible
• Supplied with robust carrying case
TECHNICAL PARAMETERS
Rocker weight: 1500±30 g
Distance between rocking centre and center of gravity: 410±5 mm
Positive static pressure on pavement: 22.2±0.5 kN
Weight of rubber slider: 16g
Package: Aluminum alloy
Air transport case
48-B0192 STANDARD DELIVERY
48-B0192 Portable skid resistance and friction tester, adjustable in height
B0192/1 Sturdy case with dense foam inserts giving excellent protection
B0192/2 F' Scale Built in, for use with small slider set for 76mm slide length. (PSV test)
B0192/3 Perspex setting gauge 126 mm
B0192/4 TRRL3.0, Slider 55 Road surfaces. Customer can choose either type.
B0192/5 Brush, For removing unwanted dirt or grit from area to be tested
B0192/6 C Spanner, For attaching and releasing arm to rotating head
B0192/7 17mm Spanner For fitting rear foot
B0192/8 Water spray bottle, For wetting surface to be tested
B0192/9 Feet pads, For placing under levelling feet when on soft ground
B0192/10 Operating instructions, A guide to road, floor and PSV testing
B0192/11 Tool set
B0192/12 Calibration Certificate Despatched
OPTIONS: (need to be ordered seperately)
B0192/13 Metal base plate without fixing device
B0192/14 TRRL 1.250, Slider 55 PSV Test
B0192/15 FOUR S, Slider 96 Internal Floors
B0192/16 Fixing device to base for blocks and nature stones(EN1341,1342)
B0192/17 Fixing device to base for laboratory polished test
