JA/XY series

Electronic balance is an instrument used in the accurate measurement of weight of materials. Electronic balance is asignificant instrument for the laboratories for precise measurement of chemicals which are used in various experiments. Laboratory electronic balance provides digital result of measurement.

TECHNICAL PARAMETERS

Display: LCD(Backlight)
Windshield size: 240x190x265mm
Dimensions: 340x215x350mm

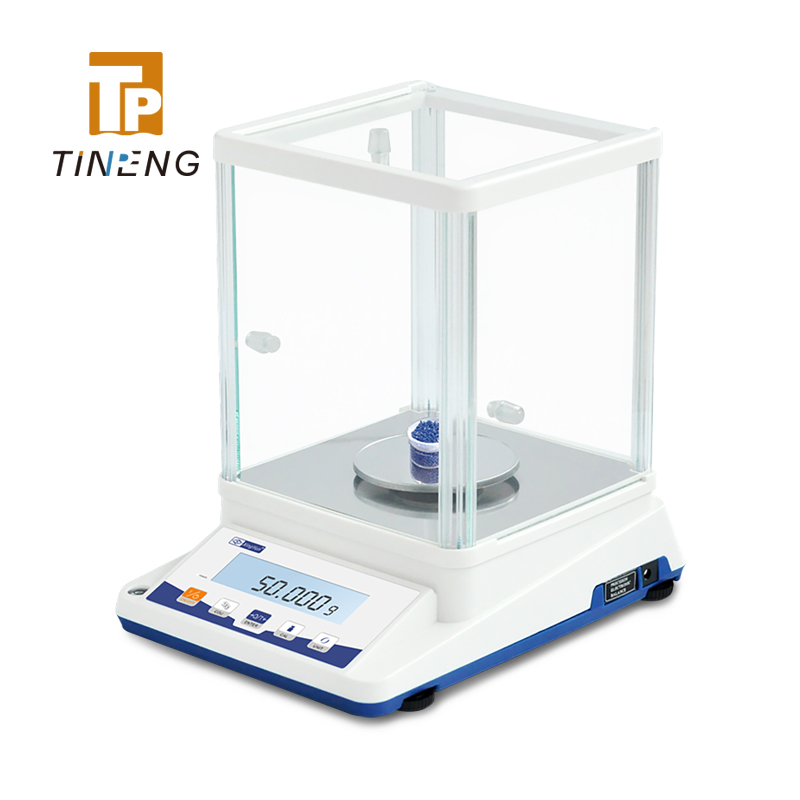

JA203 Capacity 200g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA303 Capacity 300g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA503 Capacity 500g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA603 Capacity 600g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA1003 Capacity 1000g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA1203 Capacity 1200g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA203N Capacity 200g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA303N Capacity 300g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA503N Capacity 500g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm
JA603N Capacity 600g, Readability 0.001g, Minimum weighable 0.004g, Repeatability ±0.002g, Pan dimension 80mm

Display: LCD(Backlight)
Power supply: AC/DC Power Supply
Windshield size: 175x180x205mm
Dimensions: 270x200x270mm

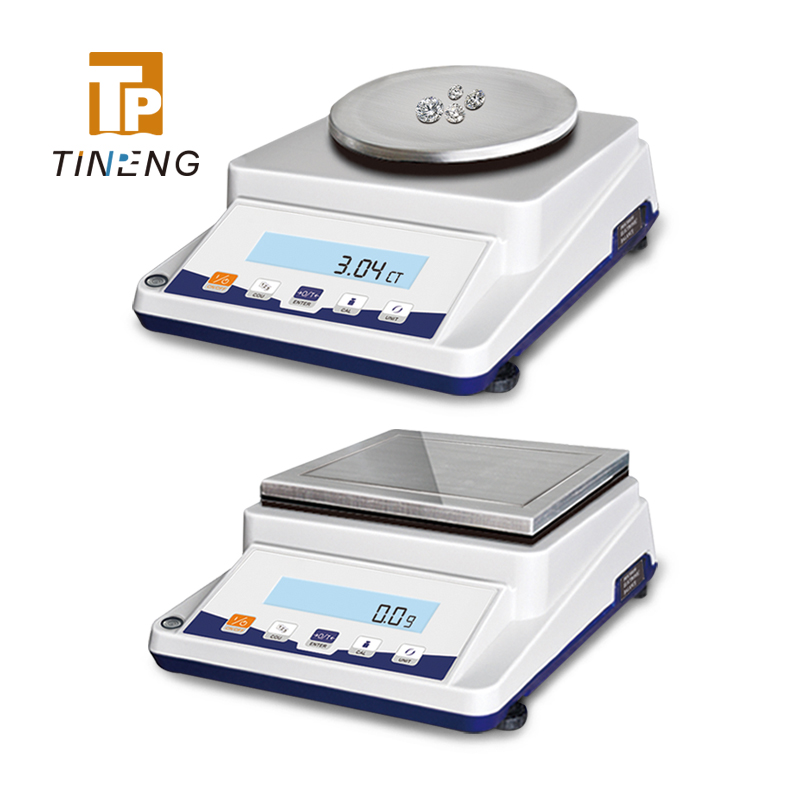

JA103P Capacity 110g, Readability 0.001g, Minimum weighable 0.001g-0.004g, Repeatability ±0.002g, Pan dimension 90mm
JA203P Capacity 210g, Readability 0.001g, Minimum weighable 0.001g-0.004g, Repeatability ±0.002g, Pan dimension 90mm
JA303P Capacity 310g, Readability 0.001g, Minimum weighable 0.001g-0.004g, Repeatability ±0.002g, Pan dimension 90mm
JA103PL Capacity 110g/610g, Readability 0.001g/0.1g, Minimum weighable 1d-4d, Repeatability ±2d, Pan dimension 90mm/110mm

Display: LCD(Backlight)
Power supply: AC/DC Power Supply

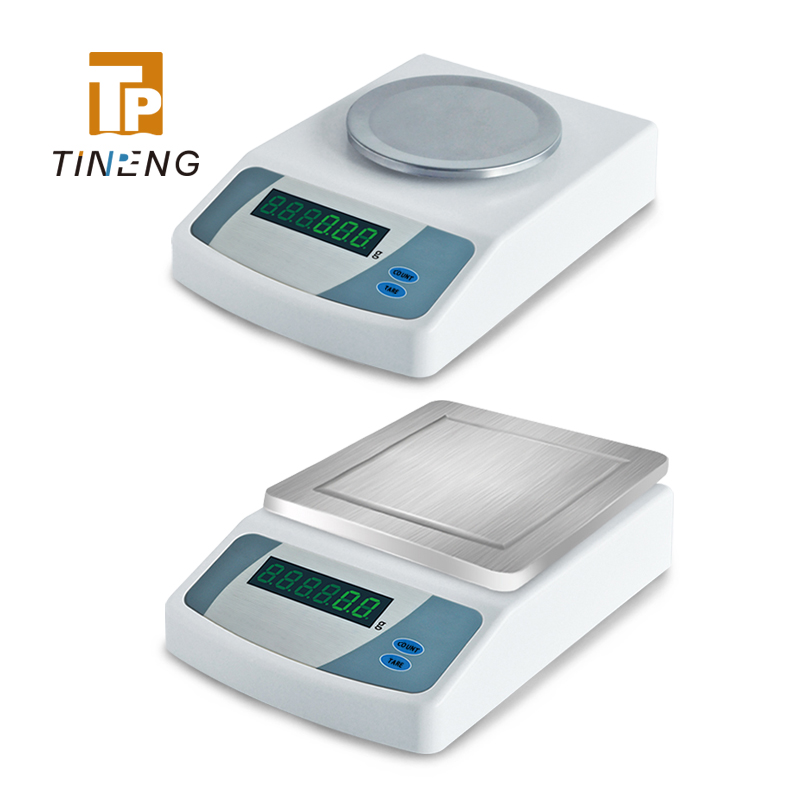

XY100C Capacity 110g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY200C Capacity 210g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY300C Capacity 310g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY500C Capacity 510g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY600C Capacity 610g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY1000C Capacity 1100g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY2000C Capacity 2100g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY3000C Capacity 3100g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY2000BF Capacity 2100g, Readability 0.1g, Repeatability ±0.02g, Pan dimension 160x160mm
XY3000BF Capacity 3100g, Readability 0.1g, Repeatability ±0.02g, Pan dimension 160x160mm
XY5000BF Capacity 5100g, Readability 0.1g, Repeatability ±0.02g, Pan dimension 160x160mm

Display: LCD(Backlight)
Power supply: AC/DC Power Supply

XY100-2C Capacity 110g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY200-2C Capacity 210g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY300-2C Capacity 310g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY500-2C Capacity 510g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY600-2C Capacity 610g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY1000-2C Capacity 1100g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY2000-2C Capacity 2100g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY3000-2C Capacity 3100g, Readability 0.01g, Repeatability ±0.02g, Pan dimension 130mm
XY2000-1BF Capacity 2100g, Readability 0.1g, Repeatability ±0.2g, Pan dimension 160x160mm
XY3000-1BF Capacity 3100g, Readability 0.1g, Repeatability ±0.2g, Pan dimension 160x160mm
XY5000-1BF Capacity 5100g, Readability 0.01g, Repeatability ±0.2g, Pan dimension 160x160mm
XY6000-1BF Capacity 6100g, Readability 0.01g, Repeatability ±0.2g, Pan dimension 160x160mm
XY10K-1BF Capacity10000g, Readability 0.01g, Repeatability ±0.2g, Pan dimension 160x160mm

Display: LCD(Backlight)
Power supply: AC/DC Power Supply

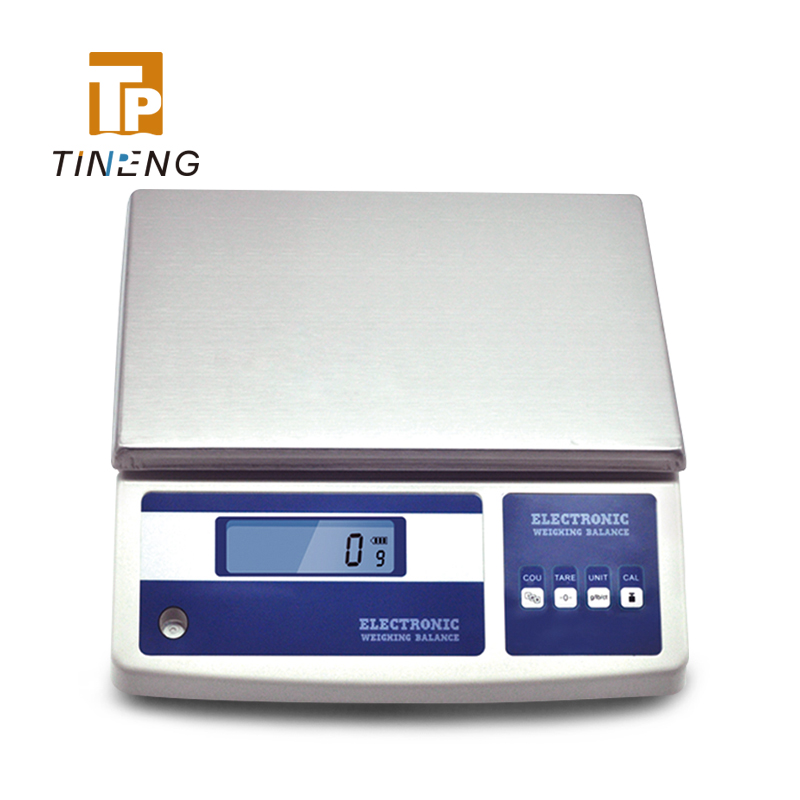

XY10MA Capacity 11kg, Readability 1g, Repeatability ±2g, Pan dimension 315x230mm
XY15MA Capacity 16kg, Readability 1g, Repeatability ±2g, Pan dimension 315x230mm
XY20MA Capacity 21kg, Readability 1g, Repeatability ±2g, Pan dimension 315x230mm
XY30MA Capacity 31kg, Readability 1g, Repeatability ±2g, Pan dimension 315x230mm
XY5MB Capacity 5.1kg, Readability 0.1g, Repeatability ±0.2g, Pan dimension 315x230mm
XY10MB Capacity 11kg, Readability 0.1g, Repeatability ±0.2g, Pan dimension 315x230mm
XY15MB Capacity 16kg, Readability 0.1g, Repeatability ±0.2g, Pan dimension 315x230m
XY20MB Capacity 21kg, Readability 0.1g, Repeatability ±0.2g, Pan dimension 315x230m
XY25MB Capacity 26kg, Readability 0.1g, Repeatability ±0.2g, Pan dimension 315x230mm
XY28MB Capacity 28kg, Readability 0.1g, Repeatability ±0.2g, Pan dimension 315x230mm

Display: LCD(Backlight)
Power supply: AC/DC Power Supply

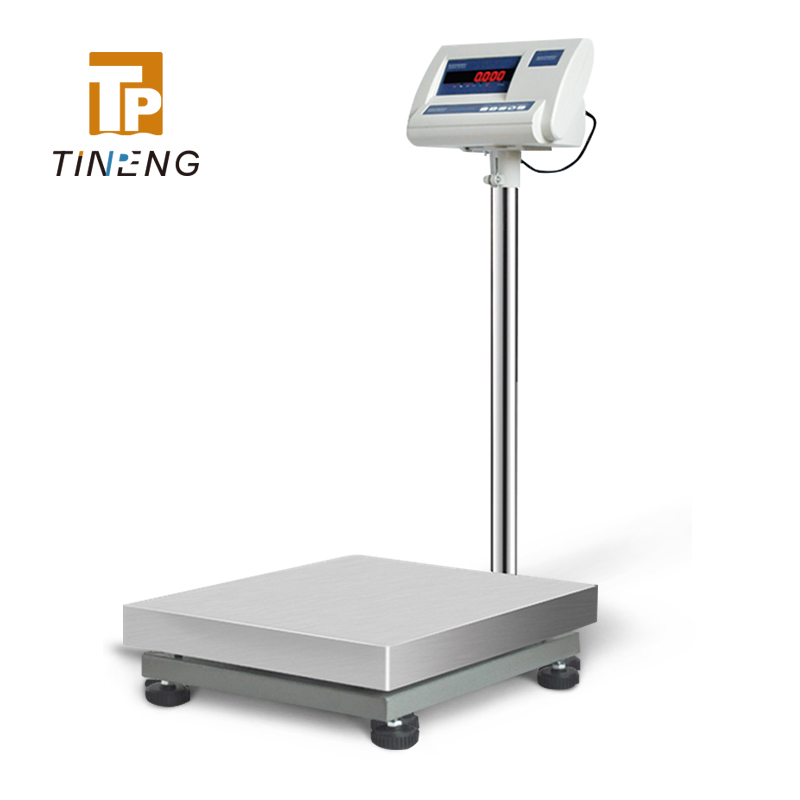

XY60E Capacity 61kg, Readability 10g, Repeatability ±20g, Pan dimension 400x500mm
XY100E Capacity 110kg, Readability 10g, Repeatability ±20g, Pan dimension 400x500mm
XY150E Capacity 160kg, Readability 10g, Repeatability ±20g, Pan dimension 400x500mm
XY200E Capacity 210kg, Readability 10g, Repeatability ±20g, Pan dimension 400x500mm
XY300E Capacity 310kg, Readability 10g, Repeatability ±20g, Pan dimension 400x500mm
XY500E Capacity 510kg, Readability 50g, Repeatability ±100g, Pan dimension 600x800mm
XY60F Capacity 61kg, Readability 1g, Repeatability ±2g, Pan dimension 400x500m
XY100F Capacity 110kg, Readability 1g, Repeatability ±2g, Pan dimension 400x500m
XY150F Capacity 160kg, Readability 1g, Repeatability ±2g, Pan dimension 400x500mm
