STC-1TF
The load frame has a built-in multi-channel data acquisition system capable of acquiring data from various sensors such as pore pressure, LVDT, and load. The control panel has an embedded 16-bit membrane keypad. The load frame can continuously apply consolidation stress of 0-3.2MPa and is equipped with 4 sets of LED status indicators to display the working status of the instrument.
APPLICATIONS
-Standard consolidation tests: graded loading consolidation test, CRS consolidation test, CRL consolidation test;
-Back pressure saturation consolidation test;
-Long-term creep consolidation test, with real-time measurement of pore pressure;
-Various consolidation tests at different temperatures;
-Tests on the thawing process of frozen soil, parameters such as the thaw settlement coefficient can be measured.
LOAD FRAME
The load frame has a built-in multi-channel data acquisition system capable of acquiring data from various sensors such as pore pressure, LVDT, and load. The control panel has an embedded 16-bit membrane keypad. The load frame can continuously apply consolidation stress of 0-3.2MPa and is equipped with 4 sets of LED status indicators to display the working status of the instrument.

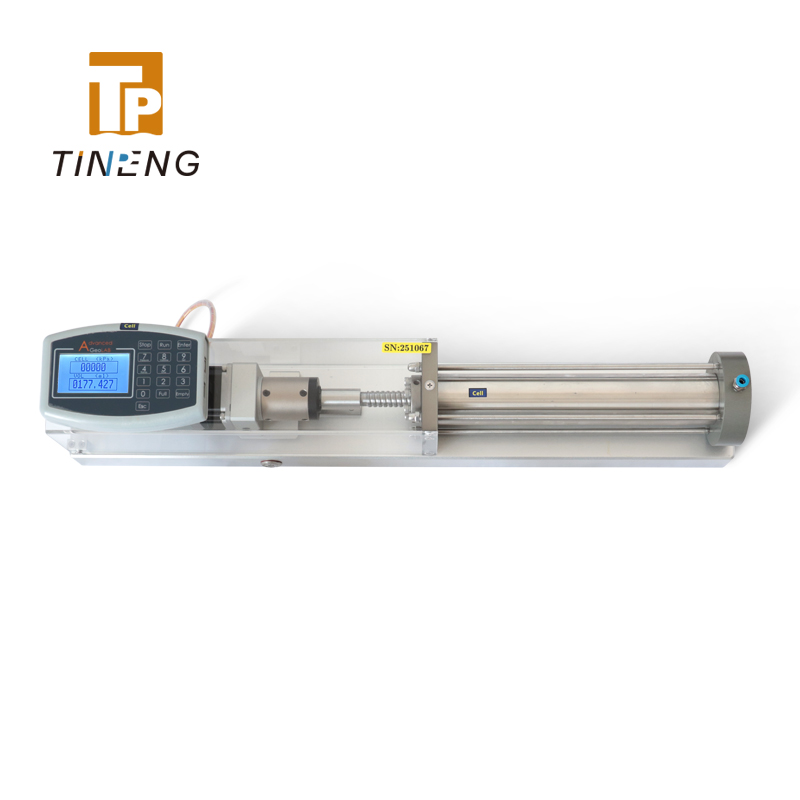

3MPA/200CC PRESSURE VOLUME CONTROLLER
-Used to apply back pressure, maximum pressure 3MPa;
-A closed-loop microprocessor controls water pressure with an accuracy of 1 kPa.
- LCD screen, resolution 240×128;
-The control panel has a built-in 20-key membrane keypad with functions including pressure control, volume control, and linear loading.
- The volume capacity is 200cc, and the volume change is measured and displayed to 1mm3 (0.001cc), with an accuracy of +/-0.01ml;
- Lightweight and small in size;
-Equipped with a USB 3.0 high-speed communication port for computer control and for collecting pressure and volume changes.
LOAD FRAME
Display:LCD screen, resolution 240×128
Shear rate:0.00001~9.99999 mm/min
Maximum axial force (load sensor):10kN, accuracy +/-0.1%F.S
Pore pressure sensor:0-3MPa, accuracy +/-0.1%F.S Consolidation stress:0-3.2MPa
FROZEN SOIL CONSOLIDATION CELL
Size:Ø61.8mm×40mm (standard) Ø50mm×25mm (optional)
Pore pressure port:√
Seepage port :√
Dimensions:Ø270×520mm
Weight:30kg
WATER BATH
Temperature control range:-20~100 C
Temperature fluctuation:+0.05 C(inner tank)
Resolution:0.01C
Inner tank dimensions:300×250×270mm
Opening:235x160mm
Pump flow rate:13L/min
Heating power:2000W
Cooling capacity (pure water at 20 C):2700W
Total power:2400W
Circulation method:Internal/external circulation
