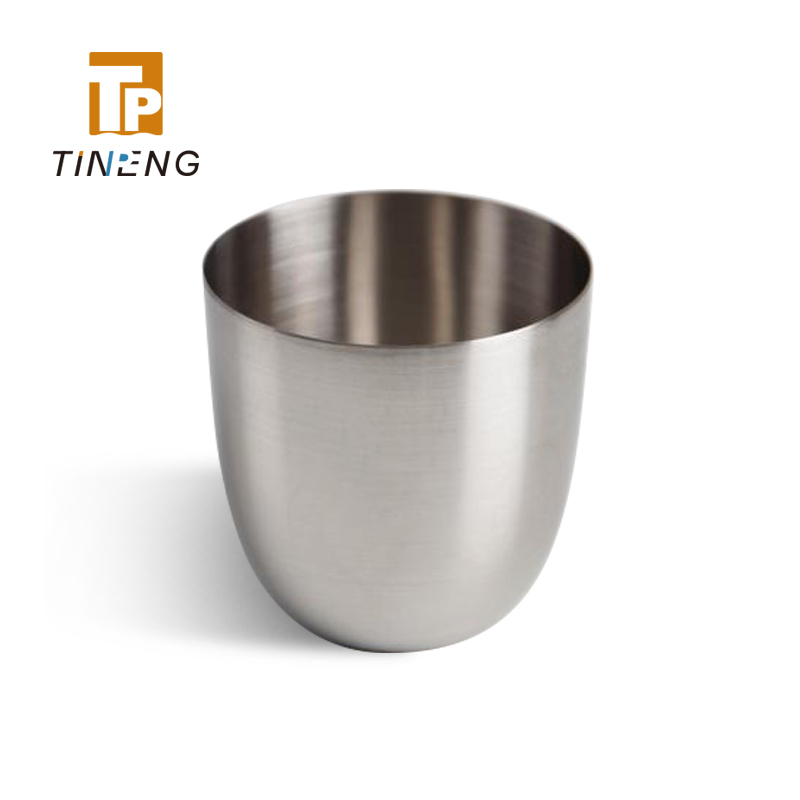

Platinum crucibles
Platinum crucibles are widely used for XRF sample preparation, wet chemistry, ash testing, Loss on Ignition (LOI) because of their high melting temperature, oxidation and corrosion resistance. We provide platinum crucibles with the platinum ≥99.95% and the specifications can be customized according to customer needs.
Platinum crucibles are widely used for XRF sample preparation, wet chemistry, ash testing, Loss on Ignition (LOI) because of their high melting temperature, oxidation and corrosion resistance. We provide platinum crucibles with the platinum ≥99.95% and the specifications can be customized according to customer needs.
TECHNICAL PARAMETERS
Capacity: 10ml, Top outer diameter: 25mm , Bottom outer diameter: 15mm, Height: 27mm, Weight: 12g
Capacity: 20ml, Top outer diameter: 32mm , Bottom outer diameter: 19mm, Height: 34mm, Weight: 23g
Capacity: 25ml, Top outer diameter: 34mm , Bottom outer diameter: 20mm, Height: 38mm, Weight: 25g
Capacity: 30ml, Top outer diameter: 36mm , Bottom outer diameter: 22mm, Height: 40mm, Weight: 31g
Capacity: 40ml, Top outer diameter: 41mm , Bottom outer diameter: 25mm, Height: 45mm, Weight: 41g
Capacity: 50ml, Top outer diameter: 44mm , Bottom outer diameter: 27mm, Height: 47mm, Weight: 50g
Capacity: 80ml, Top outer diameter: 50mm , Bottom outer diameter: 32mm, Height: 55mm, Weight: 80g
Capacity: 100ml, Top outer diameter: 55mm , Bottom outer diameter: 38mm, Height: 60mm, Weight: 100g
Capacity: 200ml, Top outer diameter: 68mm , Bottom outer diameter: 50mm, Height: 82mm, Weight: 200g
Capacity: 250ml, Top outer diameter: 75mm , Bottom outer diameter: 52mm, Height: 90mm, Weight: 250g
