JC-60/JC-100/JC-125

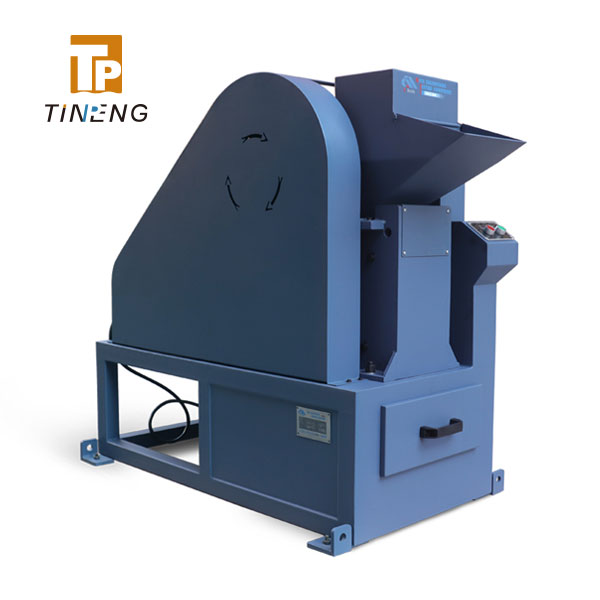

Two jaws of manganese steel are provided in this laboratory Jaw Crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward strokes with a rocking action exerts pressure on the coarser material, yet permits the finished material to pass through the jaws.
Two jaws of manganese steel are provided in this laboratory Jaw Crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward strokes with a rocking action exerts pressure on the coarser material, yet permits the finished material to pass through the jaws.
TECHNICAL PARAMETERS
JC-60
Opening(mm): 100×60
Feeding size(mm): ≤50
Final fineness(mm): 5-15
Rotation speed(rpm): 600
Throughput(kg/h): 45-550
Power(kw): 1.5
Weight(kg): 180
JC-100
Opening(mm): 100×150
Feeding size(mm): ≤80
Final fineness(mm): 4-25
Rotation speed(rpm): 320
Throughput(kg/h): 480-1800
Power(kw): 3
Weight(kg): 370
JC-125
Opening(mm): 125×150
Feeding size(mm): ≤100
Final fineness(mm): < 5(100%)
Rotation speed(rpm): 285
Throughput(kg/h): 500-3000
Power(kw): 4
Weight(kg): 450
