34-T009 series
Manufactured from high quality, longlasting material and with regular maintenance will give years of satisfactory performance.
Manufactured from high quality, longlasting material and with regular maintenance will give years of satisfactory performance.
ASTM STANDARD
34-T0090 CBR mould complete with collar and perforated base plate. Plated steel, 6 in. (152.4mm) dia. x 7 in. (177.8mm) body height
34-T0091 Spacer disc with "T" handle. 515/16 in. dia. (150.8 mm) x 2.416 in. (61.4 mm) high
34-T0094 Annular surcharge weight, 2.27 kg
34-T0095 Slotted surcharge weight, 2.27 kg
34-T0098 Cutting edge
34-T0097 Solid CBR base
34-T0099 Straight edge. 3x30x300 mm

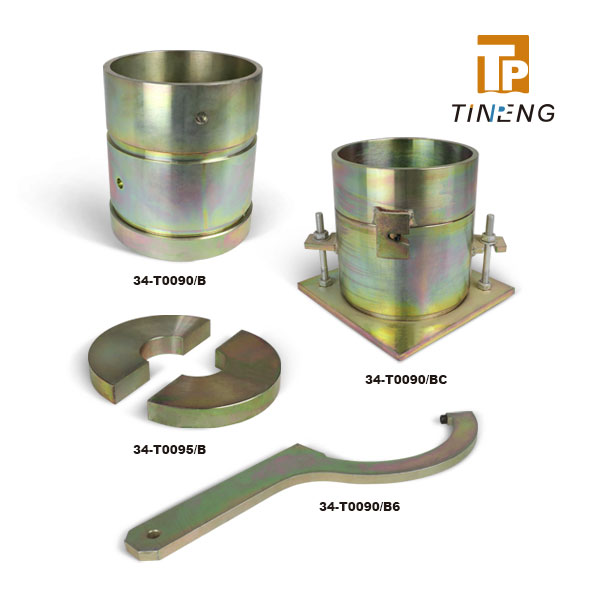

BRITISH STANDARD
34-T0090/B CBR mould body with base plate, made from plated steel threaded on both ends. 152mm ID x 127mm high, 50mm high collar
34-T0090/BC CBR mould with three plugs collar
34-T0090/B6 "C" spanner. To mount and to dismount the collar from the mould body, 1kg
34-T0095/B Split surcharge weight (2 kg, 2.27 kg selectable)

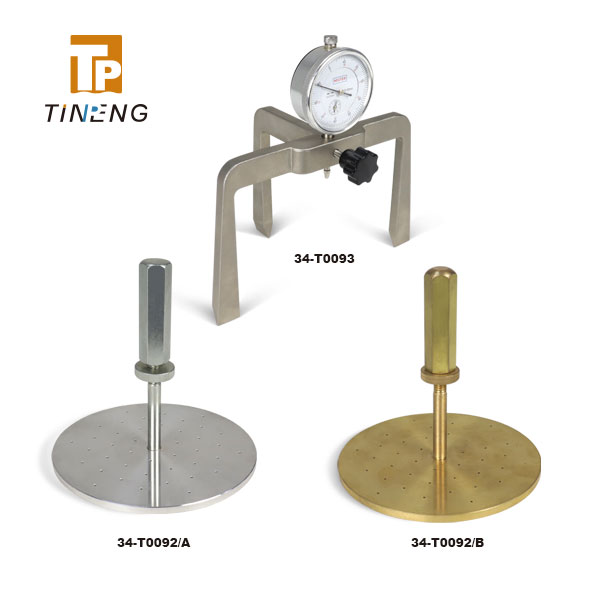

EXPANSION (SWELL) TEST APPARATUS
34-T0093 Dial gauge tripod
34-T0092/A Aluminium swell plate
34-T0092/B Brass swell plate
