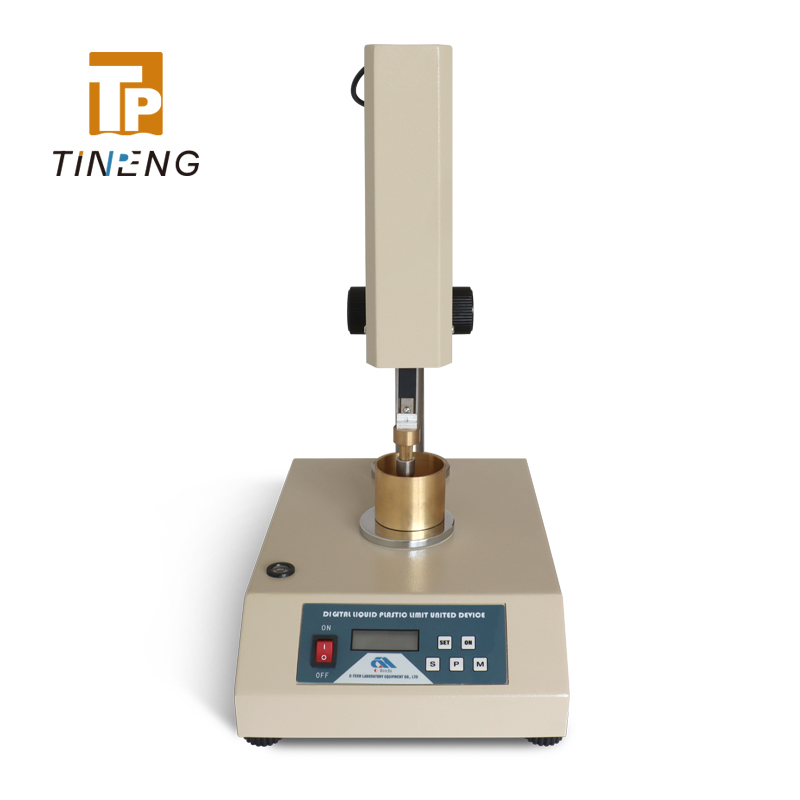

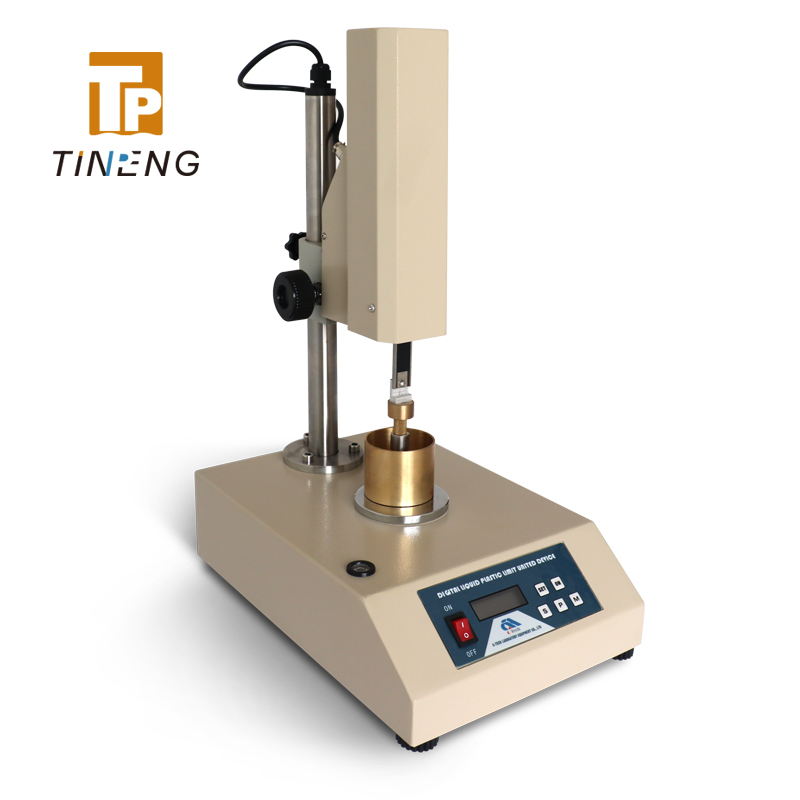

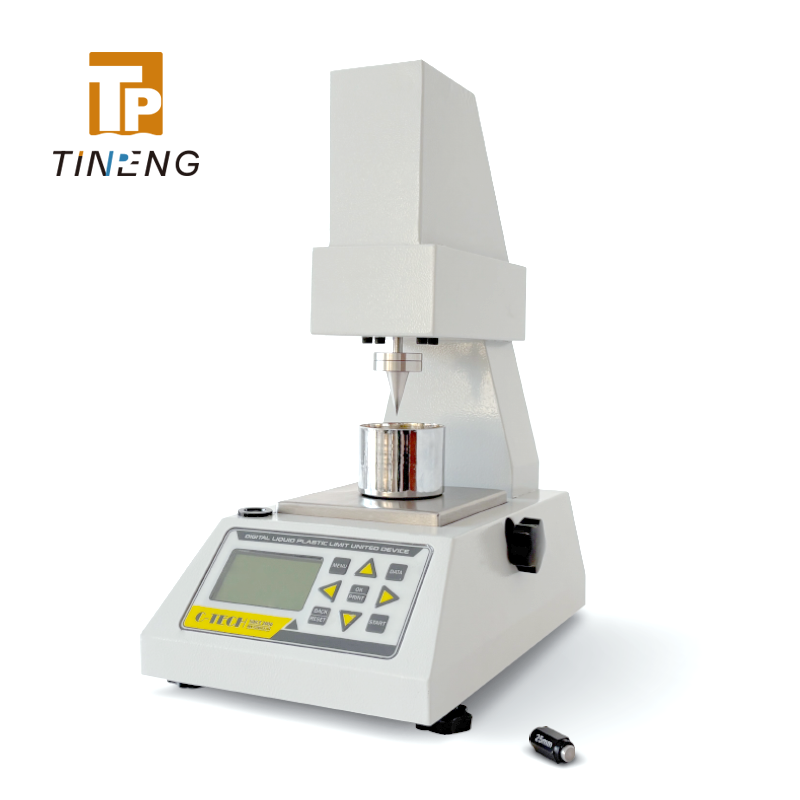

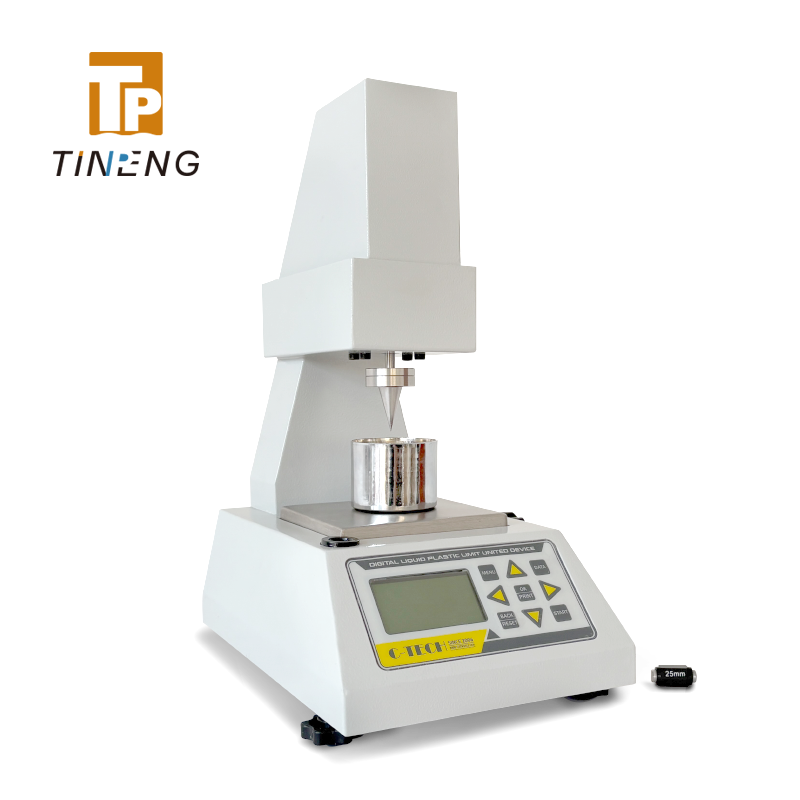

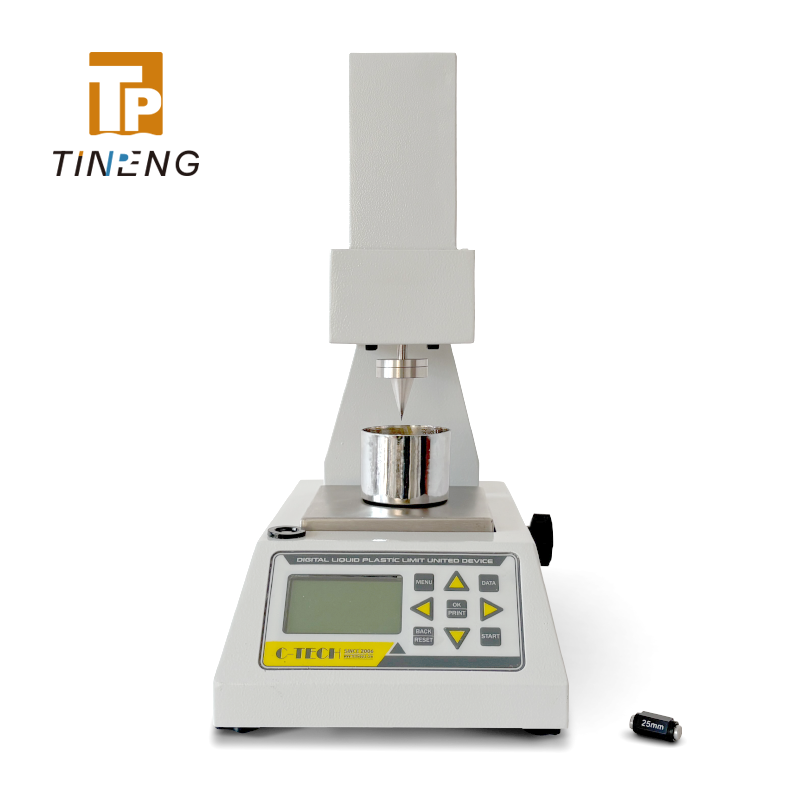

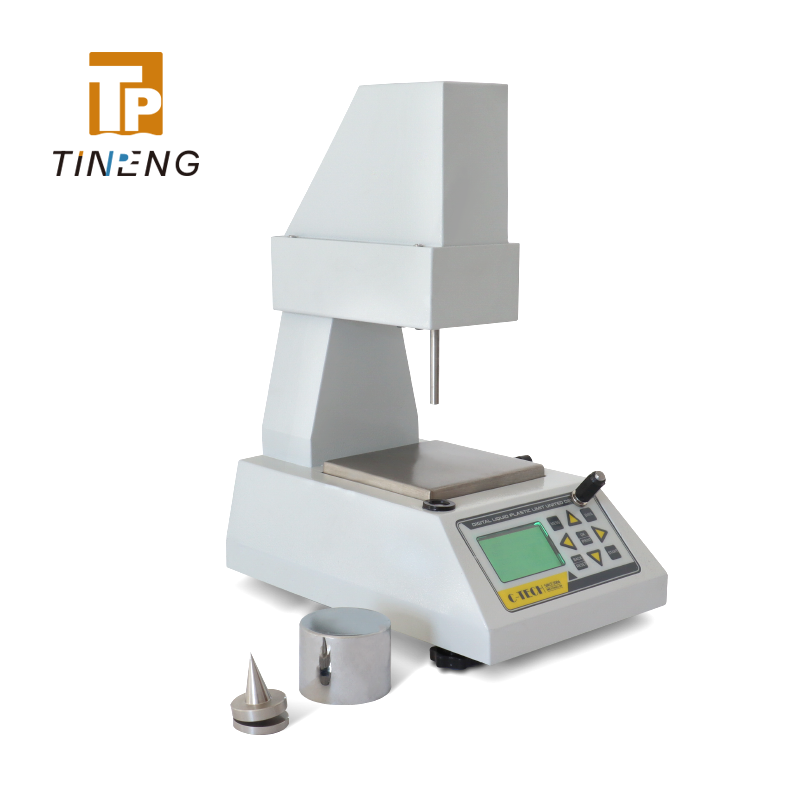

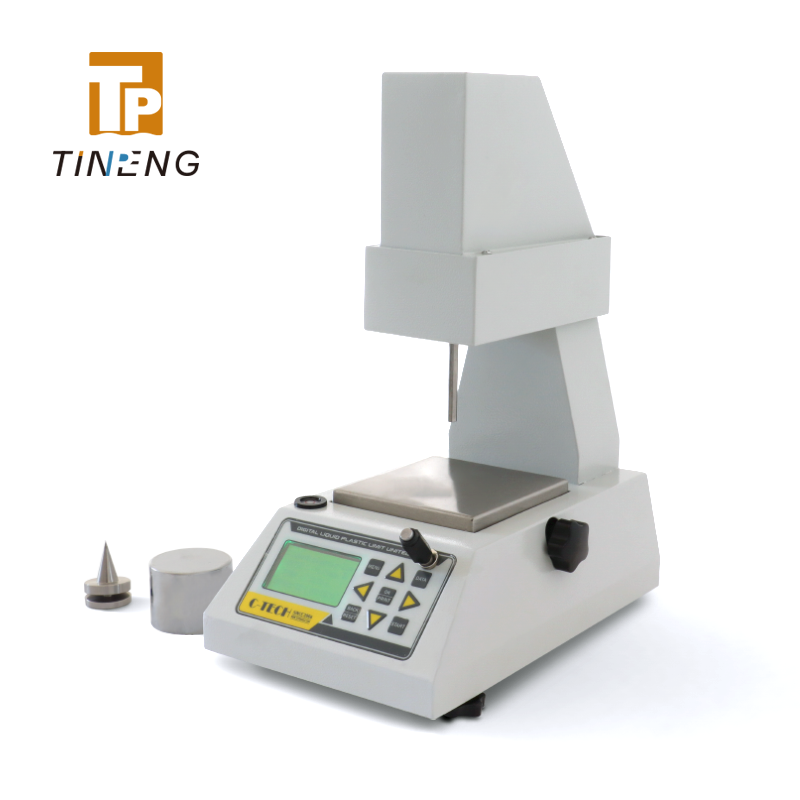

DLP-100B
The equipment is used to determine liquid and plastic limits of soil, thus to provide reliable data to classify soil types, calculate natural consistency and plasticity index.
Digital display technology is adopted for this machine and automatical measurement can be performed.
The equipment is used to determine liquid and plastic limits of soil, thus to provide reliable data to classify soil types, calculate natural consistency and plasticity index.
Digital display technology is adopted for this machine and automatical measurement can be performed.
TECHNICAL PARAMETERS
Max. measuring range: 40mm
Resolution: 0.01mm
Nonlinear error: 0.05mm
Cone weight: 76g+-0.1g; 100g+-0.1g
Cone angle: 30°+-0.2°
Sample cup: internal dia. 50 x 40mm
Working voltage: 200V+/-10% 50HZ
Dimension : 300x230x420mm
Weight: 5.3kg
