BC series

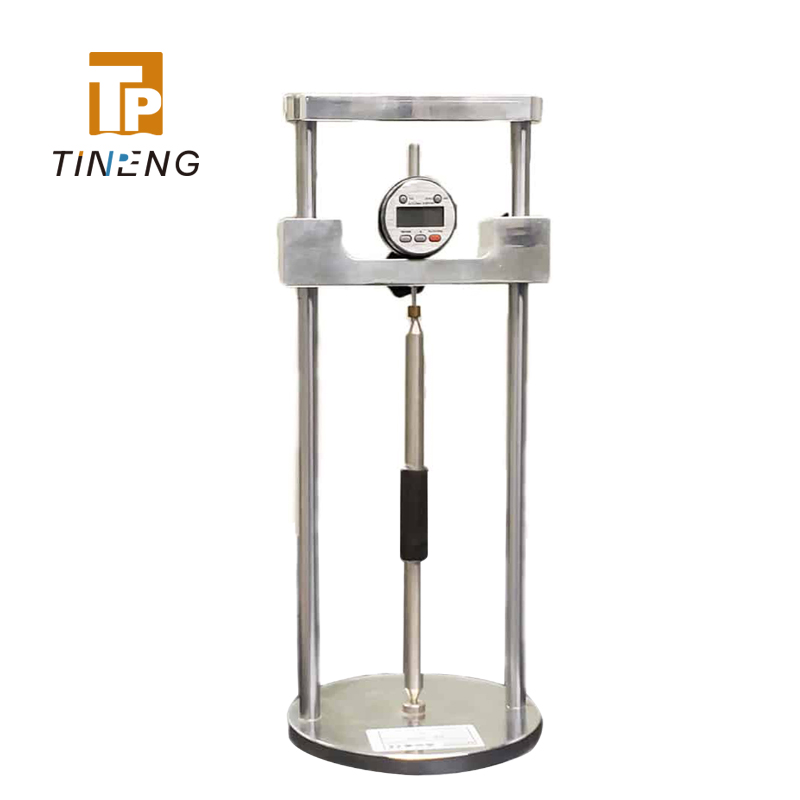

The length comparator is used to determine the changes in length of cement prisms in the accelerated soundness test. It is also used to measure length changes of 40x40x160mm, and other sizes of cement and concrete specimens. The instrument consists of an analogic or digital dial gauge, which is mounted on a steel frame. The top anvil is adjustable to suit the required specimen.
The length comparator is used to determine the changes in length of cement prisms in the accelerated soundness test. It is also used to measure length changes of 40x40x160mm, and other sizes of cement and concrete specimens. The instrument consists of an analogic or digital dial gauge, which is mounted on a steel frame. The top anvil is adjustable to suit the required specimen.
TECHNICAL PARAMETERS
BC156-300
Vaild testing space: 156-305mm
Range of dial indicator: 0-10mm
Resolution: 0.01mm
BC156-300D
Vaild testing space: 156-305mm
Range of dial indicator: 0-12.7mm
Resolution: 0.001mm
BC-160
Vaild testing space: 0-158mm
Range of dial indicator: 0-10mm
Resolution: 0.001mm
