DR-6060

It is mainly used to determine the thermal conductivity of STP and VIP vacuum insulation boards. It can also test silicate insulation materials, ceramic insulation materials, rubber powder polystyrene particles, extruded boards XPS, rigid foam polyurethane insulation boards, foamed cement boards and Class A inorganic fireproof insulation mortar, ceramic insulation boards, XPS extruded boards, EPS foam boards, perlite and perlite bricks, vermiculite and vermiculite bricks and foamed cement and other materials. Configuration: heat flow meter host, computer, circulating water bath, power cord, etc.

STANDARD

  • ASTM C518
  • ISO 8301
  • DIN EN 12667


Get Wholesale Price
Category:
Share:

It is mainly used to determine the thermal conductivity of STP and VIP vacuum insulation boards. It can also test silicate insulation materials, ceramic insulation materials, rubber powder polystyrene particles, extruded boards XPS, rigid foam polyurethane insulation boards, foamed cement boards and Class A inorganic fireproof insulation mortar, ceramic insulation boards, XPS extruded boards, EPS foam boards, perlite and perlite bricks, vermiculite and vermiculite bricks and foamed cement and other materials.

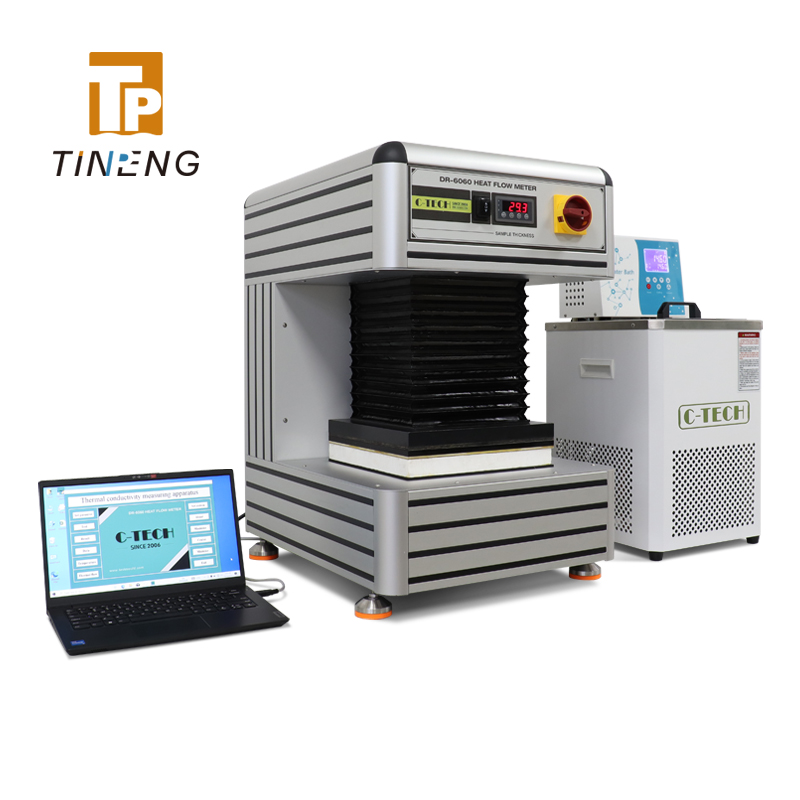

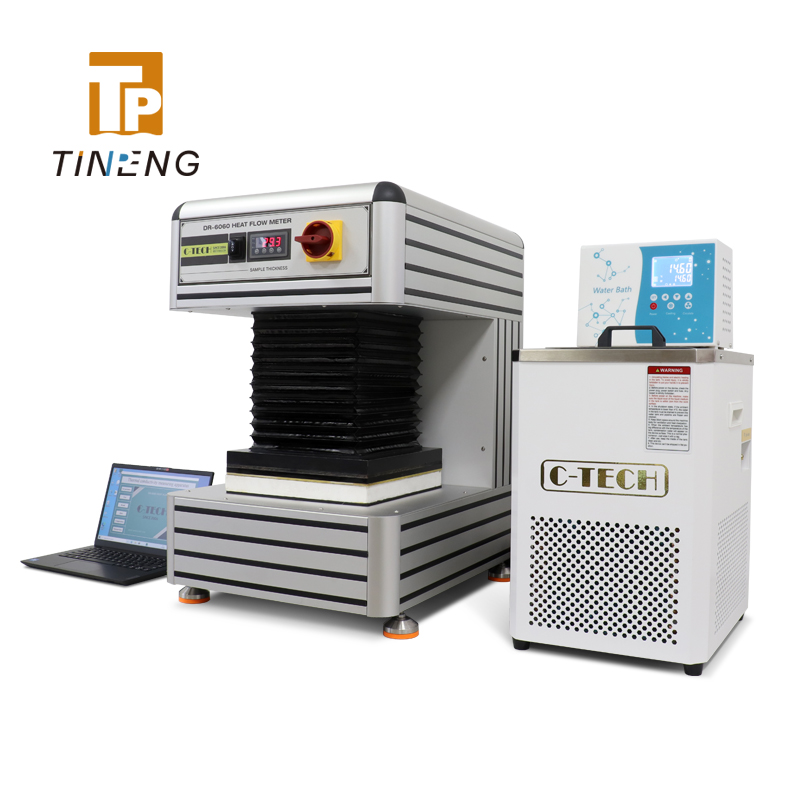

Configuration: heat flow meter host, computer, circulating water bath, power cord, etc.

Features
◎ It integrates a constant temperature bath.
◎ The user can realize the fully automatic control of the instrument, data acquisition and processing, as well as the calculation, display and printout of thermal conductivity through the computer.
◎ It has a high degree of automation, high measurement efficiency and accurate data.
◎ Small footprint and low noise.


TECHNICAL PARAMETERS

Heat flow range: -600~600 W/㎡
Thermal conductivity measurement range: 0.001—2.000 W/ (m•K)
Thermal conductivity measurement accuracy: ±3%
Thermal conductivity measurement repeatability: ±1%
Temperature measurement range: -5~95℃
Temperature resolution: 0.01℃
Temperature control accuracy: 0.05℃
Specimen thickness: 25mm, range 5~40mm
Specimen size: 300×300mm, 300×600mm, 400×600mm, 600×600mm, sizes larger than 600mm can be customized.
Ambient temperature: 23±2℃
Humidity: 40~60%RH
Power supply: AC 220V±10%, 2.0kW

-
-
