16-T0163/16-T0171
Designed for making field classification of cohesive soils in terms of consistency, shear strength and approximate unconfined compressive strength.
Designed for making field classification of cohesive soils in terms of consistency, shear strength and approximate unconfined compressive strength.
Two models available:
16-T0171 Standard model

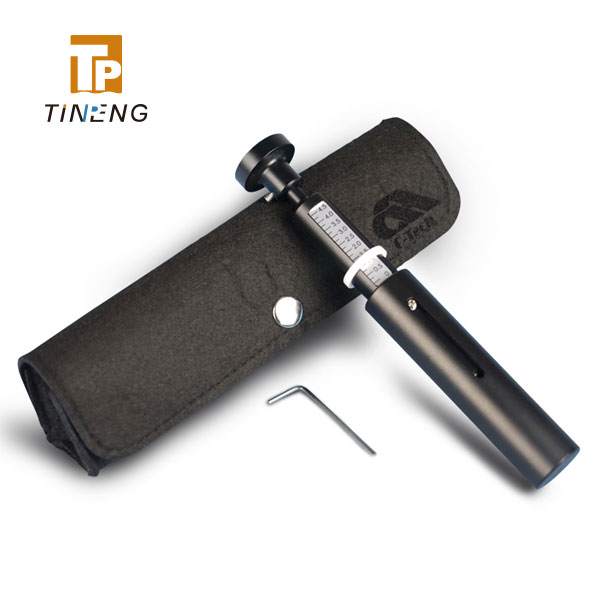

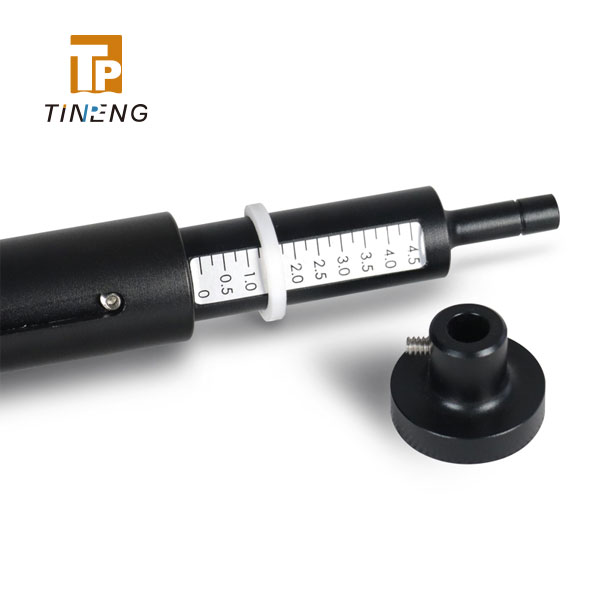

It is constructed from anodized aluminum and measures 6-1/4"Lx 7/8" dia. Use an Allen wrench to loosen the stainless steel pin for cleaning. A special 1in-diameter adapter foot is available as an option for use in very sensitive soils.
Measuring range: 0 to 4.5 kgf/cm2.
Dimensions approx.: 20 mm dia. x 165 mm length
Weight approx.: 0.5 kg
16-T0163 Heavy duty model

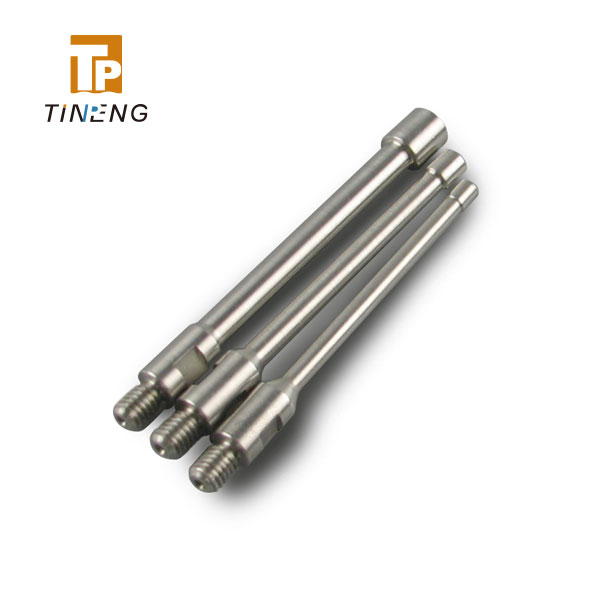

All stainless steel construction, three interchangeable tips: 4.5 mm dia. For very hard soil, 6.35 mm for medium and soft soil, 8.98 mm for soft soil. Supplied complete with plastic case.
Measuring range: 0 to 10 kgf/cm2
Dimensions (assembled): 210 mm length x 20 mm dia. approx.
Weight approx.: 0.5 kg
