CT-A/SZR-11
The Automatic penetrometer is used to determine the plasticity of lubricating grease and the hardness of bitumen.
STANDARD
- ASTM D5
- ASSHTO T49
Get Wholesale Price
The Automatic penetrometer is used to determine the plasticity of lubricating grease and the hardness of bitumen.

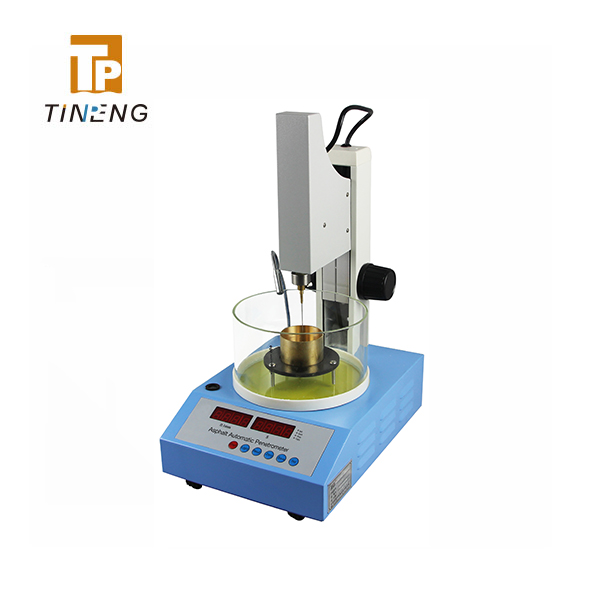

CT-A Automatic penetrometer
Main structure:
1. A set of lights, control circuit inside the base, time display and penetration display windows and function keys on the panel.
2. Needle rod releaser
3. A movement knob on the left of releaser.
4. Shift sensor
SZR-11 Automatic Penetrometer
TECHNICAL PARAMETERS
CT-A Automatic Penetrometer
Time Setting: 5-30s
Max needle penetration: 500
Displace measure range: 0-30mm
Measuring accuracy: ±1%(0 - 10mm); ±10%(10.1 - 30mm)
Standard needle: 2.5±0.05g
Sample vessel: dia. 70mm
Power supply: 220VAC 50Hz
Power: 25W Max
Gross weight: 10kg
SZR-11 Automatic Penetrometer
Displacement accuracy: 0.01mm
Time accuracy: 0.1s
Temperature accuracy: 0.1 ℃
Penetrometer needle: 2.5 ± 0.05 g
Temperature control accuracy: 0.1 ℃
Sample cup 1: 70 × 45 mm
Sample cup 2: 55 × 35 mm
Time Setting: 5S, 15S, 30S, 60S
Displace measure range: 0-40mm
Power supply: 220VAC 50Hz
Dimension: 330x230x520mm
Power: 50W Max
Gross weight: 10kg
