RVDV-2H
The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax and so on.
FEATURES
· The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax and so on.
· The measured data can be displayed directly on the LCD screen without secondary calculation. < VSoft Viscometer Data Collection, Analysis and Graphing Software > can also be selected to realize data acquisition and analysis and to compile the viscosity-temperature curve.
· High subdivision stepper motor, accurate and stable speed.
· LCD liquid crystal with blue backlight function can directly display the viscosity, speed, percentile torque, spindle number and the maximum viscosity and temperature of the selected spindle at the current speed. DV-2 series can also show shear rate and shear stress. Viscosity value shows continuous change, beyond the measurement range there is an alarm sound prompt.
· The measurement performance of the instrument is excellent through computer correction accuracy.
· High-temperature furnace uses embedded integral heating, uniform heating and small thermal inertia.
TECHNICAL PARAMETERS
Measuring Range (mPa•s): 50 ~ 10,000,000
Rotating Speed (RPM): 0.1 ~ 200 (Stepless Gear
Number of Spindles: Spindles (Code21, 27, 28, 29) are equipped with the product
Accuracy: ±1% full scale range in use
Repeatability: ±0.5% full scale range in use
Sample capacity (m L): 10~20
Temperature control range(℃): 10℃ above ambient~300℃
Power: Power adapter (input: 220V 50Hz)
LCD screen display: Viscometer: The LCD screen can display the viscosity, speed, torque spindle, temperature, shear rate, shear force and the maximum viscosity can be measured in the current spindle speed value. The temperature controller: Display setting temperature and actual measuring temperature.
Digital viscosity meter 1 pc
Frame and pipe 1 set

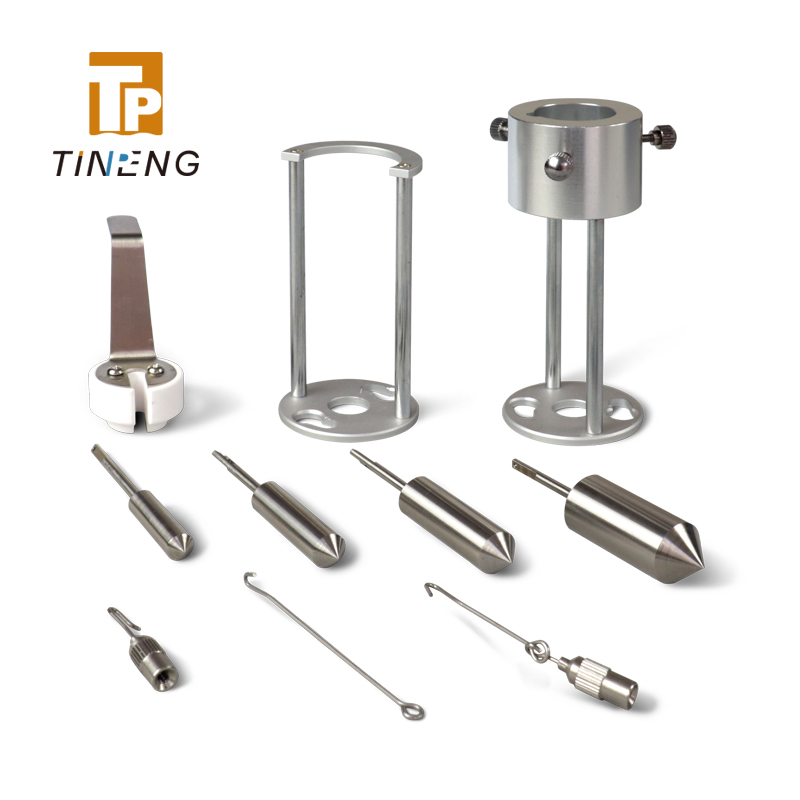

Standard spindle 1 set
Seat and leveling feet 1 set
Temperature controller 1 pc
Insulation cover 1 pc
Position bracket 1 pc
Power cord: 1 pc
Ascending and falling 1 set
Power adapter 1 pc
Spanner 1 pc
RTD temperature probe 1 pc
Heating furnace 1 pc
Special tweezers 1 pc
Connect cable 1 pc
Connection hook 2 sets
