TPJC-XC

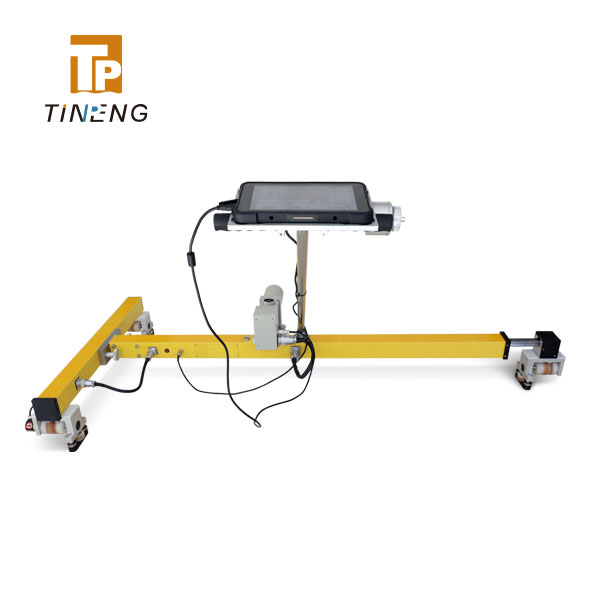

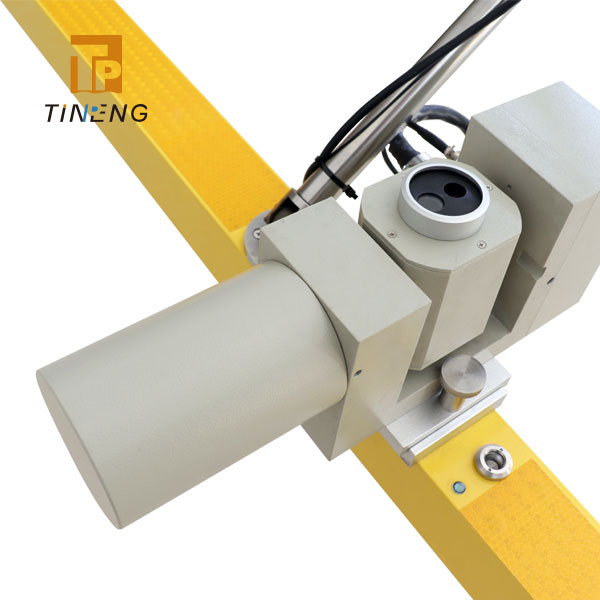

TPJC-XC Portable Trolley for Overhead Line Catenary and Tunnel Section Geometry Measurement is mainly composed of a measurement host part and a measurement trolley. The measurement host part includes industrial computer, measuring trolley, motor, three insulation rollers, automatic tracking laser measuring system, camera and other sensors.
TPJC-XC Portable Trolley for Overhead Line Catenary and Tunnel Section Geometry Measurement is mainly composed of a measurement host part and a measurement trolley. The measurement host part includes industrial computer, measuring trolley, motor, three insulation rollers, automatic tracking laser measuring system, camera and other sensors.

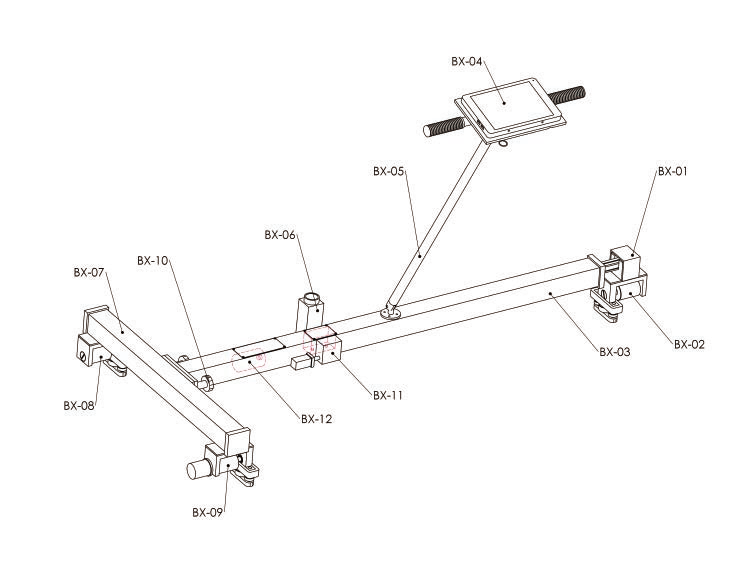

ASSEMBLY
XC-01. Linear guide rail |
BASIC PARAMETER MEASUREMENT

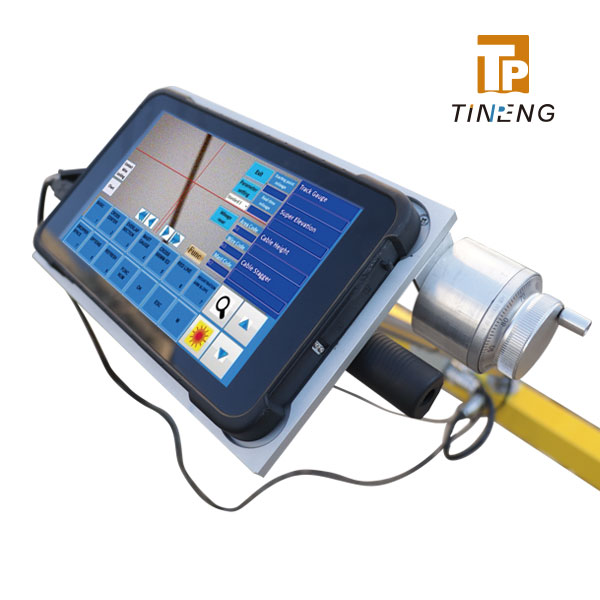

After booting, the device will automatically enter the“ basic parameter measurement” interface and display 4 basic parameters columns. A red cross-line will be in the center of the left part of the LCD screen. By moving the measuring beam frame position back and forth and rotating the laser heads left and right, till the cross-line center and the target object to be measured are completely coincident aimed and all clear showing in the screen. When aiming, you can use the laser head to make coarse adjustments by hand, and then fine-turn the fine-tuning knob as needed, until object aim at the target.
Click the "M" button and wait for the "Cable Height" and "Cable Stagger" to display normally. Click "Lock Contact Network" to lock the cur- rent contact network.
After aiming at the target, you can press the corresponding function button to measure and display the measure- ment result; if there is no aiming target, the screen shows the prompt message
"Retry to enter the dead zone or misaligned target, please measure again."
When measuring the stagger, the stagger value is positive when the wire is deflected toward the measuring beam fixed foot block direction; the stagger value is 0 when the measured target is in the center of the rail. When the wire is toward to the beam sprung foot block direction, the stagger value is negative.
FUNCTIONS
· Track gauge measurement
· Super elevation measurement
· Cable height measurement
· Cable stagger measurement
· Cross center measurement
· Overlap section measurement
· Mast gauge measurement
· Elevation difference measurement at 500mm
· Red line measurement
· Registration arm slope measurement
· Dropper space measurement
· Mast perpendicularity measurement
· Data storage and export TXT file to computer
· GPS(optional)
TECHNICAL PARAMETERS
MAIN PARAMETERS
Cable Height
Range: 5100~6500mm; Accuracy: ±3mm
Cable stagger
Range: ±600mm; Accuracy: ±5mm
Cross center Height
Range: 5100~6500mm; Accuracy: ±3mm
Cross center Deviation Value
Range: ±600mm; Accuracy: ±5mm
Elevation difference at 500mm
Accuracy: ±4mm
Track gauge
Range: 1410~1470mm; Accuracy: ±0.5mm
Super-Elevation(horizontal)
Range: ±185mm; Accuracy: ±1mm
Red Line
Accuracy: ±4mm
Mast gauge
Range: 2400~6500mm; Accuracy: ±5mm
Dropper Space
Accuracy: ±5mm
Overlap section
Horizontal distance Accuracy: ±7.5mm
Vertical distance Accuracy: ±5mm
Distance between railway transmission lines and contact wire
Accuracy: ±4mm
Free measurement
Horizontal distance Accuracy: ±4mm
Vertical distance Accuracy: ±3mm
Mast span on both sides of the track
Range: 35000mm; Accuracy: ±5mm
Tunnel section Parameter
Measuring radius Range: 0.05-100m any point 1mm
Azimuth coverage Range: 0-180°; Accuracy: 9s
Operation system
Windows 10
Registration arm slope
1:n(n accurate to 0.1)
ELECTRICAL PARAMETERS
Voltage: 16.8V
Electric current: 390mA
Continuous working time: no less than 15 hours
Laser wavelength: 650nm
Laser safety grade: class 2
WORKING CONDITION
Working temperature: -20~+50℃
Related humidity: ≤90%RH
Altitude: ≤2500m
Classification of waterproof: IP65
MECHANICAL PARAMETERS
Weight: 15Kg
Dimension: 1620(L)x160(W)x1300(H)mm
