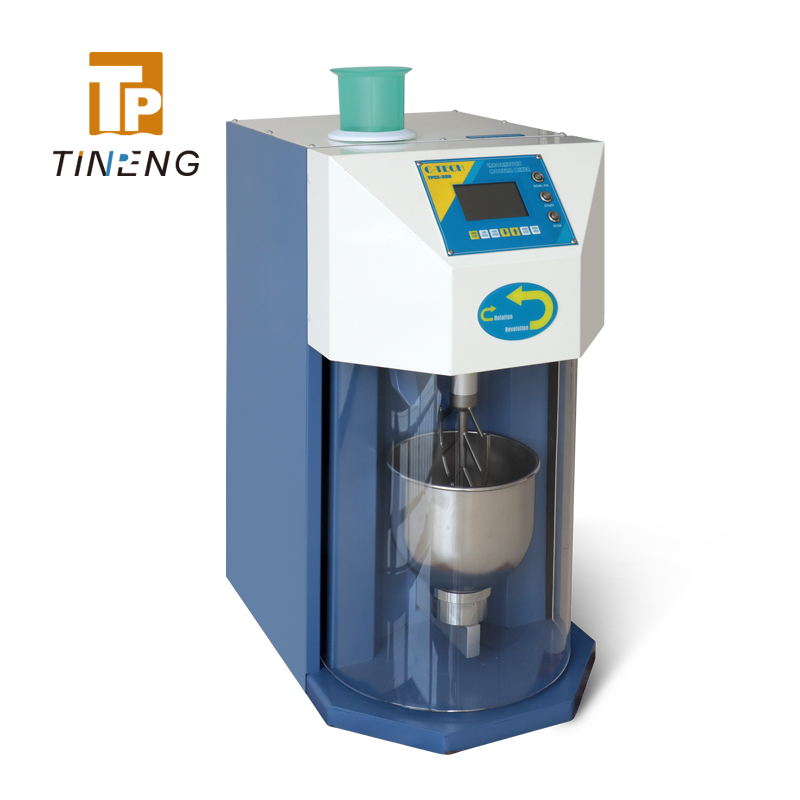

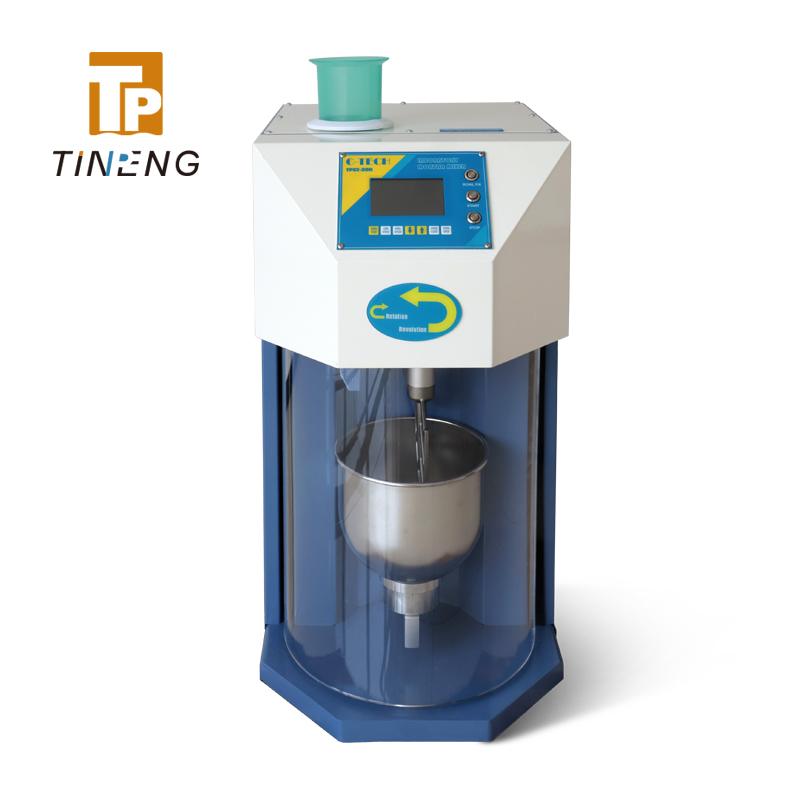

TPCE-20H
The program-controlled stepping motor is used to rotate at a variable speed, which drives the hopper to rotate and pours the mortar into the mixing bowl evenly. The feeding process can fully meet the standard feeding speed through the program, and the feeding completeness is higher.
FEATURES
·New feeding structure. The program-controlled stepper motor is used to rotate at a variable speed, which drives the hopper to rotate and pours the mortar into the mixing bowl evenly. The feeding process can fully meet the standard feeding speed through the program, and the feeding completeness is higher.
·Magnetic suction type mixing bowl locking device. The mixing bowl is locked by magnetic suction, which makes the installation of the mixing bowl more convenient and stable, and avoids the shaking of the mixing bowl during the stirring process.
·Intelligent expert setup system. Users can compile the test process control mode according to their actual requirements and complete the test automatically. It can realize the function of continuous loading and holding load under any load. There is no shock and vibration during the test, and it has good reading stability. The test process can be simulated and reproduced.
·The door can be easily opened and closed by using the button.
·The mixing bowl holder adopts stepper motor and ball screw to realize automatic lifting function and accurate positioning.
·The main shaft adopts stepper motor soft transmission, and cooperates with planetary gear device to reduce noise and improve service life.
TECHNICAL PARAMETERS
Mixing paddle revolutions: Low speed: rotation 140±2r/min, revolution 62±2r/min; High speed: rotation 285±3r/min, revolution 125±3r/min
Movement trajectory: Same as ISO679—1989（E）
Working mode: Manual and automatic modes

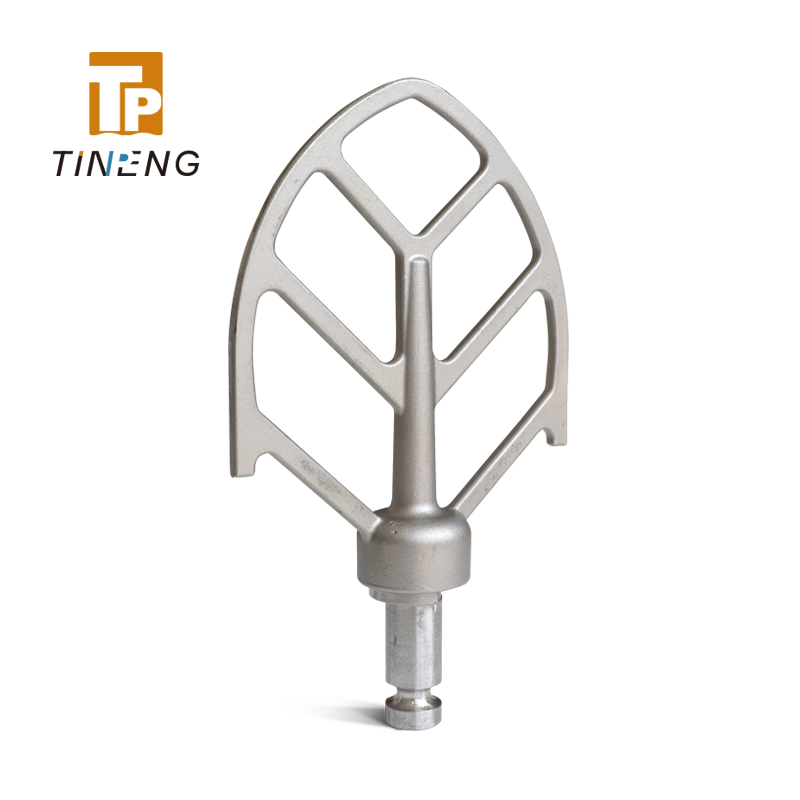

Mixing paddle: Overall width: 135mm; effective length: 130mm; thickness: 6±2mm
Mixing paddle connection: Quick-connect (the paddle can be disassembled at any time, which is convenient for cleaning the paddle)

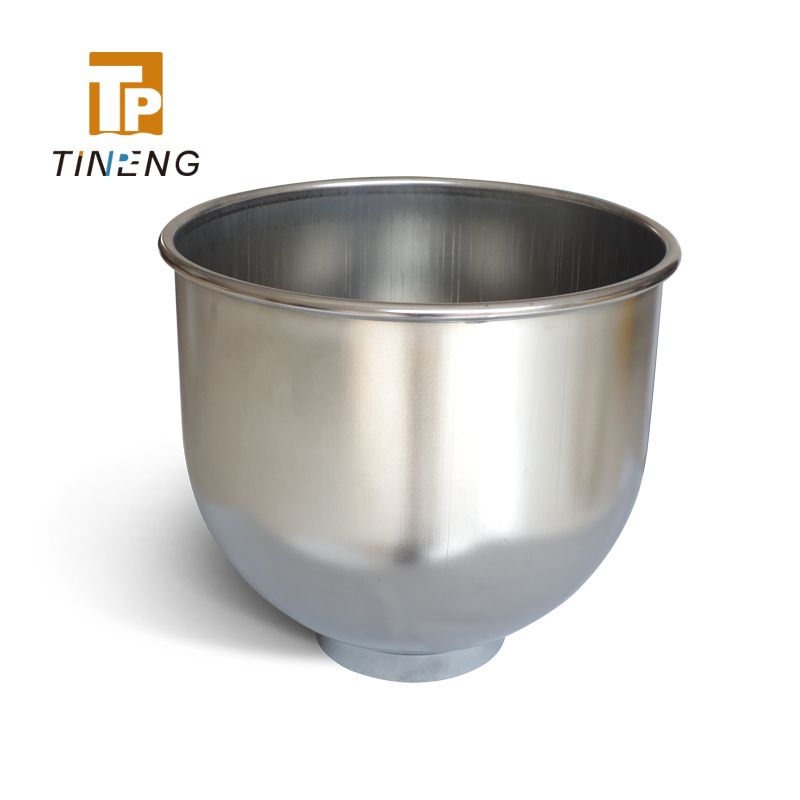

Mixing bowl: Capacity: 5L; depth: 180mm; inner diameter: 200mm; thickness 3mm
Mixing bowl installation: Magnetic locking structure
Working gap: The working gap between the paddle and the bowl is 3±1mm
Motor: Stepper motor soft transmission (power 0.75kW)
Dimensions: Length 400×width 560×height 900(mm)
Weight: 63kg
