SPT-K160

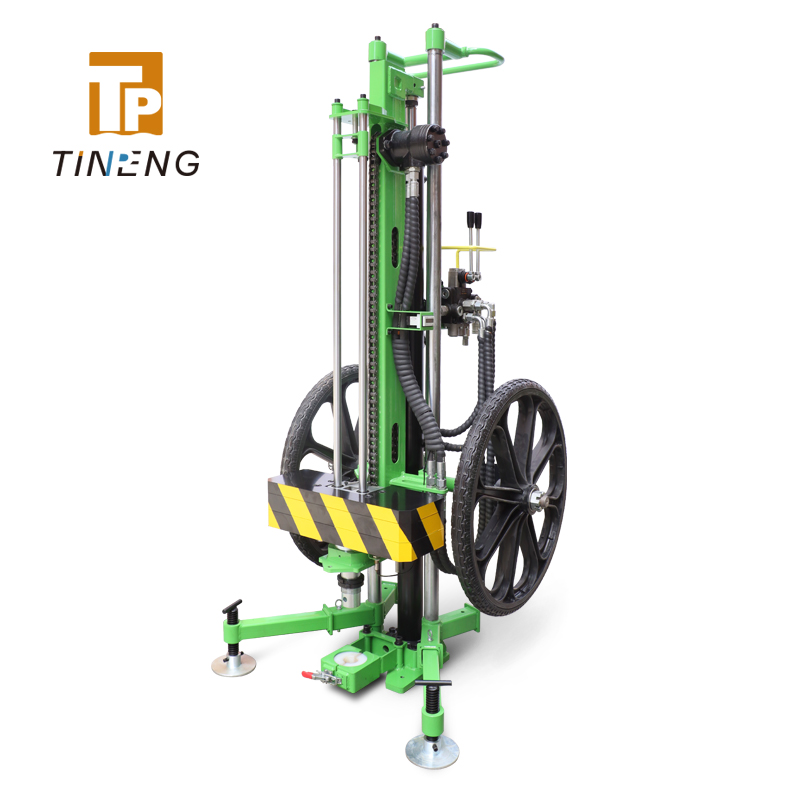

The SPT-K160 is a multi-functional, lightweight soil investigation rig.It can be used for various dynamic probing tests(DPL,DPM,DPH and DPSH) and standard penetration tests.It can also be used to extract the probe rods after test. Its two wheels allow for easy movement,the transportation and tests can be completed by only one person. Four adjustable support feet allow it to adapt to working sites with different terrains.
STANDARD
- DIN EN ISO 22476-14
- EN ISO 22476-14
- ISO 22476-14
Get Wholesale Price
The SPT-K160 is a multi-functional, lightweight soil investigation rig.It can be used for various dynamic probing tests(DPL,DPM,DPH and DPSH) and standard penetration tests.It can also be used to extract the probe rods after test. Its two wheels allow for easy movement,the transportation and tests can be completed by only one person. Four adjustable support feet allow it to adapt to working sites with different terrains.
FEATURES
-Equipped with two wheels,easy to move;
-Four adjustable support feet for perpendicular working in all positions;
-10 kg basic drop weight and 20 kg +20 kg+13.5 kg additional weights. Drop weight can be adjusted as needed;
-Drop height can be varied between 500 and 750 mm (other drop height can be customized.);
-Mechanical blow counter;
-Rod extraction function;
-Dynamic probing DPL,DPM,DPH,DPSH and SPT can be carried out.
TECHNICALSPECIFICATIONS

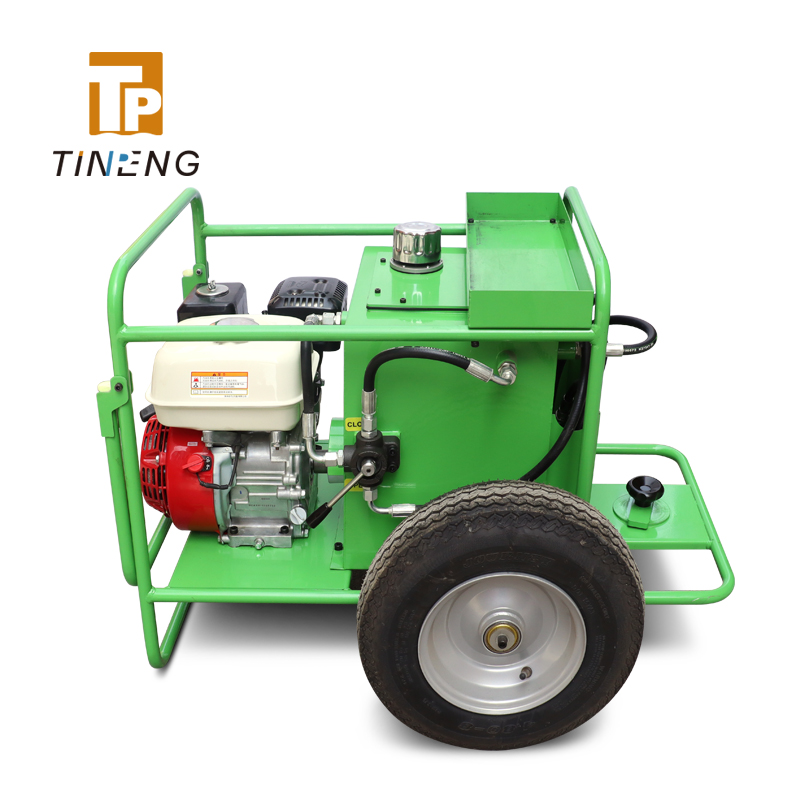

Power pack:6.5hp,4-stroke Honda motor,flow15L/min,rate pressure 16MPa
Hammer mass:DPL 10kg,DPM 30kg, DPH 50kg,DPSH & SPT 63.5kg
Number of blows:15-30 blows per minute
Drop height:500/750mm,other drop height can be customized
Wheels:Dia.630mm
Cylinder stroke:1200mm
Lifting force:80kN
Dimensions:
Main body:880x740×1700mm,package 940×810×1830mm
Power pack and accessories: package 1080x790x800mm
Weight:Main body:220kg Power pack:80kg
