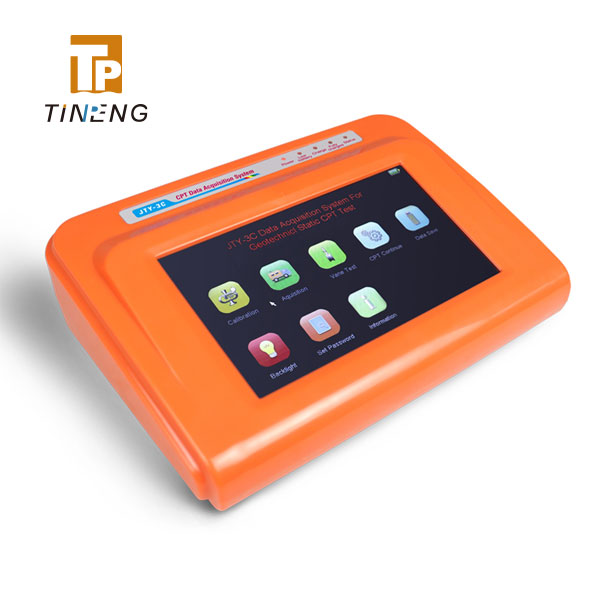

JTY-3C

Static cone penetration test is internationally recognized as a standard field test to collect data about bearing capacity and frictional resistance of soil. Data Acquisition System JTY-3C is a new acquisition system capable. Sturdy, practical, and easy to use, JTY-3C does not require the aid of a por-table PC and/or adaptors, it can be easily installed on the machine on site and transported in a handy case.
The intuitive touch-screen monitor can be read anytime and anywhere.
The collected data can be downloaded to a USB disk.

The CPT machine and probes need to be ordered separately.

Features

·High density acquisition of Qc (Ps), Fs, u value, vane shear Cu value.
·Large-screen liquid crystal display, real-time display conical curve and the side wall curve, the proportion of self-se-lection to adapt to different formations.
·Continue to collect, you can recall any curve stored in the instrument to contin-ue collecting the design depth.
·The data editing function, you can call up any hole curve data stored in the instru-ment for editing and modification.
·Equipped with USB port to generate text type data files for communication with PC, which can be used for mapping or further data processing by engineering geological survey software package.
·Alarm function, user can set alarm value.
·Backlight display, suitable for night or dark light environment work.

TECHNICAL PARAMETERS

Qc, Fs collection value error: <1%
Output voltage: 7.4V
Charging voltage: AC220V or DC12V
High-energy battery capacity: 4Ah
Charging current: 450mA
Charging time: 13 hours, can collect data for 6-8 hours
Single-hole acquisition depth: ≤100m
Storage Hole Data: 600
Storage data(double bridge): 3*2856 m
Dimension: 420*320*130mm 4.5kg
