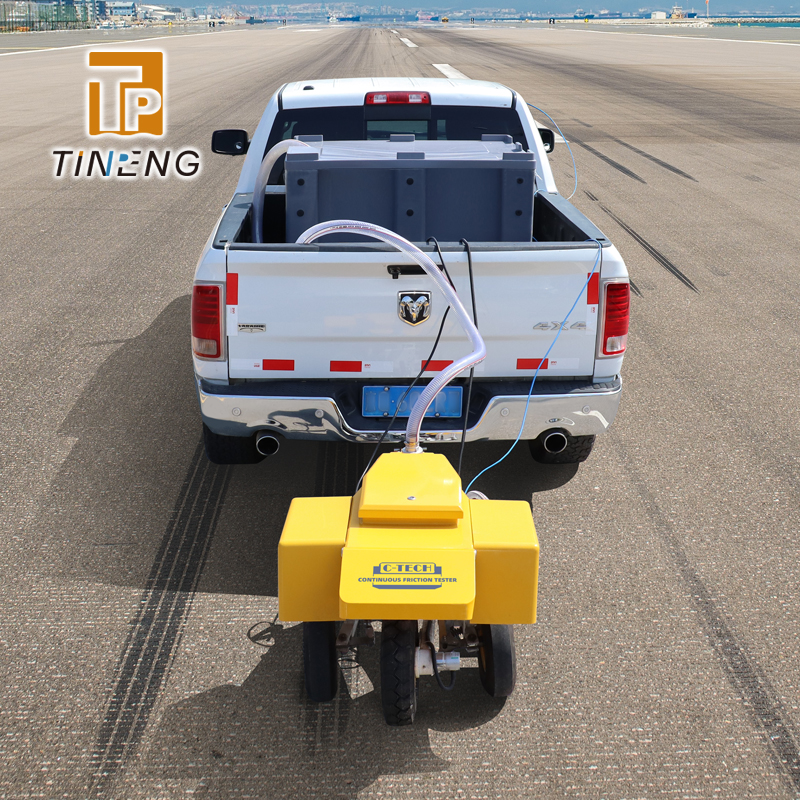

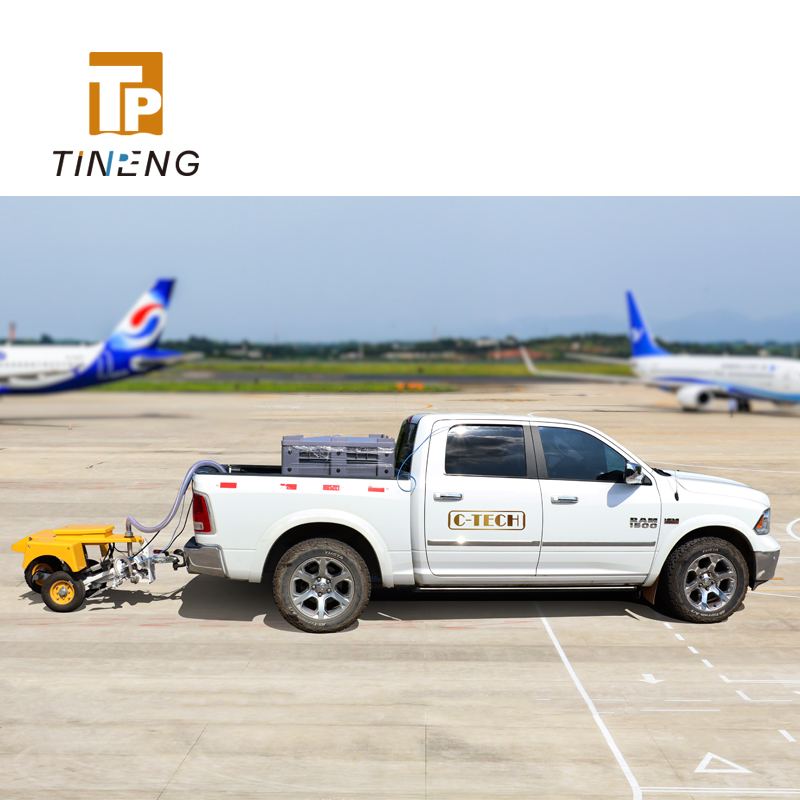

It is a trailer mounted device that is connected to a suitable tow vehicle and is able to measure the coefficient of friction of the pavement surface through continuous friction trace and side force measurement to reduce the risk of road accidents.

STANDARD

  • ASTM E670
  • ASTM E1551


Get Wholesale Price
Category:
Share:

It is a trailer mounted device that is connected to a suitable tow vehicle and is able to measure the coefficient of friction of the pavement surface through continuous friction trace and side force measurement to reduce the risk of road accidents.

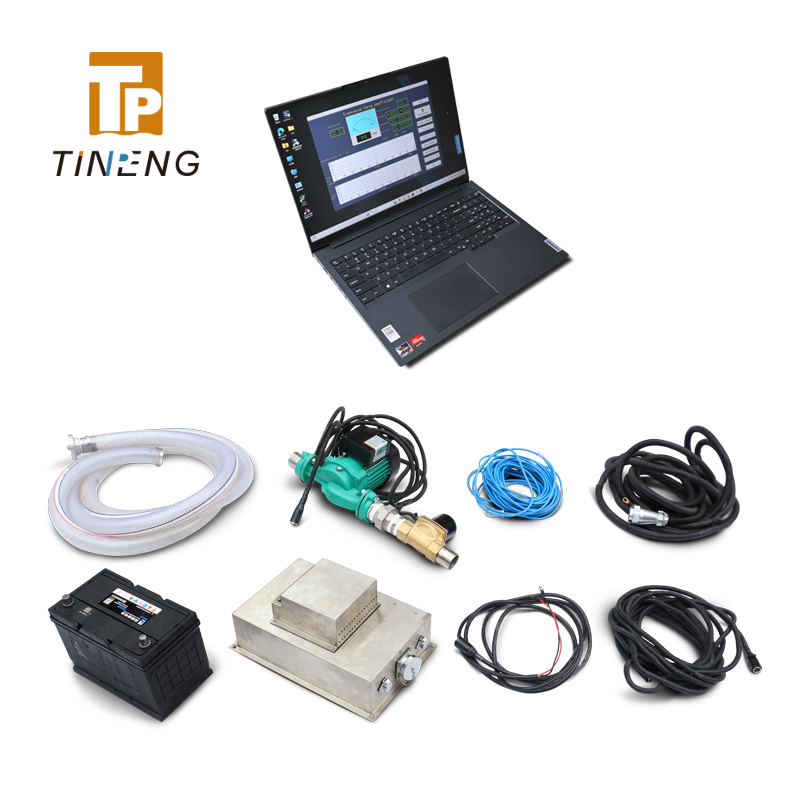

It consists of a measuring trailer, an electronic control device, a laptop and software. The trailer type measuring equipment moves forward under the towing of the tow vehicle. Through the skidding of the test wheels with special non-treaded tires at a certain angle, the sideway force perpendicular to the driving direction is generated. High-precision sensors measure and transmit the measured data to computer software for processing, and ultimately provide users with tables and curves of pavement surface position and friction coefficient. The measurement is controlled by computer software and the water output is automatically adjusted according to the driving speed so that the water film thickness between the test wheel and the road surface is 0.05~1 mm.

COMPONENT
This equipment includes below parts:

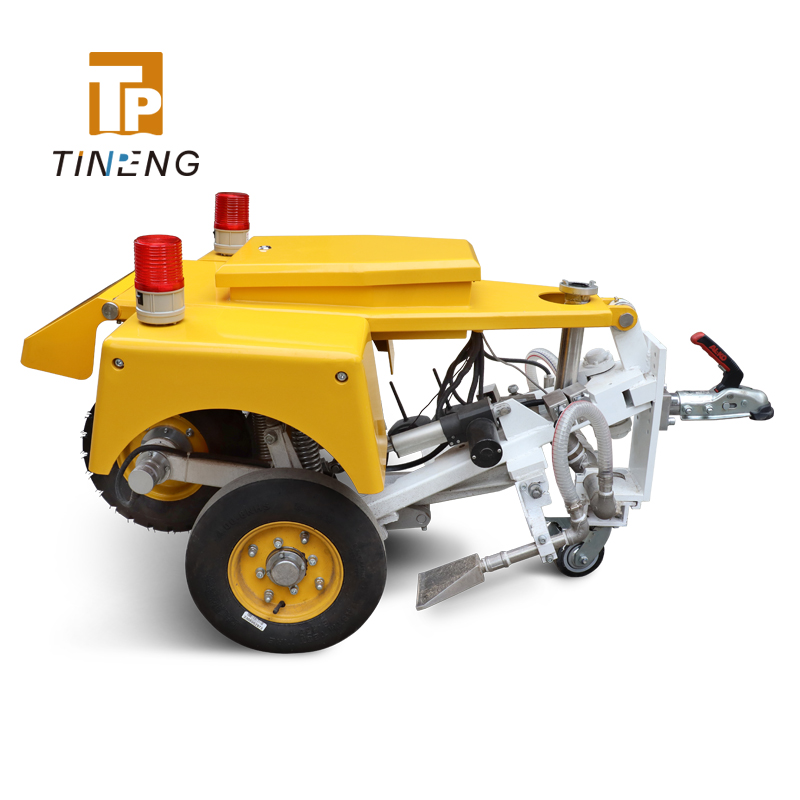

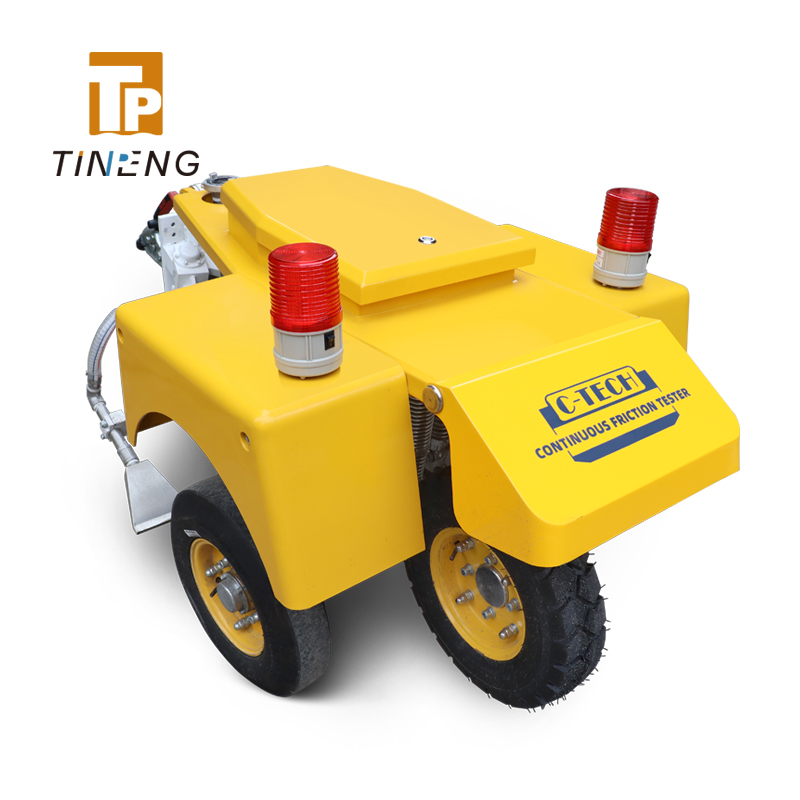

Trailer type measuring equipment (including electronic control system, front-end industrial computer, etc.);
Water film thickness control system;
Infrared temperature measurement system
Connection device
Laptop


-

TECHNICAL PARAMETERS

Test speed: 20 km/h~100 km/h
Working temperature: -25℃~+60℃
Relative humidity: ≤100%
Test wheel (special non-treaded type) tire pressure: 70±0.035Kpa
Friction test accuracy: Average sideway force coefficient ±2%
Distance test accuracy: ±0.1% plus tire wear (can be changed to pile number according to distance and can be corrected)
Test wheel weight when touching the ground (left and right wheels): 77.56±0.5kg
Trailer connection: Precision ball joint towing hook, or traditional ring hook
SFC range: 0-100
Water film thickness: 0.5mm or 1mm in front of the test wheel, error ≤15%.
Water flow rate: 0.5mm or 1mm in front of the test wheel, error ≤15%.
Watering system power supply: Provided by the tow vehicle, no external power generation device is required
Watering system: The water output can be adjusted according to the test speed to ensure that the water film thickness is relatively constant during the test
Data acquisition: Computer bus high-speed data acquisition
Data transmission: Data transmission via Ethernet
Computer system: Supports Windows 2000/XP/Vista/Windows 7 operating systems
Monitoring image: Dual-channel image monitoring
Trailer dimensions: 1.5×0.8×0.8m (length×width×height)
Working voltage: tow vehicle power supply, DC 12V

-
