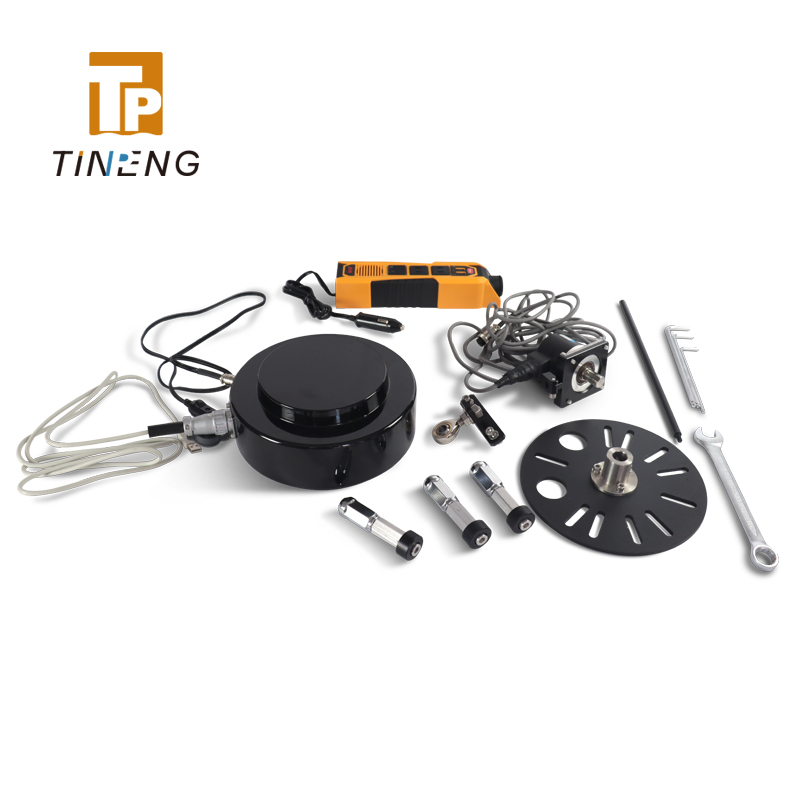

Vehicle-mounted road surface profilometer
This equipment can detect the dynamic mechanical response of the longitudinal roughness change of the road surface to the detected vehicle in real time, and convert the measured dynamic mechanical response into various roughness indexes through mathematical models (international roughness index IRI, roughness standard deviation , bump accumulation value VBI, ride quality index RQI, etc.). It can evaluate the roughness of various roads and airport runways under normal vehicle speed, and can be used for road maintenance management evaluation and roughness index acceptance of road construction. This equipment is easy to install and cost-effective.
This equipment can detect the dynamic mechanical response of the longitudinal roughness change of the road surface to the detected vehicle in real time, and convert the measured dynamic mechanical response into various roughness indexes through mathematical models (international roughness index IRI, roughness standard deviation , bump accumulation value VBI, ride quality index RQI, etc.). It can evaluate the roughness of various roads and airport runways under normal vehicle speed, and can be used for road maintenance management evaluation and roughness index acceptance of road construction. This equipment is easy to install and cost-effective.
Features
· All analysis and evaluation results can be“one-click generated reports” in user formats.
· Can be matched with road management system to realize detection data platformization and visual management.
· No limit to the detection mileage. Using real-time data saving mode, detection results can be analyzed in real time.
· During the detection process, function keys are used to label special states to facilitate verification during data analysis.
· Highly cost-effective, suitable for long-distance road maintenance evaluation and rural road roughness evaluation.

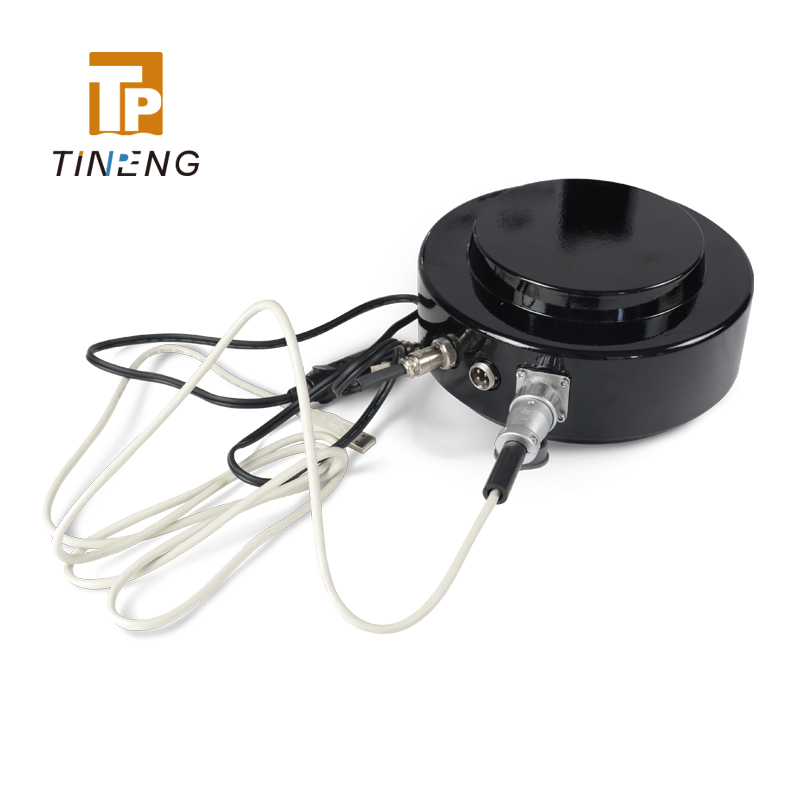

· Easy to install, no mechanical modifications to the inspection vehicle are required. Just place the detection box at the footrest of the seat in front of the car, and it is easy to operate.
TECHINICAL PARAMETERS
Roughness indexes: International roughness index IRI, roughness standard deviation σ, bump accumulation value VBI, ride quality index RQI
Correlation with reference results: R>0.95
Detection repeatability deviation coefficient: Cv < 5%
Vertical vibration detection range of inspection vehicle: ±5 G
Detection speed: 10 km/h-110 km/h

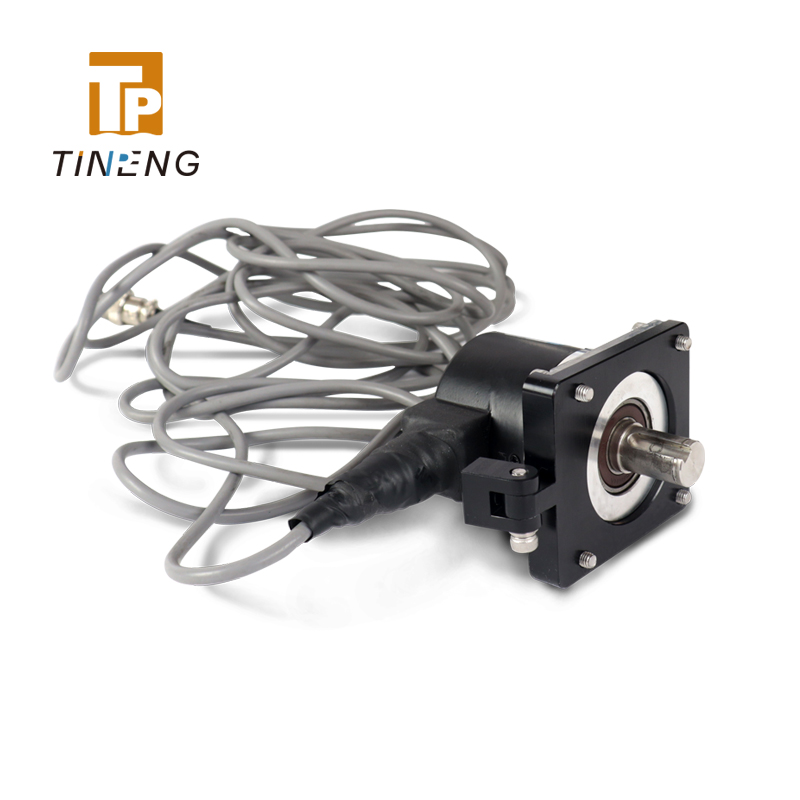

Longitudinal distance sensor error: ≤ 0.05%
Continuously measurable distance: No limit
Measurable longitudinal profile wavelength range: 0.1-50 m
Minimum data acquisition spacing for roughness: 1 cm – 20 cm (can be selected as needed)
Reporting intervals for various indexes: 1 cm – 20 cm (can be selected as needed)
Operators (including driver): 1-2
Environment temperature: -20℃ to 50℃

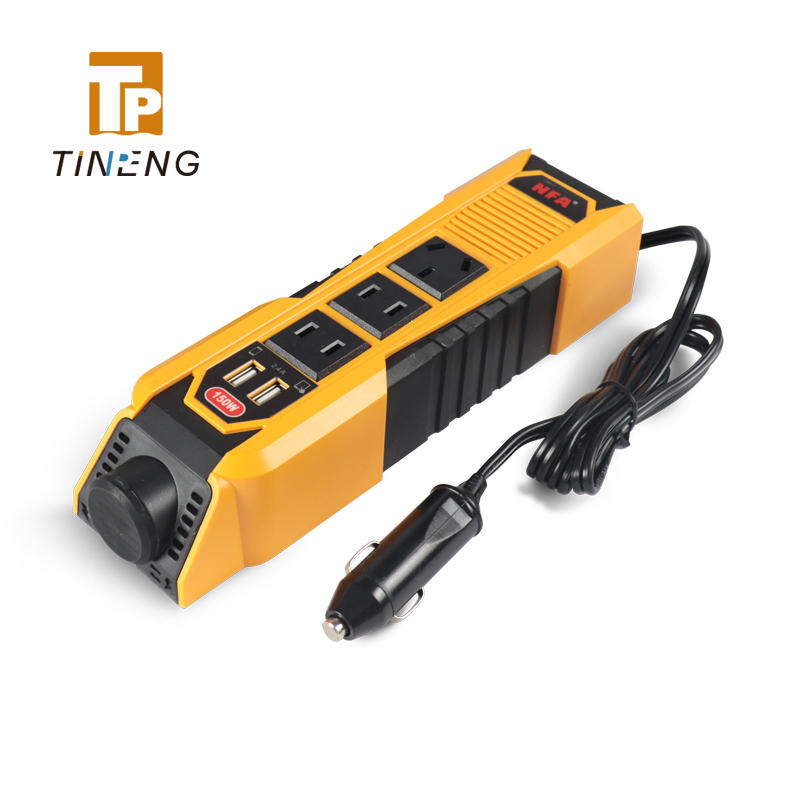

Power supply: 12V DC power supply equipped with the inspection vehicle
On-site output: Data can be analyzed on-site
Detection probe installation position: Interior front of the inspection vehicle
