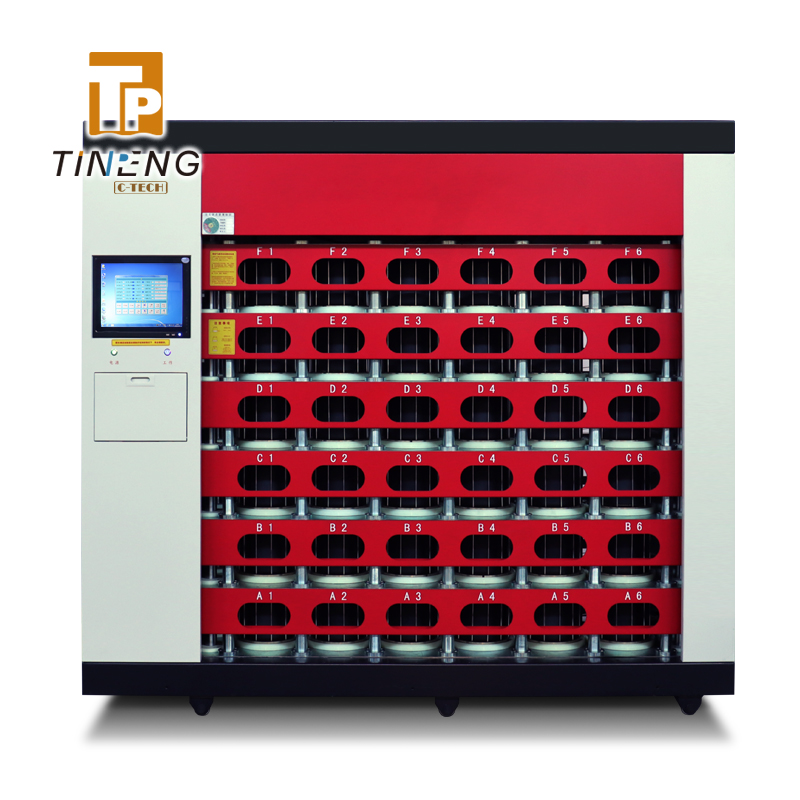

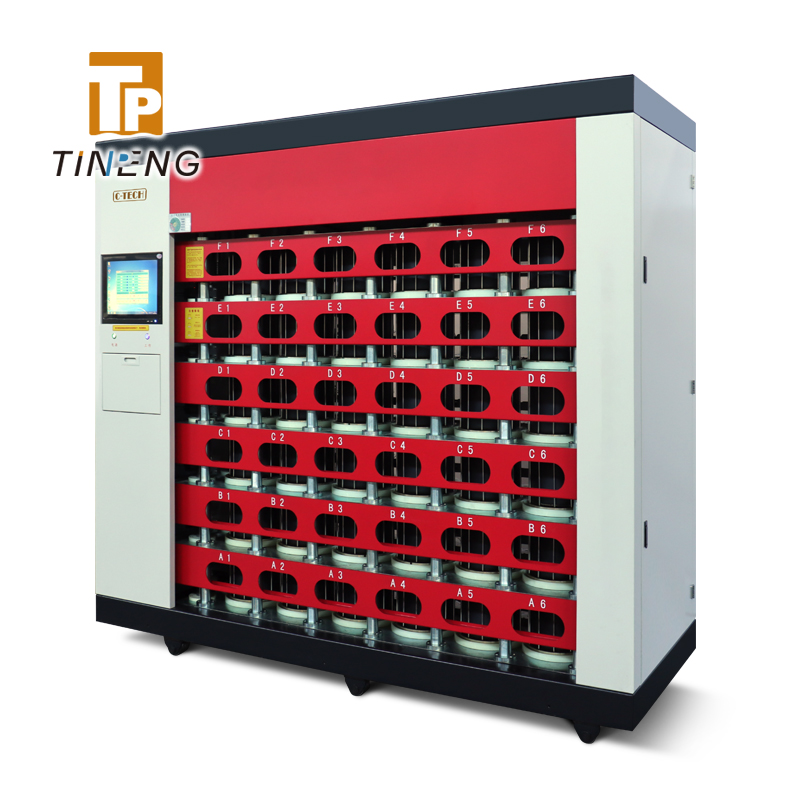

TPWP-30/TPWP-36
It is suitable for testing concrete impermeability level, penetration depth and relative permeability coefficient. The equipment does not require any sealing materials during the test, it can automatically seal, pressurize, maintain constant pressure, timing, determine leakage, save data, demould, and monitor in real time. 2 models available.
STANDARD
- EN 12390-8
Get Wholesale Price
It is suitable for testing concrete impermeability level, penetration depth and relative permeability coefficient. The equipment does not require any sealing materials during the test, it can automatically seal, pressurize, maintain constant pressure, timing, determine leakage, save data, demould, and monitor in real time. 2 models available.
FEATURES
◎ Simple operation, stable performance and reliable results.
◎ No other sealing materials are required, the device seals automatically.
◎ 15-inch touch screen for operation.
◎ Automatically generate test reports. Supports export of original records (data storage time capacity ≥ 5 years). Data can be uploaded to the user's testing platform system, and report templates can be customized.
TECHNICAL PARAMETERS
TPWP-30
Pressurization method: Bottom-up
Relative error: ≤0.005MPa
Pressure resolution: 0.001MPa
Maximum pressure: 1.2MPa
Constant pressure error: Step-by-step pressurization method: ±0.005MPa / Penetration depth method: ±0.005MPa

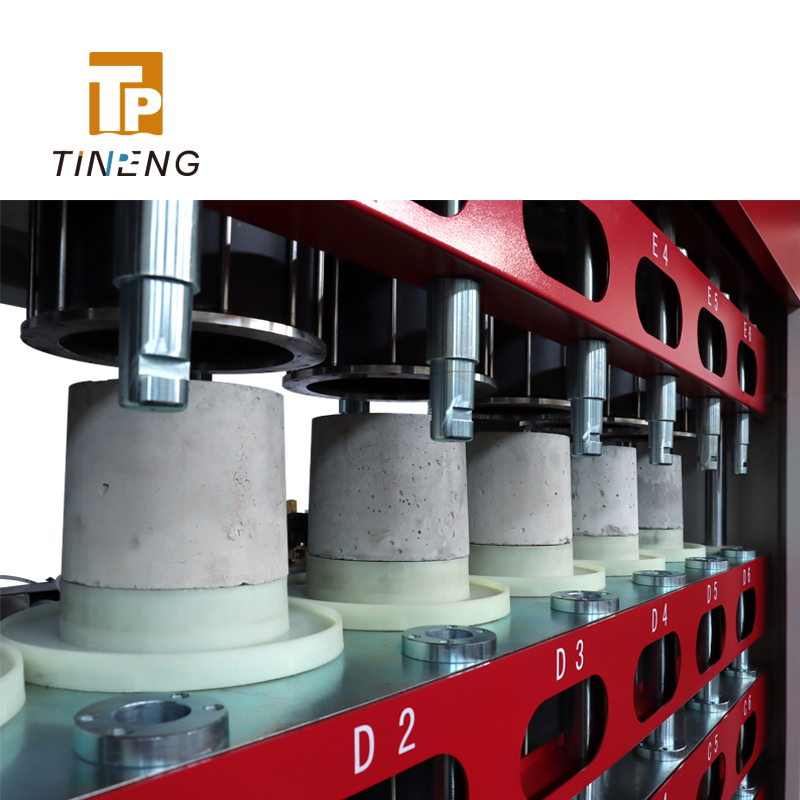

Specimen sealing method: Enhanced airtight seal, all specimens can be sealed at the same time, total sealing time ≤5min
Specimen sealing material: Special high pressure resistant, wear-resistant material, not easy to be damaged
Maximum sealing pressure: 2.0MPa
Sealing pressure resolution: 0.001MPa
Display: 15-inch touch screen for operation and status display

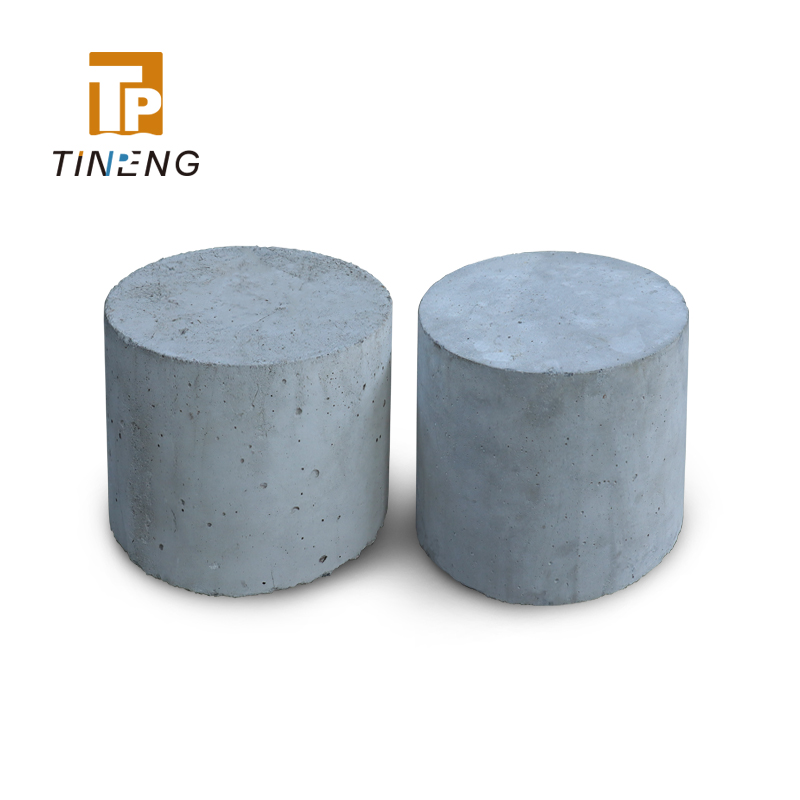

Specimen size: φ175×φ185×150mm±2mm
Specimen capacity: 30 specimens
Lifting drive mode: Servo motor drive
Power supply: 220V 50Hz
Dimensions: 2450×920×1950 (5 layers)
TPWP-36
Pressurization method: Bottom-up
Relative error: ≤0.005MPa
Pressure resolution: 0.001MPa
Maximum pressure: 1.2MPa
Constant pressure error: Step-by-step pressurization method: ±0.005MPa / Penetration depth method: ±0.005MPa
Specimen sealing method: Enhanced airtight seal, all specimens can be sealed at the same time, total sealing time ≤5min
Specimen sealing material: Special high pressure resistant, wear-resistant material, not easy to be damaged
Maximum sealing pressure: 2.0MPa
Sealing pressure resolution: 0.001MPa
Display: 15-inch touch screen for operation and status display
Specimen size: φ175×φ185×150mm±2mm
Specimen capacity: 36 specimens
Lifting drive mode: Servo motor drive
Power supply: 220V 50Hz
Dimensions: 2450×920×2200mm (6 layers)
