48-D5242

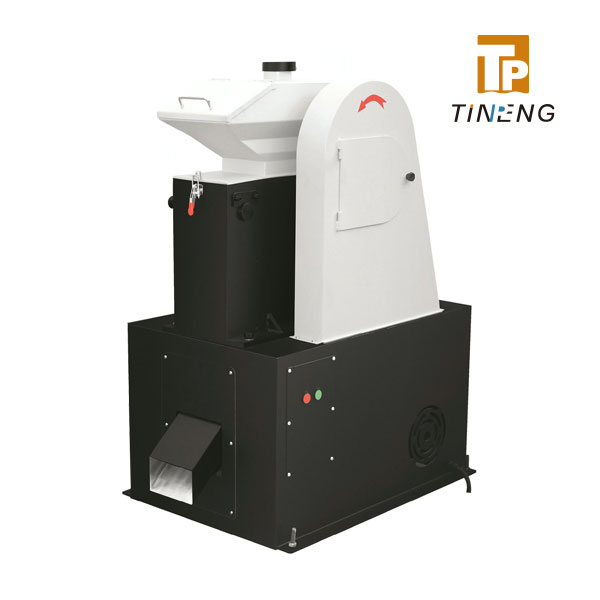

This machine is used to determine the resistance to wear of aggregates. The machine consists of a steel frame suitable to house four Φ200 mm×154 mm cylinders (EN 1097-1) or two Φ200 mm×400 mm cylinders (EN 13450). The top machine is enclosed in a sound proof and safety cabinet conforming to CE requirement and stops automatically when the cover is open. The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum or the total working time.
Get Wholesale PriceThis machine is used to determine the resistance to wear of aggregates. The machine consists of a steel frame suitable to house four Φ200 mm×154 mm cylinders (EN 1097-1) or two Φ200 mm×400 mm cylinders (EN 13450). The top machine is enclosed in a sound proof and safety cabinet conforming to CE requirement and stops automatically when the cover is open. The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum or the total working time.
Features
· Equipped with four Φ200 mm×154 mm Stainless steel cylinders.
· Suitable for rolling two Φ200 mm×400 mm cylinders (need to be ordered separately)
· Revolutions setting counter included
· Enclosed in safety protection
Power: AC220V 50HZ, single phase, 750 W
Weight: 170kgs
Dimension: 1100 x 470 x 1200mm
EN 1097-1 (NEED TO BE ORDERED SEPARATELY)
48-D0524/7 Stainless steel spheres Φ10mm, Pack of 20 kg
EN 13450 (NEED TO BE ORDERED SEPARATELY)
48-D0524/8 Stainless steel cylinders Φ200 mm×400 mm
Note: Abrasive charge (steel spheres) not required.
NF P 18-576 (NEED TO BE ORDERED SEPARATELY)
48-D0524/1 Steel spheres Φ30 mm, Pack of 10
48-D0524/2 Steel spheres Φ18 mm, Pack of 50
SPARE PARTS
48-D0524/4 Four standard Stainless steel cylinders Φ200 mm×154 mm
48-D0524/5 Magnetic bar 580x25x220mm
