64-L0056, YM-3/XYM-1, 64-L0064

The Slurry Test Kit is a portable kit with materials and equipment for measuring slurry properties. With this kit, the user can obtain laboratory-quality measurements of Marsh funnel viscosity, specific gravity or density and sand content.
These tests comply with API Recommended Practice for Field Testing Water Based Drilling Fluids, API RP 13B-1.

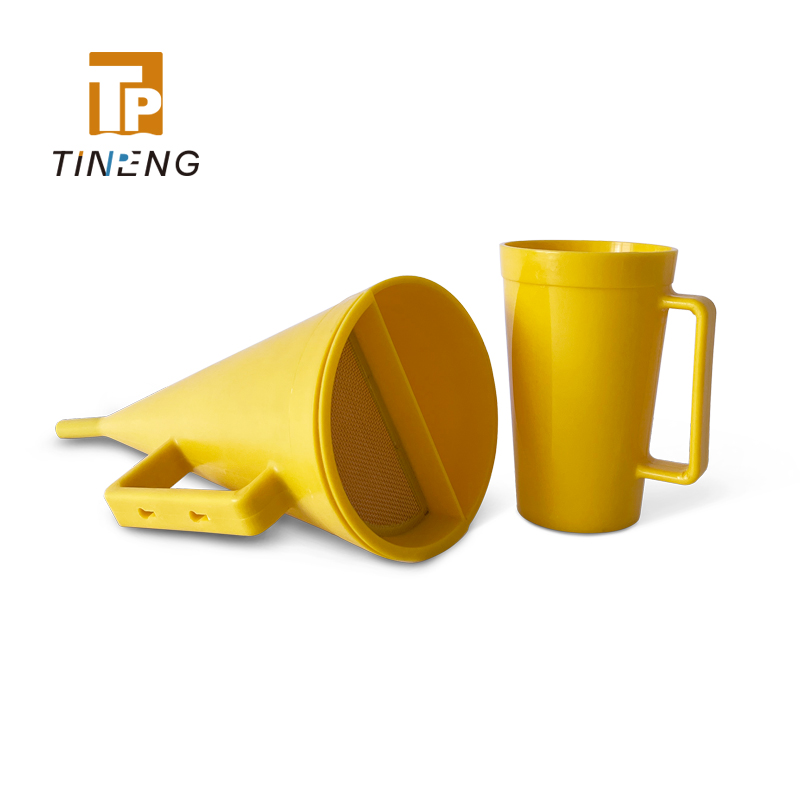

Marsh funnel viscometer
The Marsh funnel viscometer is made of rugged, breakresistant plastic that resists to the temperature change deformation.
Volumetric accuracy is assured. Plastic handle provides insulation for user’s hands.
A metal orifice assures accurate readings.
The Marsh funnel is used for routine viscosity determinations on almost every drilling rig. Supplied complete with measuring cup 946ml capacity and 2000ml mud cup.

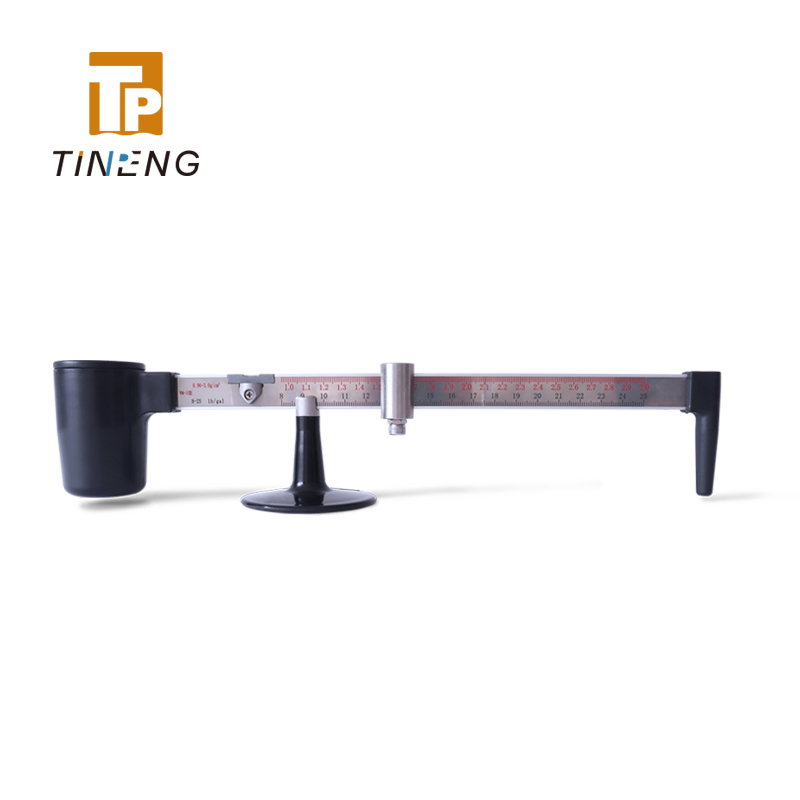

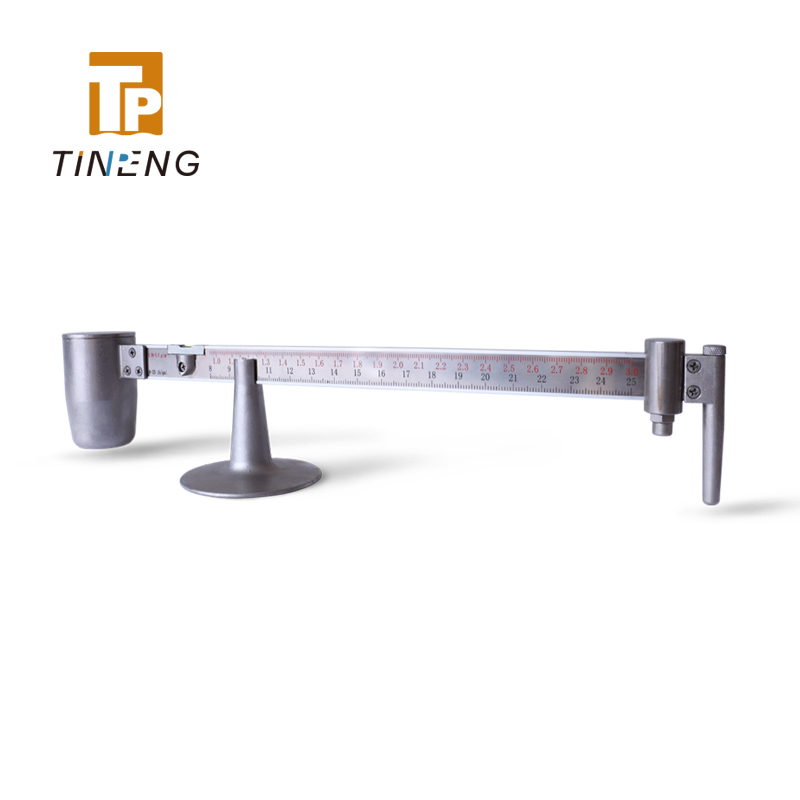

Mud balance
The mud balance provides a simple method for the accurate determination of mud density. The durable construction of the mud balance makes it ideal for field use. Principally the balance consists of a base and graduated arm with cup, lid, knife-edge, rider, built-in spirit level, and counter-weight. The constant volume cup is affixed to one end of the graduate arm and the counter weight on the opposite end. A plastic carrying case is provided that holds the balance in working position.
Model YM series mud balance is made of plastic.
Model XYM series mud balance is made of stainless steel.

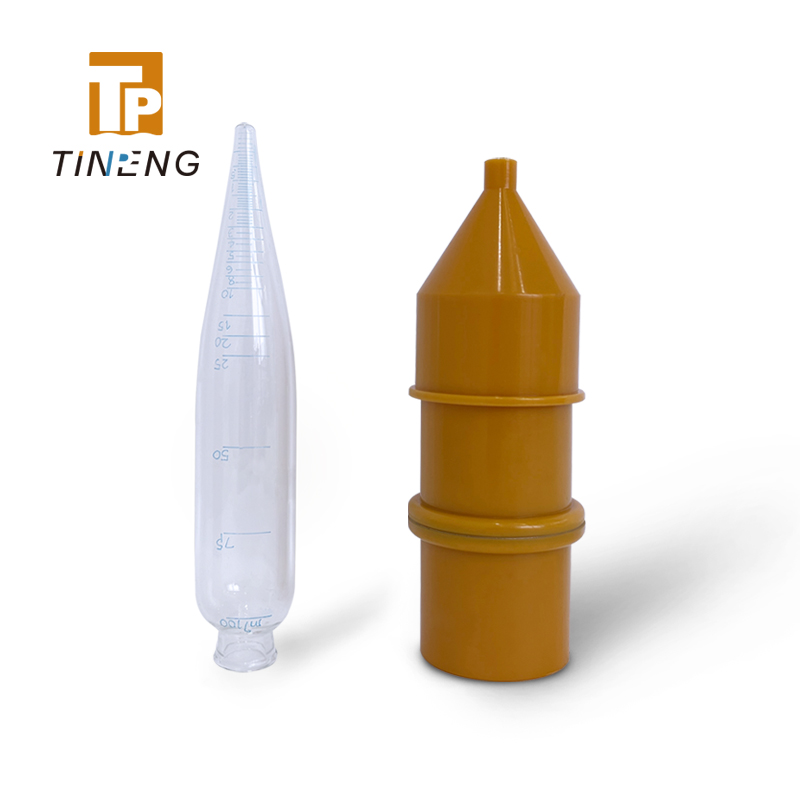

Sand content test kit
Sieve analysis apparatus for determining the sand content of drilling muds. The kit consists of a special 200 mesh sieve 2½” dia., fastered inside a collar upon either end of which fits a small funnel.

TECHNICAL PARAMETERS

Marsh funnel viscometer
Sieve: 200 mesh
Top dia.: 150 mm
Nozzle length and internal dia.: 50x5 mm
Total length: 355 mm
Weight approx.: 0.5 kg

Mud balance
Accuracy: 0.01g/cm3
Mud capacity: 140cm3
Measurement range:
    YM-1/XYM-1  0.96-2.0g/cm3 /(8.0-171b/gal )
    YM-2/XYM-2  0.96-2.5g/cm3 /(8.0-211b/gal )
    YM-3/XYM-3  0.96-3.0g/cm3/(8.0-251b/gal )
    YM-5/XYM-5  0.7-2.4g/cm3 /(5.8-201b/gal )
    YM-7/XYM-7  0.1-1.5g/cm3 /(0.8-131b/gal )
