EDC-3A

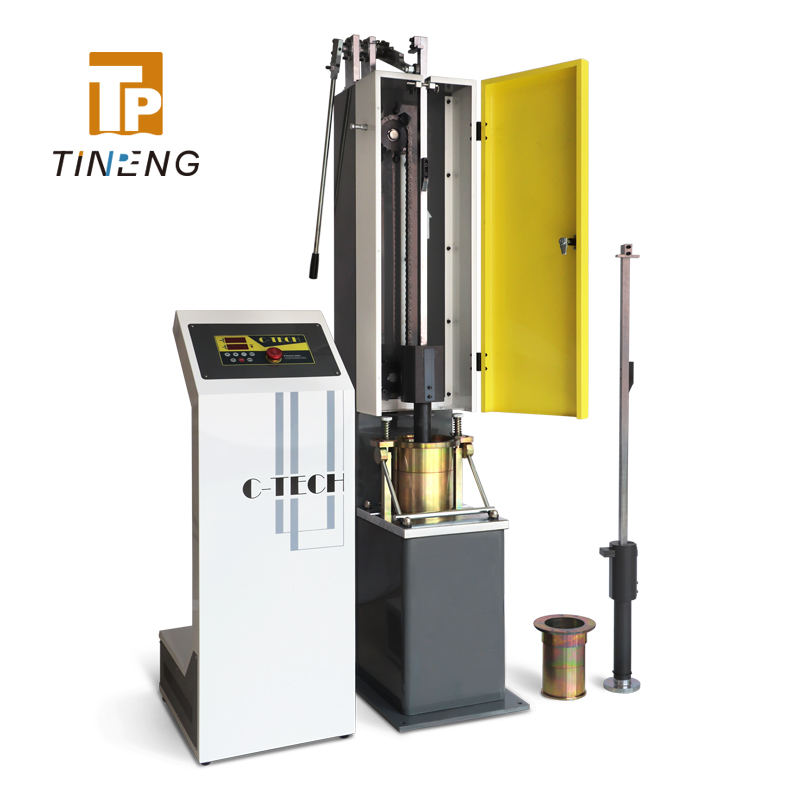

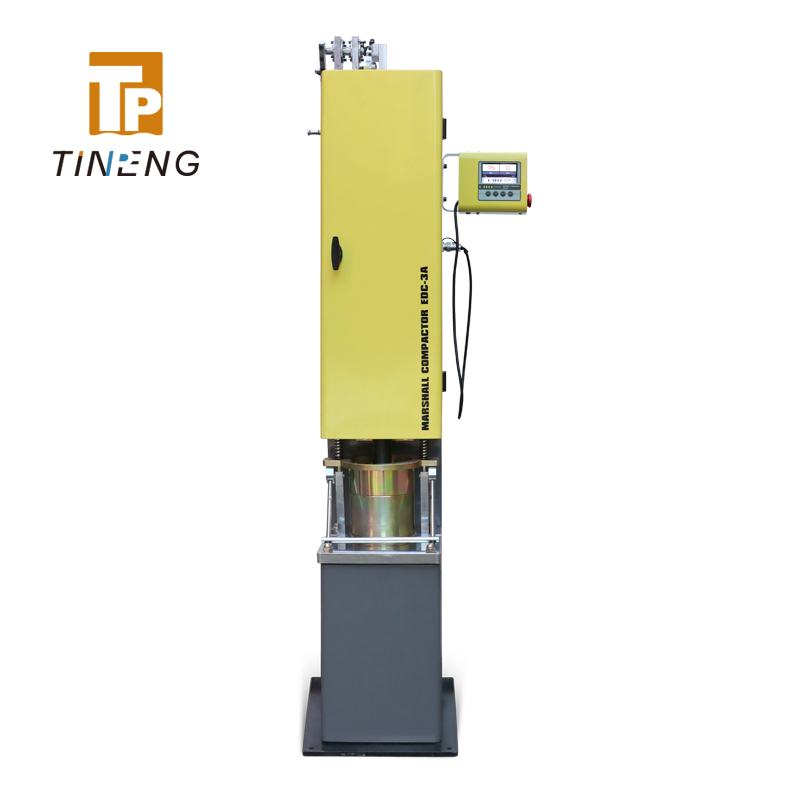

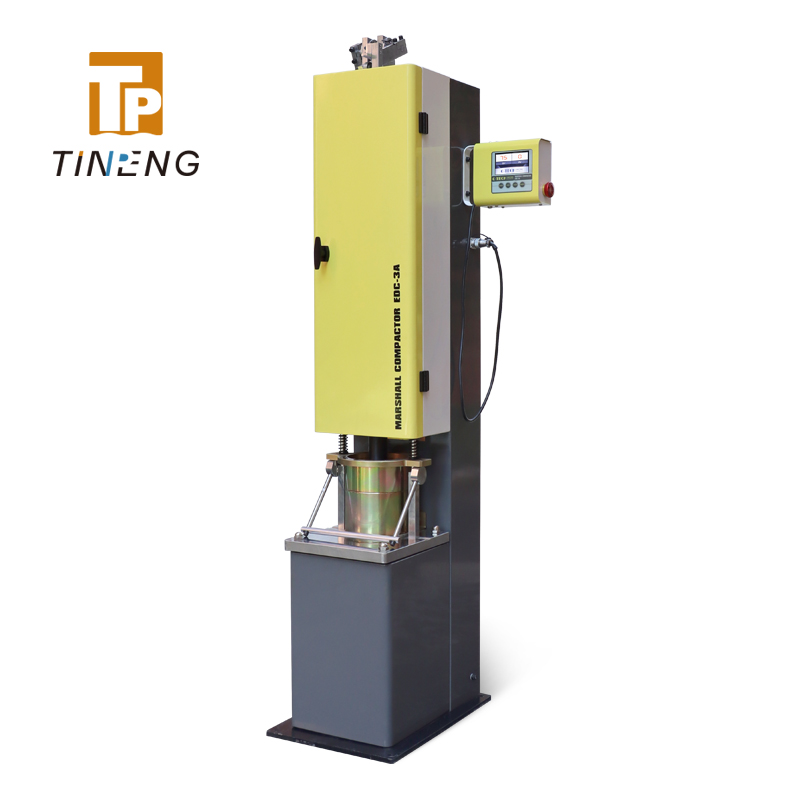

The Marshall compactor EDC-3A is used to make asphalt mixture specimens by standard compaction method for testing the physical and mechanical properties of asphalt mixture in the laboratory.

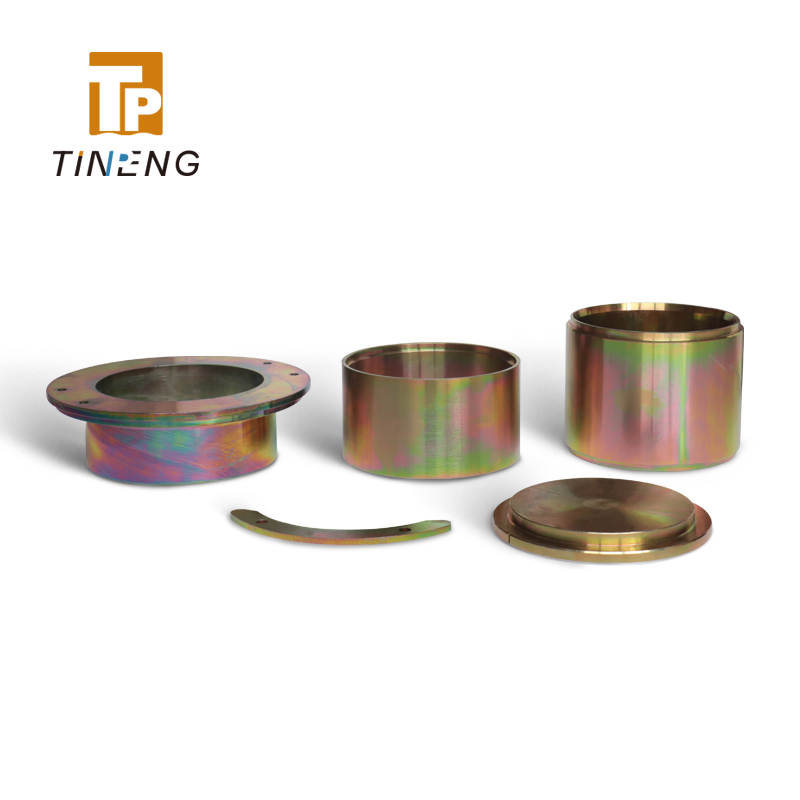

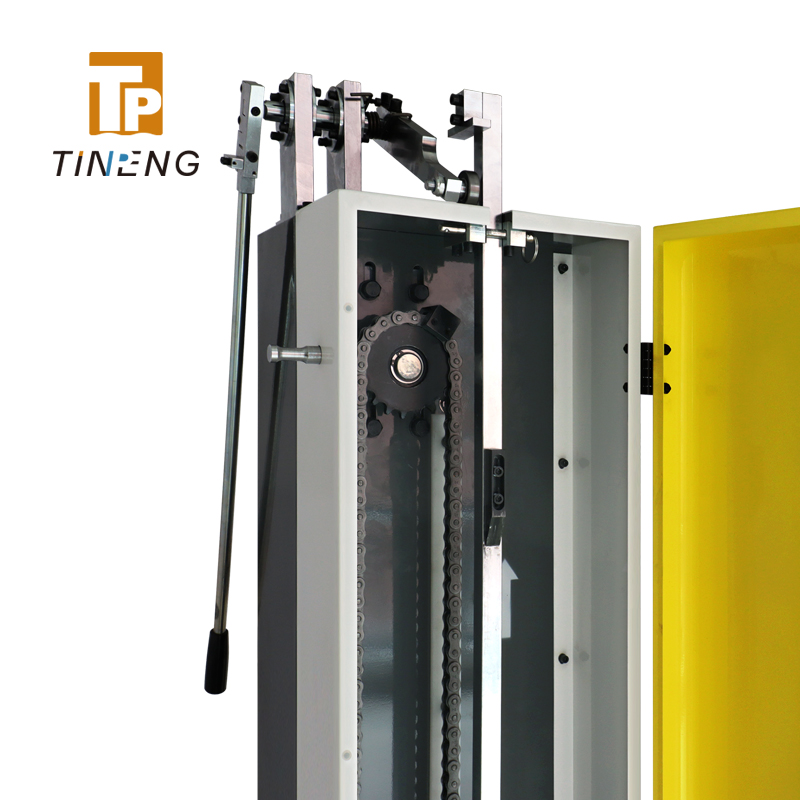

Get Wholesale PriceThe Marshall compactor EDC-3A is used to make asphalt mixture specimens by standard compaction method for testing the physical and mechanical properties of asphalt mixture in the laboratory. It is suitable for the forming of Φ152.4mm (±0.2mm) × 115mm / Φ101.6mm (±0.2mm) × 63.5mm cylindrical specimens used in Marshall test and indirect tensile test. EDC-3A has a manual lever hammer lifting device.
TECHNICAL PARAMETERS
Power supply: Three-phase three-wire 380V, 0.3KW
Drop height: 457mm±1.5mm

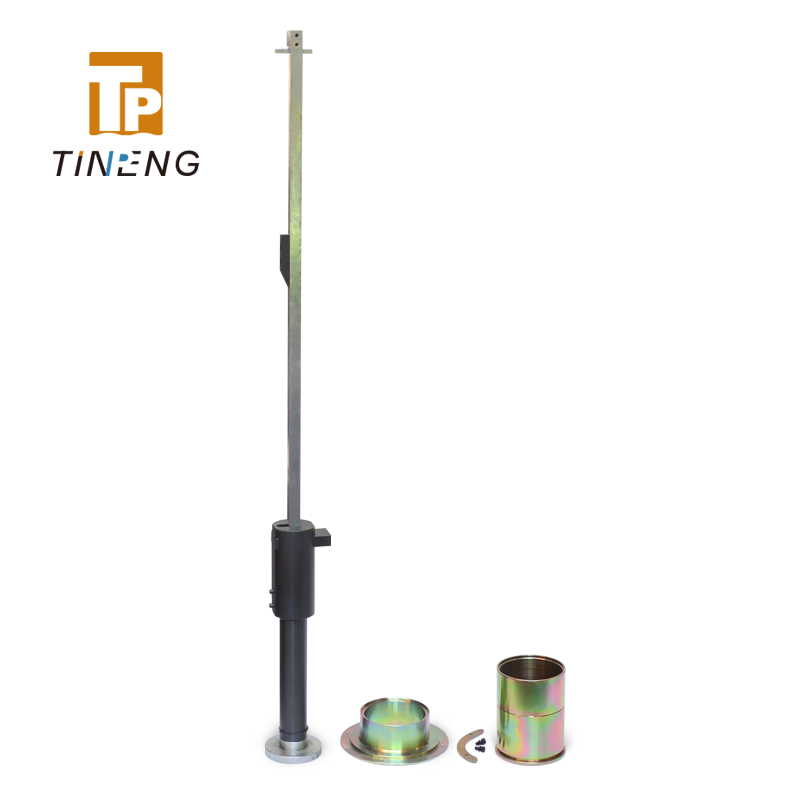

Hammer weight: 10210g±10g/4536g±9g
Compaction speed: 55±5 times/min

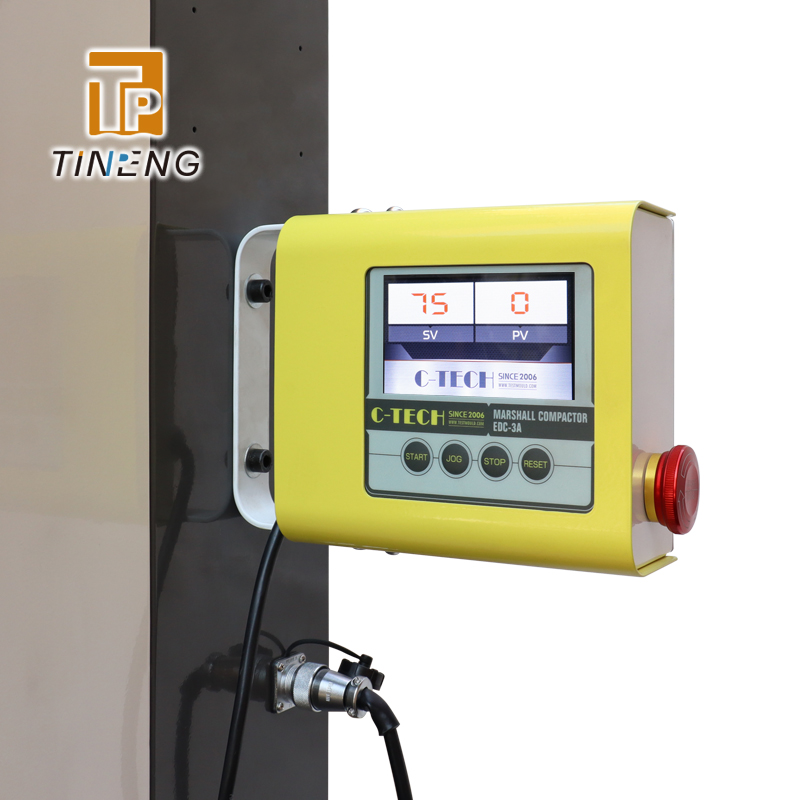

Preset compaction times: Maximum 9999 time
Specimen size: Φ152.4mm（±0.2mm）×115mm/ Φ101.6mm（±0.2mm）×63.5mm
The Marshall compactor EDC-3A supports both φ152.4mm(±0.2mm)×115mm and φ101.6mm (±0.2mm)×63.5mm cylindrical specimens used in Marshall test and indirect tensile test. EDC-3A has two sizes of hammer weight.
