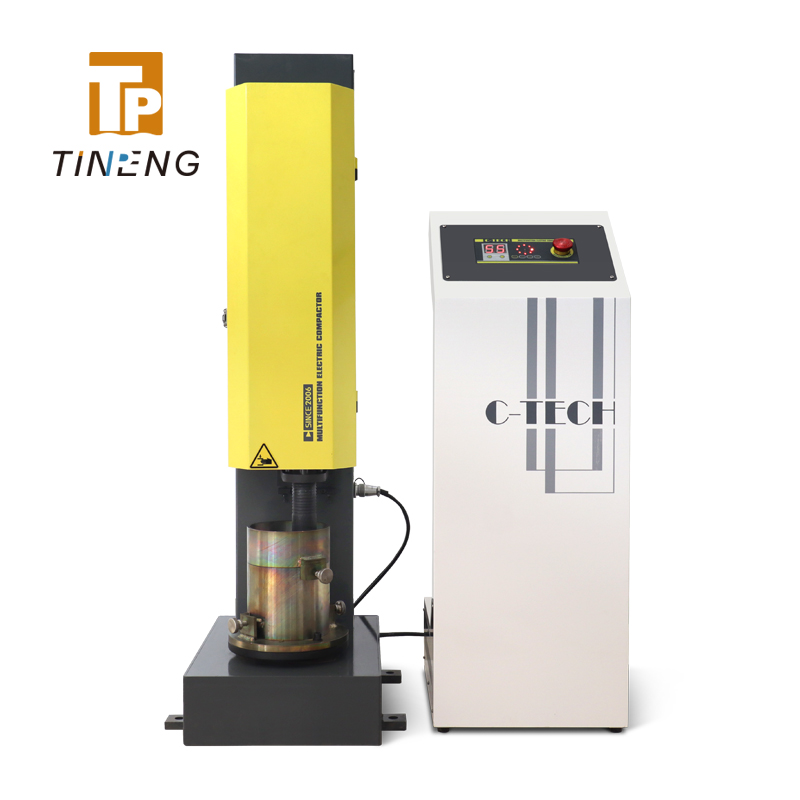

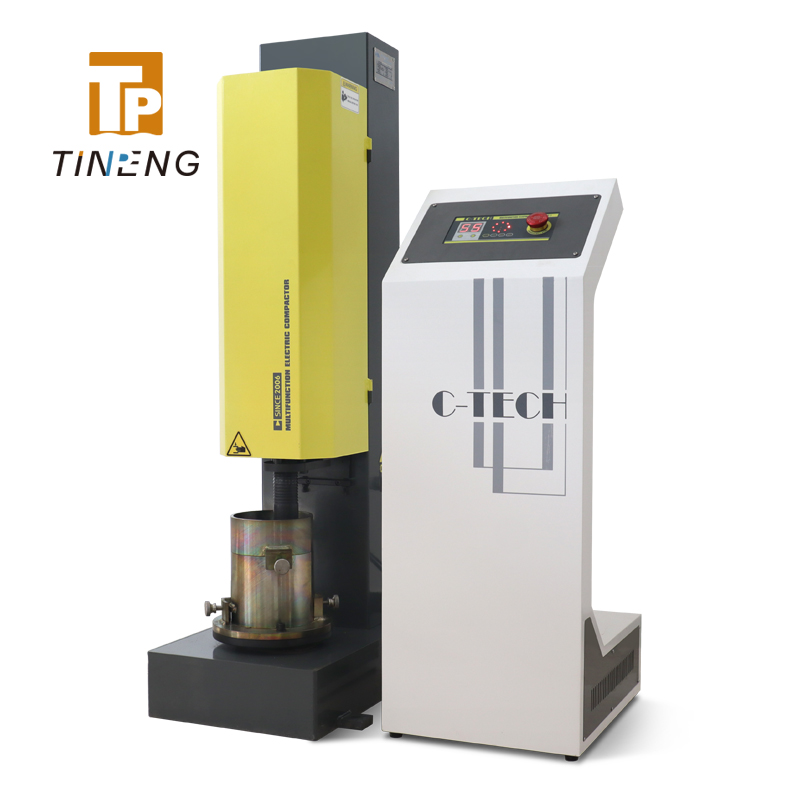

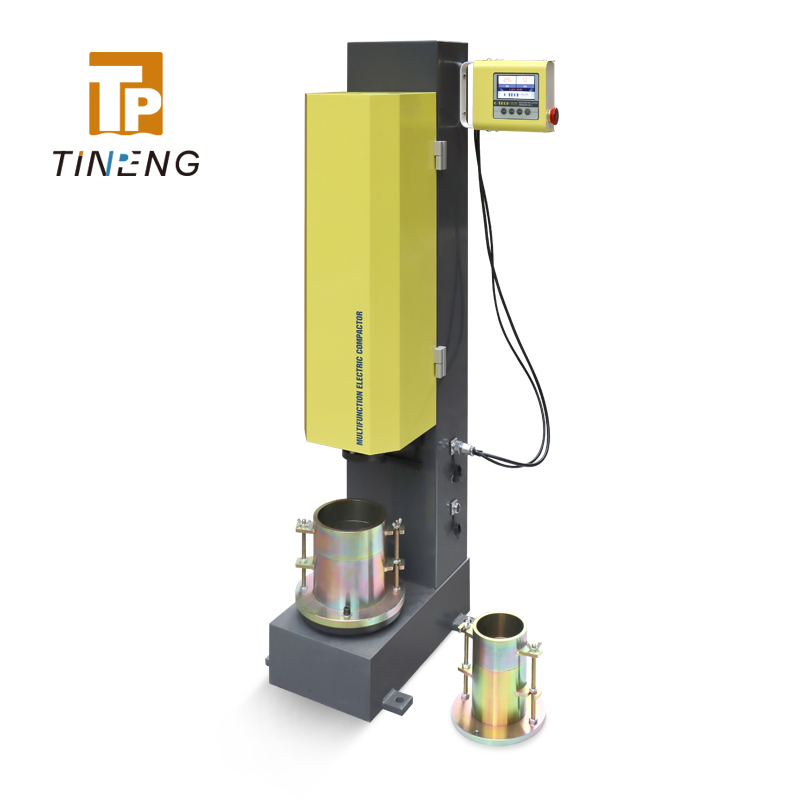

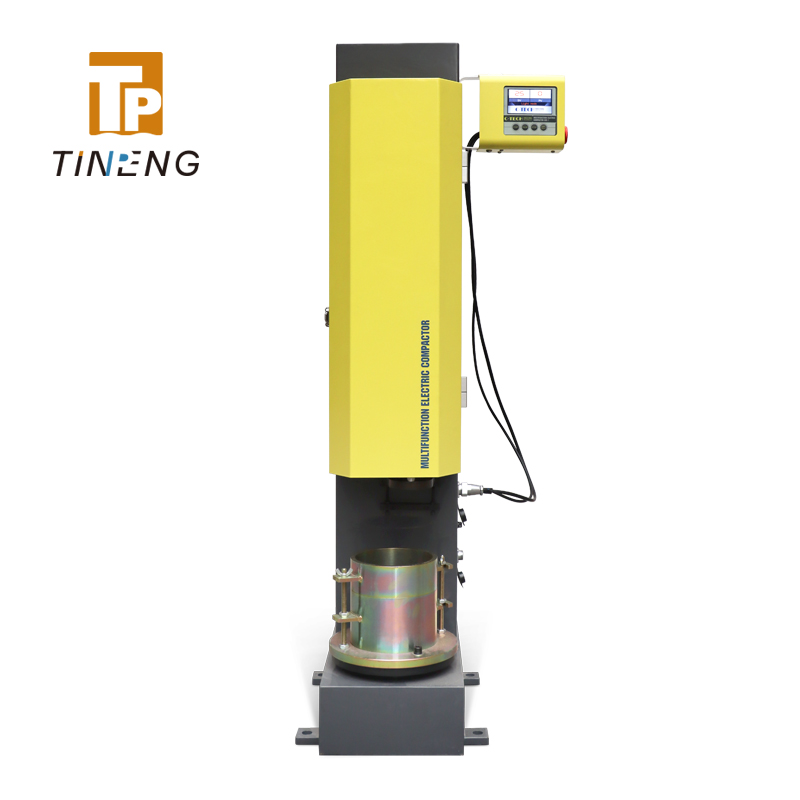

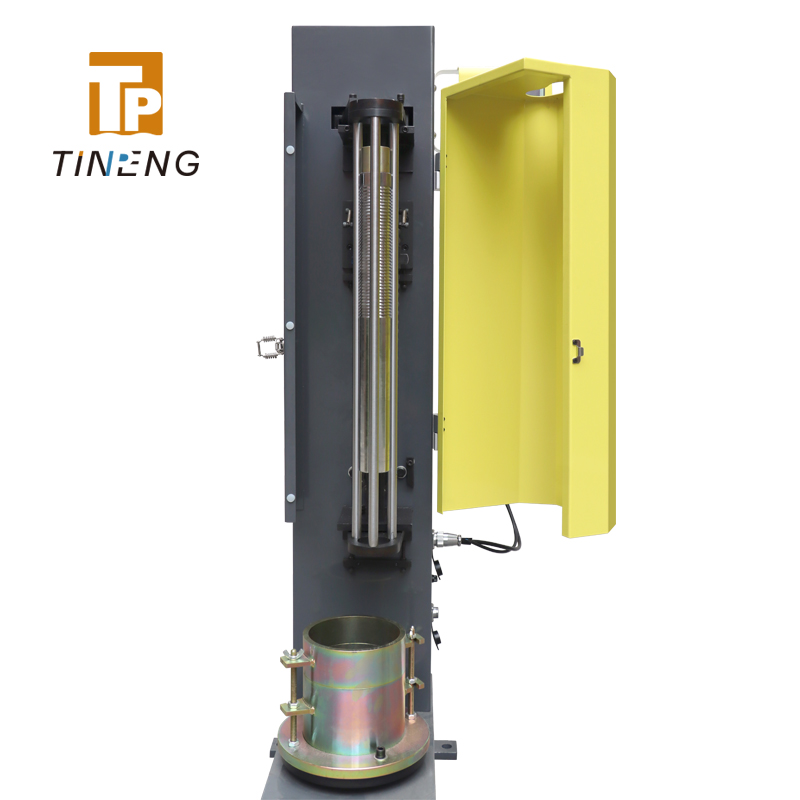

EDC-1
It is suitable for the foundation engineering construction such as water conservancy dam, traffic, railway, airport and building etc. With standard compaction method to determine the relationship between density and water ratio, then confirm the dry density and moisture content of soil.
It is suitable for the foundation engineering construction such as water conservancy dam, traffic, railway, airport and building etc. With standard compaction method to determine the relationship between density and water ratio, then confirm the dry density and moisture content of soil.
It could satisfy the specimen preparation requirements of CBR tests and resilience modulus tests.

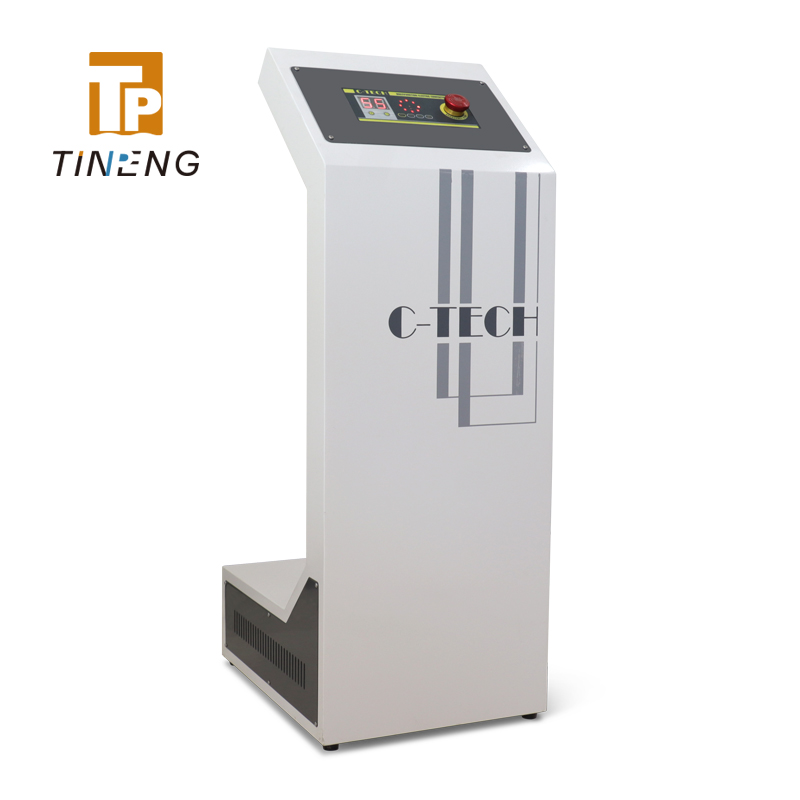

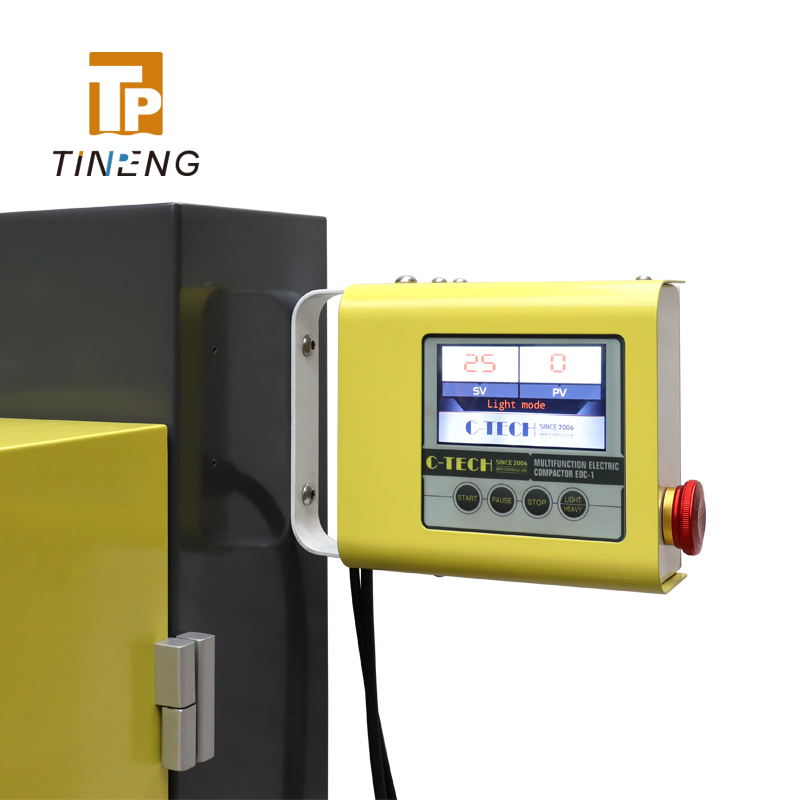

It could provide sand module and spodosol module of dia. 152 and dia. 100. It could perform light compaction and heavy compaction. With perfect designation, it has lots of specialties such as digital display, auto number and auto circulation etc.

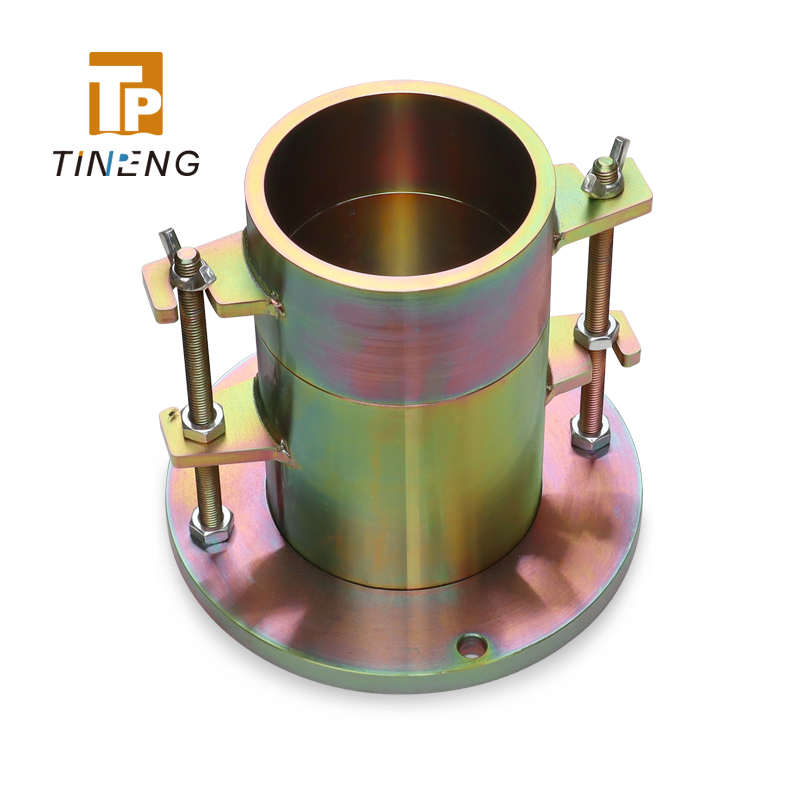

Compaction mould need to be ordered separately.
TECHNICAL PARAMETERS
Heavy-duty compacting test: hammer weight 4.5kg, drop height 450mm
Light-duty compacting test: hammer weight 2.5kg, drop height 300mm
Specimen cylinder dia.: dia. 100, dia. 152 mm
Hammer head dia.: dia. 50 mm
Compacting number: 30 times/min
Power: 370 W, 380 V, 1400 r/min
Dimension: 650×400×1320 mm
Weight: 130 Kg
