EDC-2/EDC-3/EDC-4

Marshall compactor is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard.

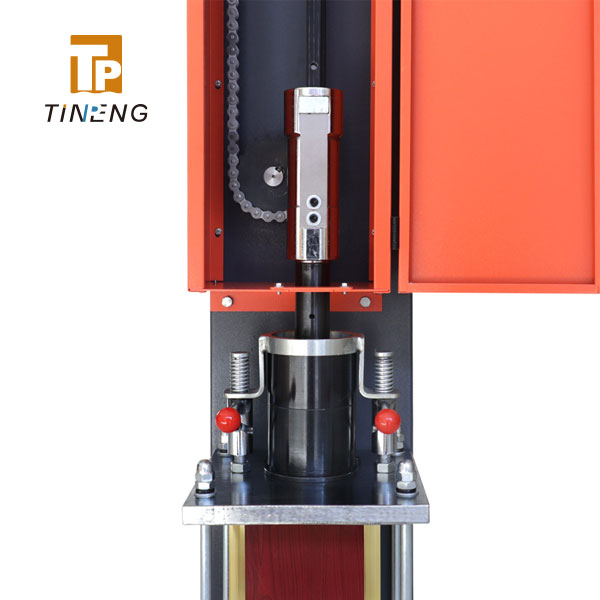

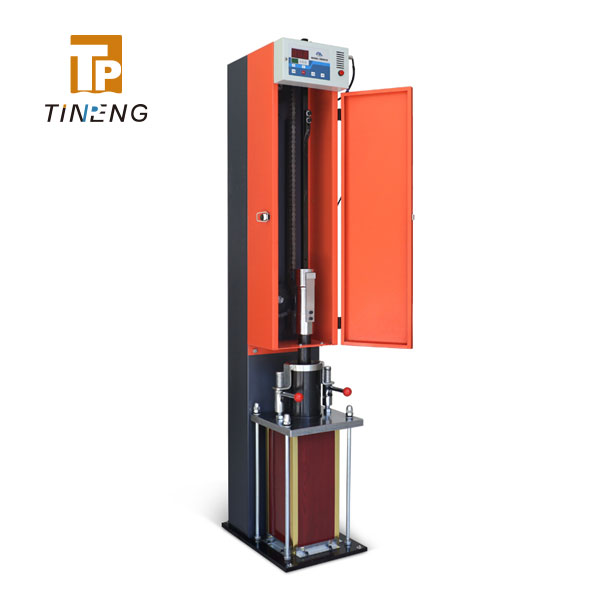

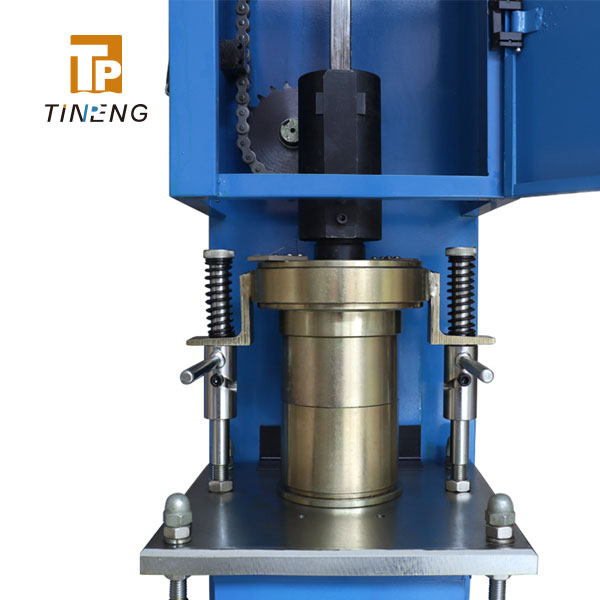

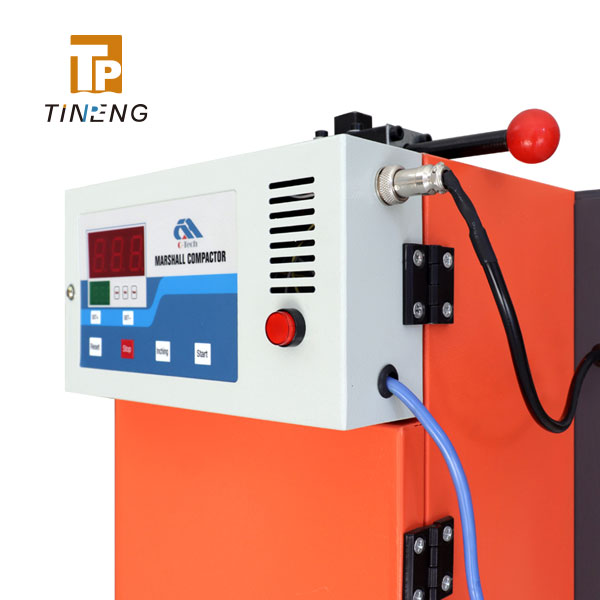

The digital controlled marshall electric compactor is suitable for preparing bituminous mix specimens (dia. 101.6mm x 63.5mm) used in marshall stability testing. The trip mechanism is designed to make the hammer fall at the same distance for every stroke. With some features of digital control, compact times to be preset freely, auto counting and easy to operate etc.

Compaction mould need to be ordered separately.

TECHNICAL PARAMETERS

EDC-2
Hammer weight: 4536g
Drop height: 457.2±2.5mm
Compacting speed: 60±5 times/min
Specimen cylinder diameter: Φ101.6mm
Counting range: 1-999 times
Rated voltage: AC380V 50HZ
Motor power: 250W, 1400RPM
Dimensions: 550×330×1800mm
Weight: 150kg

EDC-3
Hammer weight: 10210g
Drop height: 457.2±2.5mm
Compacting speed: 60±5 times/min
Specimen cylinder diameter: Φ152.4mm
Counting range: 1-999 times
Rated voltage: AC380V 50HZ
Motor power: 250W, 1400RPM
Dimensions: 550×330×1800mm
Weight: 160kg

EDC-4
Hammer weight: 10210g±5g, 4536g±5g
Drop height: 457±1.5mm
Compacting speed: 60±5 times/min
Specimen cylinder diameter: Φ152.4mm, Φ101.6mm
Counting range: 0-999 times
Power: 380V, 75W
Ambient temperature: 5～40℃
Ambient humidity: ≦85%
Dimensions: 700×500×1700mm
Weight: 170 kg

Brochure.pdf

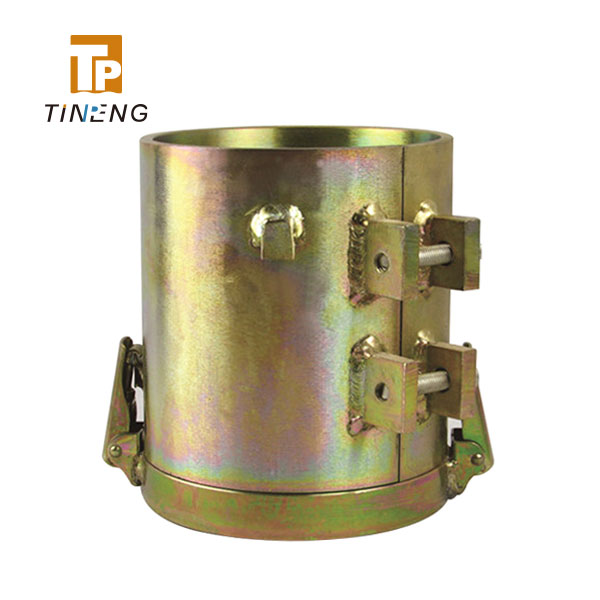

P.R.D Split Mould and Baseplate 76-B0088

Used to determine the degree of compaction of asphalt for road pavement quality control testing. The unit consists of a mould split vertically on one side together with a clampattached baseplate. Plated for protection against corrosion.
Need to be ordered separately.

Int. dia: 152.4mm Height: 160mm
Weight: 10.9 Kg
