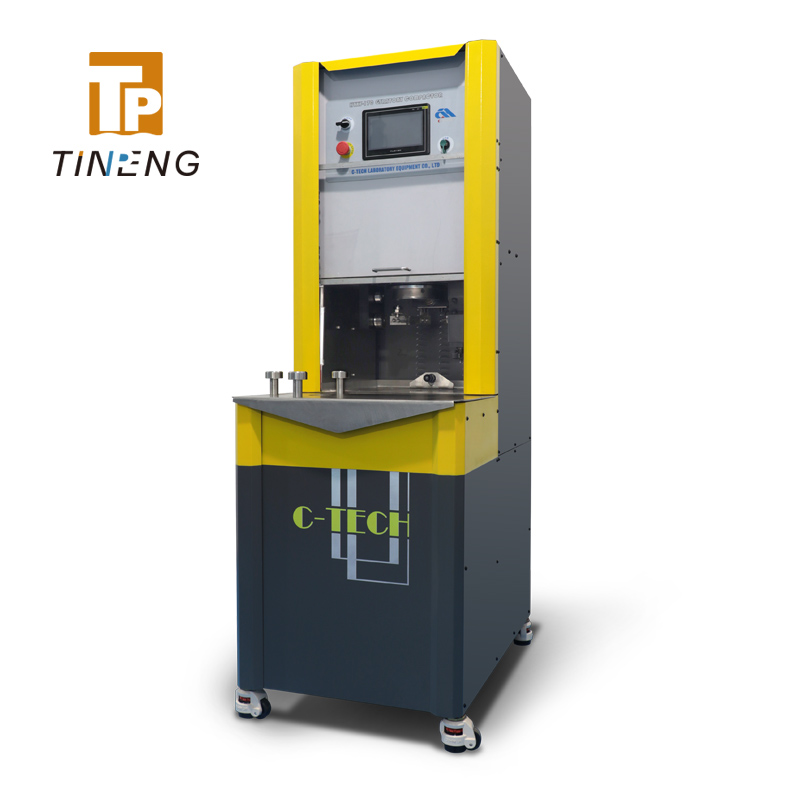

HTHY XY170

The Gyratory Compactor produces asphalt specimens that best predict long-term pavement performance. This information is not attainable from Marshall hammers or any other laboratory compaction equipment. Automatically measuring the specimen height during consolidation, produces a densification graph that the designer can use to produce the best possible paving mixture.

MAIN FEATURES:
- Highly rigid steel frame ensuring excellent angle control, to meet the strict tollerances requested by EN Specifications.
- Electro-pneumatic action with servo-controlled regulator.
- Electronic control unit with touch screen color display, that runs like a standard PC based on Windows operating system.
- Software for acquisition and PC data processing.
- The touch-screen icon interface allows an easy set up of the parameters and immediate automatic execution of the test, data acquisition,processing, graphics and file.
- Unlimited memory storage with 2 USB ports

TECHNICAL PARAMETERS

Power: 220～240V 50/60Hz 1000W
Displacement range: 0~250mm
Specimen height range: 30-170mm
Rotary compacting displacement accuracy: <0.10mm
Rotation Angle:Intemal angle to 1.16 to AASHTO T312/ ASTM D6925, adjustable to any other value between 0.7° and 1.4°.
Vertical load: 600Kpa preset,0～1000Kpa adjustable
Rotation speed : 0-50r/min adjustable
Number of gyratory: 0~999
Mould: ø 150mm , ( ø 100mm can be customized )
Laboratory air compressor : 220～240V 50/60Hz 1Ph
Outside size(mm): 900X700X1800(LXWXH)
Package Dimension(mm): 1000X800X1950(LXWXH)
Mould weight: 7.5 kg
Weight: 400 kg

Brochure.pdf

Laboratory air compressor

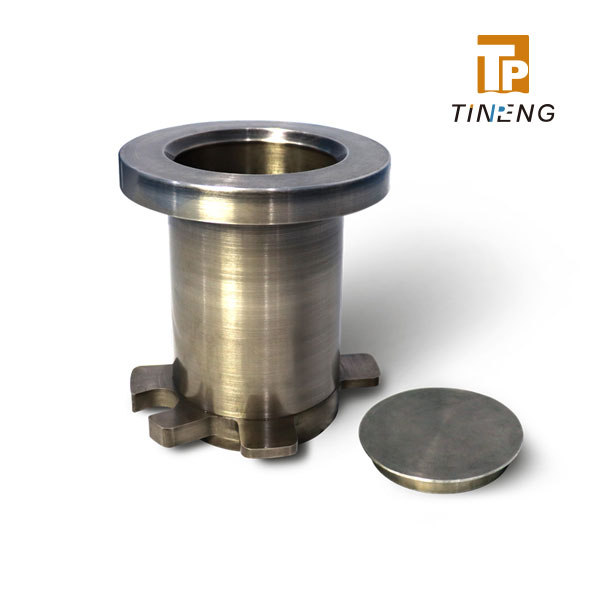

One dia. 150mm cylinder mould
Height calibration block
Air pipe 5 meters
