SYD-0850

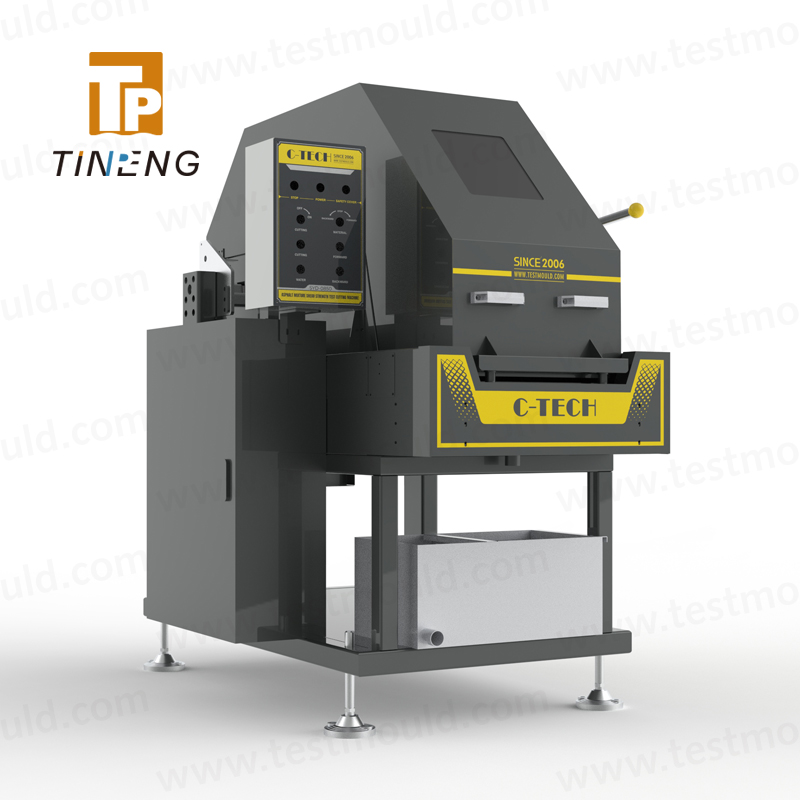

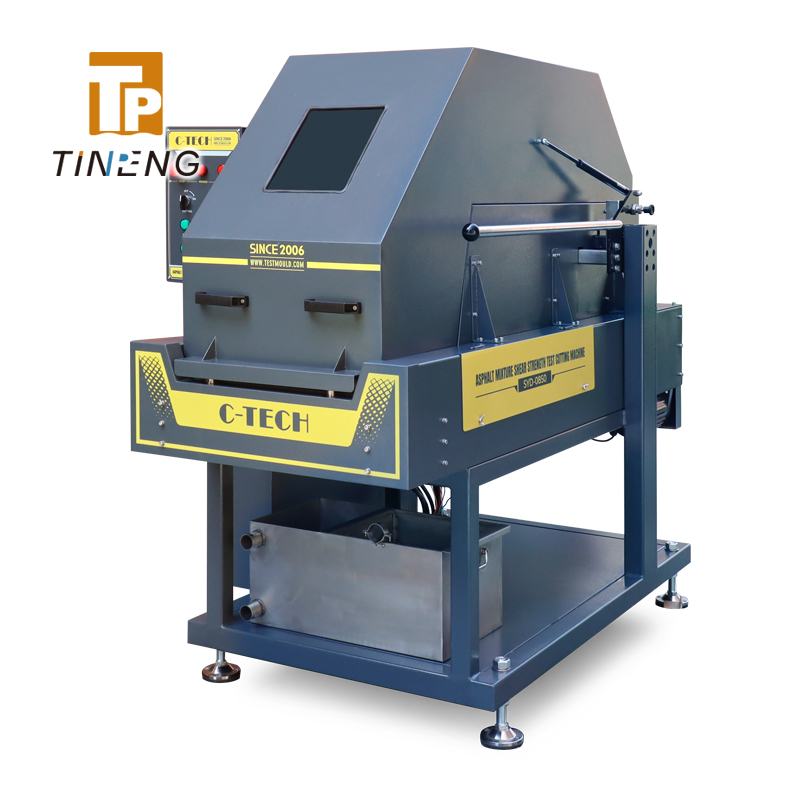

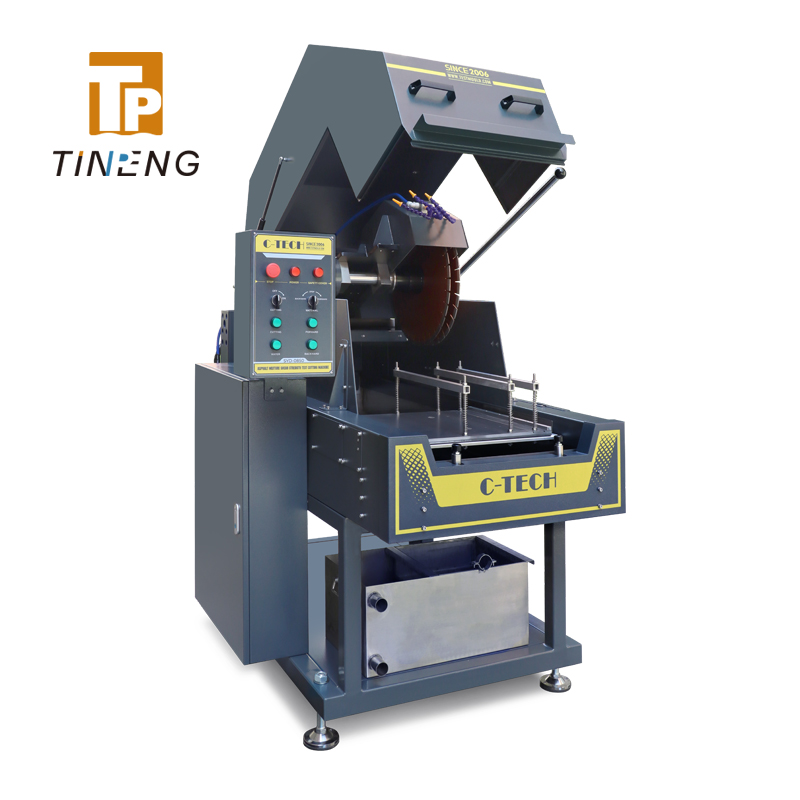

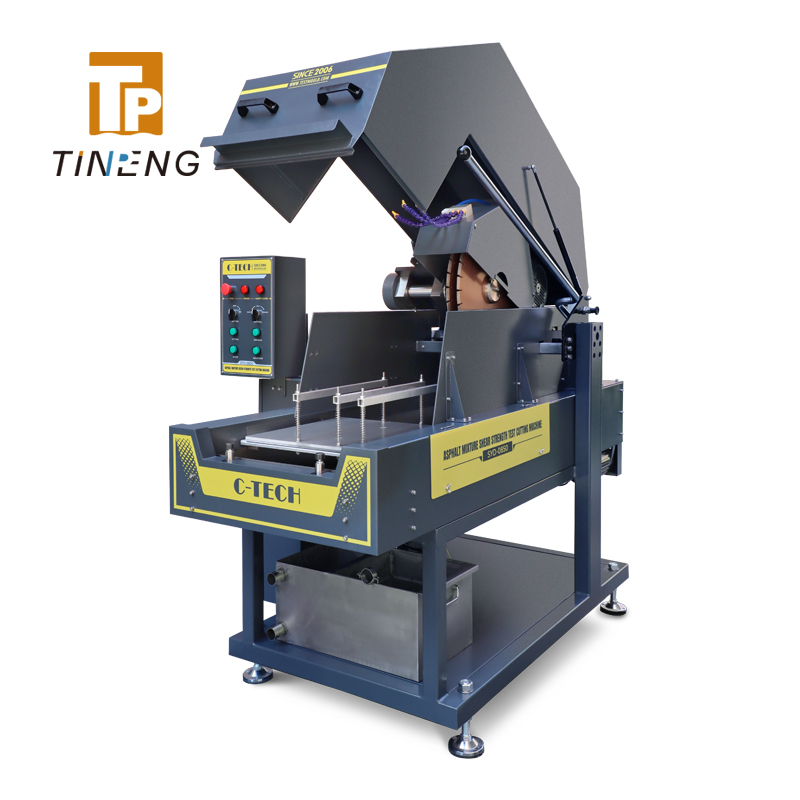

SYD-0850 Asphalt Mixture Shear Strength Test Cutting Machine is used to cut the test specimen that meet the requirements for T 0715 asphalt mixture bending test, T0718 asphalt mixture shear strength test, T0738 asphalt mixture uniaxial compression dynamic modulus test.

Features
1. This instrument consists of two parts: the main machine of the cutting machine and the electrical control box.

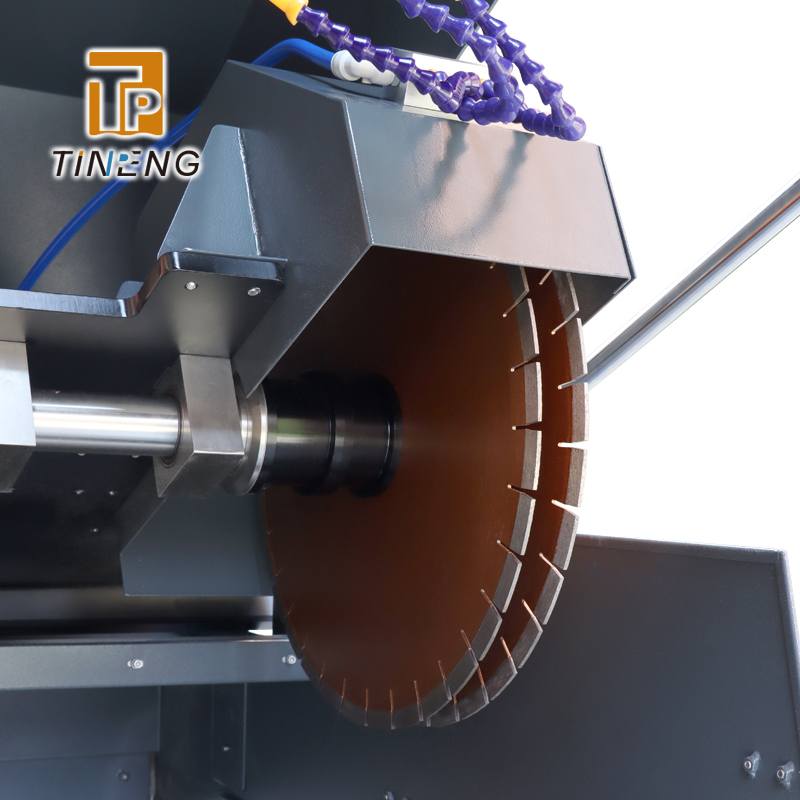

2. Select the most suitable diamond saw blade according to the strength range and gradation composition range of the asphalt mixture;
3. The high-precision transmission system is adopted to ensure the cutting accuracy of the test piece; within the range of 0.15mm to 0.2mm;
4. Double blade design, the feed speed of saw blade is adjustable;

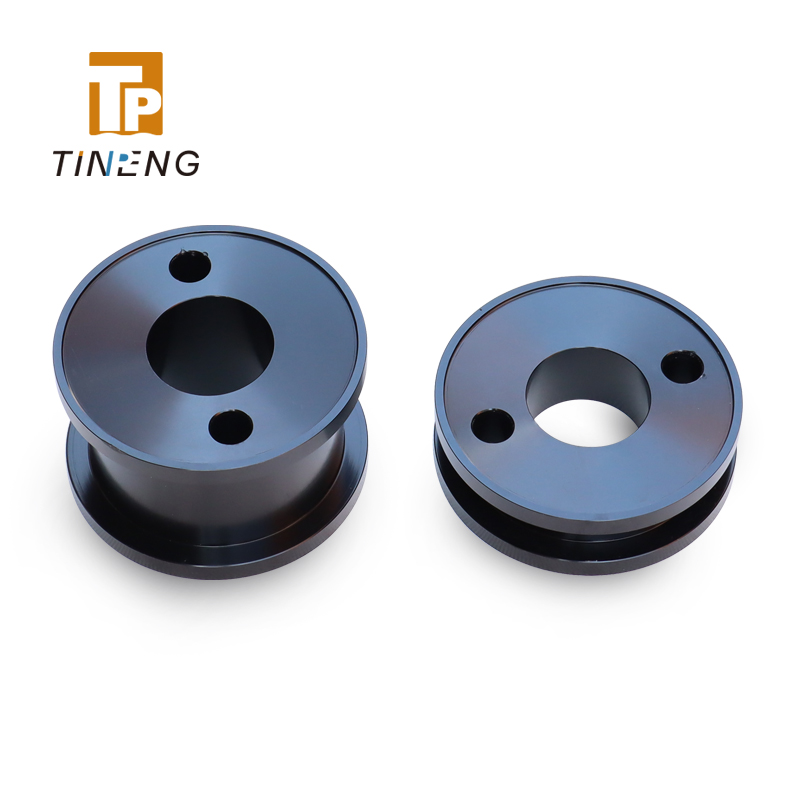

5. Changing the different sheet clamps can realize the function of cutting multiple test pieces, and the operation is simple and convenient;
6. Fully sealed protective cover, safe to use and low noise;
7. The whole cutting process is fully controlled by the controller.

TECHNICAL PARAMETERS

Voltage: AC(380±7%)V,50Hz
Cutting power: 4000W
Motor waterproof class: IP65
Saw blade rotating speed: 3000r/min
Saw blade diameter: φ470mm
Specimen: Cube specimen thickness from 25mm to 150mm; Cylinder specimen diameter of D100mm (Standard); Cylinder specimen diameter of D150mm (the clamping device should be ordered separately)
Total power consumption: 5000W
Working condition: 5~35ºC/Relative humidity ≤85%
Net weight: 400kg
Overall dimension: 1800mm×1300mm×2100mm (cutting machine); 700mm×300mm×1200mm (controller)
