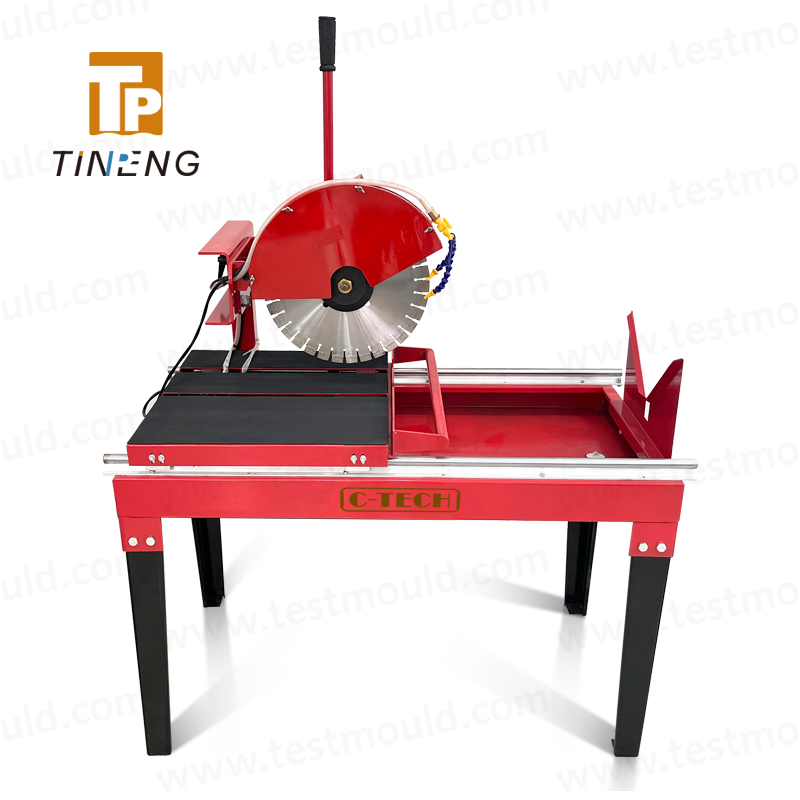

TBA-350

The sawing machine is one of the test apparatus required to perform the test and it is used to cut the rock piece to give test portions.

Features
· Strong power and high cutting efficiency;
· Upright legs, more stable cutting operation;
· Manual feed, flexible and convenient cutting;
· Self-priming pump, circulating water system, cutting water delivery is more environmentally friendly.

TECHNICAL PARAMETERS

Rated voltage: 230V/50Hz
Rated power: 2200W
Cutting materials: block,brick
Max cutting depth: 90mm(90°) 50mm(45°)
Cutting length: 650mm
Rated speed: 2800rpm
Blade diameter: 350mm
Arbor size: 25.4mm
Cutting angles: 90°,45°
Weight: 72kg
Dimensions L x W x H: 1276x736x862 mm
