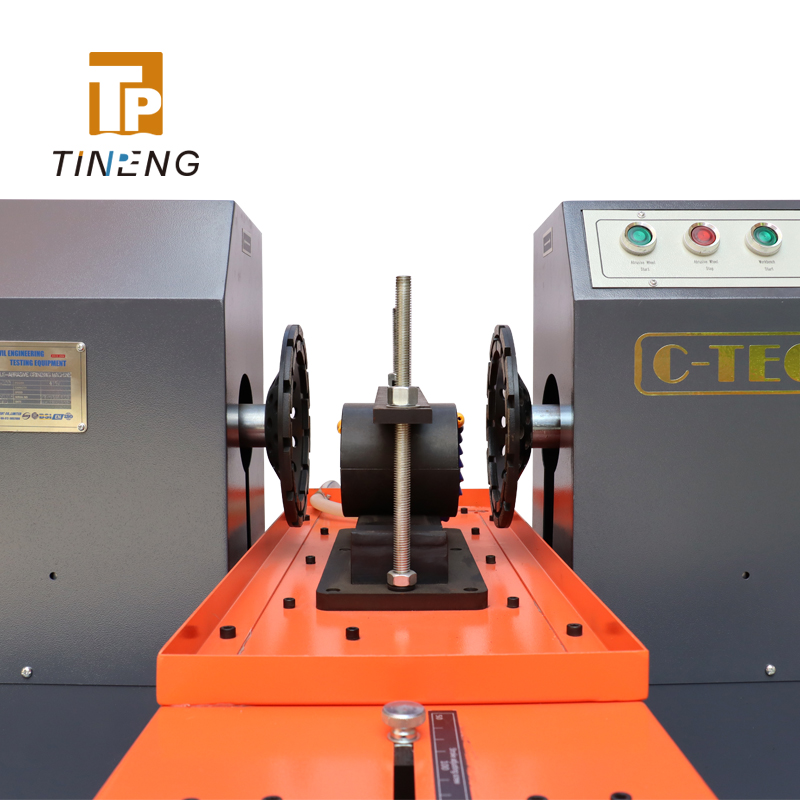

SCM-200
Used to grind and polish concrete specimens, natural stones, ceramic materials, rock samples etc.The cube cylinder and core specemens can be easily locked on the table and the grinding head can be radially moved either manually or automatically in both directions so the only manual operation requested is the lowering of the grinding head by the top hand wheel.
STANDARD
- ASTM D4543
Get Wholesale Price
Used to grind and polish concrete specimens, natural stones, ceramic materials, rock samples etc.The cube cylinder and core specemens can be easily locked on the table and the grinding head can be radially moved either manually or automatically in both directions so the only manual operation requested is the lowering of the grinding head by the top hand wheel. The machine is supplied complete with chip guard, coolant tank, motor pump, one set of abrasive sectors and instruction manual. Diamond grinding sectors are available on request.
SCM-200 Double-Abrasive grinding machine is supplied complete with clamping element for 50, 100, 150 mm cubes. Clamping devices for cylinders are also available on request.
TECHNICAL PARAMETERS
Automatic grinding input: 0.04- 0.12mm
Grinding spec. Specimens: 50-150mm cubes; dia. 50-dia.120mm cylinders
Degree of finish (by standards of rough machining): Ra 3.2
The precision of standard flatness: ±0.05mm (within 50 range)
Diameter of the grinding wheel: 200mm
Cooling devices: receive water cooling
