NJ-RCM
It is suitable for the aggregate less than 25mm (General not more than 20mm) in lab and drilled core (specimen) in situ. Based on the result, it designs the concrete durability design in chloride environment and concrete quality inspection and assessment. According to DuraCrete unsteady electromigration test theory, this method is to quantitatively evaluate the concrete resistance capacity to chloride ion diffusion, and to test the basic parameters with the design and durability of concrete structures and life assessment and prediction in the chloride ion erosion environment.
It is suitable for the aggregate less than 25mm (General not more than 20mm) in lab and drilled core (specimen) in situ. Based on the result, it designs the concrete durability design in chloride environment and concrete quality inspection and assessment. According to DuraCrete unsteady electromigration test theory, this method is to quantitatively evaluate the concrete resistance capacity to chloride ion diffusion, and to test the basic parameters with the design and durability of concrete structures and life assessment and prediction in the chloride ion erosion environment.
Features
·0-60V adjustable voltage, short circuit auto-protect, single channel running time, the whole electric migration process is automatically controlled.
·Embedded computer control, power outages and power-down data storage, advanced technology, well-made, reliable performance, high accuracy.
·LCD display, with real-time display/print and analysis function, the computer screen can display the data at real-time, can be separated from PC to use directly;
·Standard RS232 serial communications with fully automatic PC connection software can monitor the processing data, the PC can calculate the result and output the flux test report, and then print for analysis and archiving
·Built-in-analysis and calculation function, after testing, input parameters into the computer and then can automatically calculate test results
·Imported material fixture, high accuracy, easy and smart to use
·Can simultaneously test two(6), three(9), four(12) or five groups(16) concrete block one time
·With the latest smart-in-one vacuum saturated machine

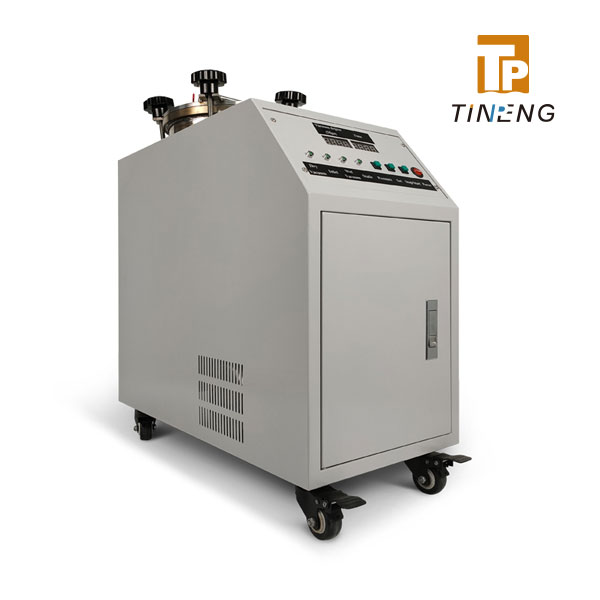

VACUUM SATURATED MACHINE
The intelligent concrete vacuum saturation machine is used for the saturation treatment of the concrete test block, and for the early saturation of the concrete chloride ion electric flux and diffusion coefficient experiment. It is used for passenger rail lines, marine, hydraulic, bridges, tunnels, industrial and civil buildings and other concrete construction durability design, production quality control and project acceptance, and it is one of the necessary equipment of the durability of concrete laboratory in Research institutions. The equipment adopts a number of international current advanced technologies.
The main chip adopts a microprocessor, the whole process is controlled automatically, and it can also be manually set and operated, and the operation is simple. It is designed with total stainless-steel cabinet for strong corrosion resistance. 12 test blocks can be saturated with water in a single test.
TECHNICAL PARAMETERS
Test channels: 6/9/12/16 channels optional
Output current range: 0-400mA
Output current accuracy: ±1mA
Temperature accuracy: ±1℃
Output voltage: 0-60V(±0.1V)DC (adjustable)
Input power voltage: 220V±10/50Hz AC
Kernel: 32 embedded ARM core
LCD: 6.4 inch EPSON industrial touch screen
Host: 385×345×145mm; 5kg

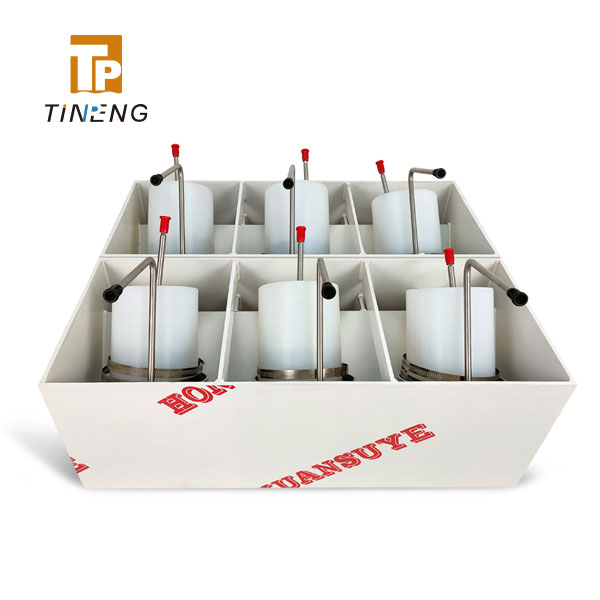

Specimen cells: 6 sets; 610×270×260mm; 9kg
Total weight: 46kg(vacuum saturated machine included)
VACUUM SATURATED MACHINE
Volume: 10L
Vacuum accuracy: ±0.001Mpa
Power: 300W
Power Supply: AC 220V
Console Voltage: DC 5V
Transmitter Voltage: DC 24V
Dimension: 750×680×400 mm
Weight: 32 kg
