16-T0012/D

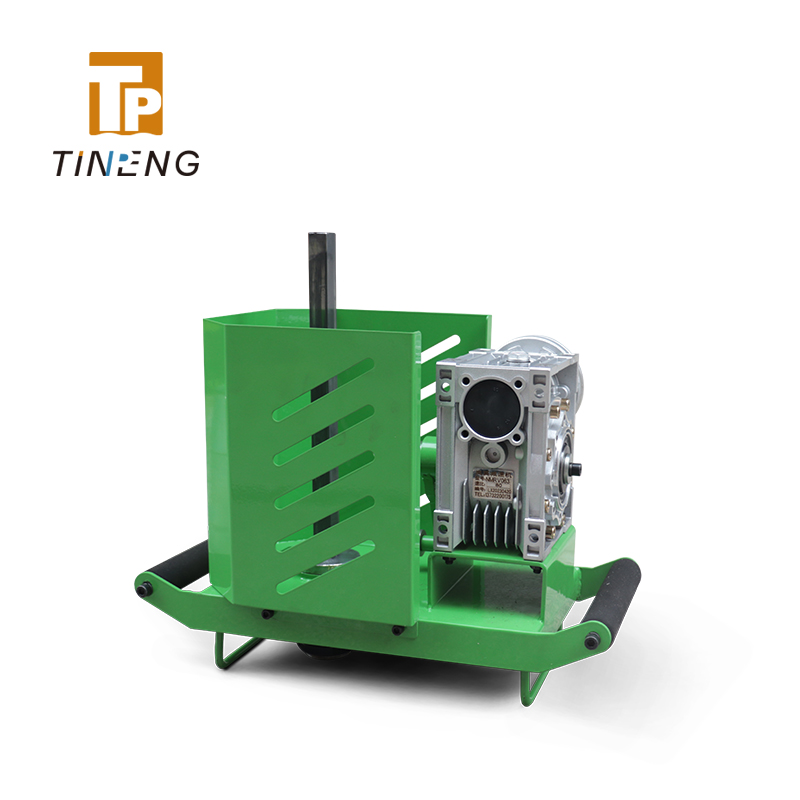

The motor operated dynamic penetrometer 16-T0012/D comprises a 4 stroke engine which drives, through a flexible shaft, the lifting mechanism, a 20 kg weight, a 10 kg supplementary weight, 10 rods, a cone of 10 cm2 size, and rod lifting device.
STANDARD
- DIN 4094
Get Wholesale Price
• The motor operated dynamic penetrometer 16-T0012/D comprises a 4 stroke engine which drives, through a flexible shaft, the lifting mechanism, a 20 kg weight, a 10 kg supplementary weight, 10 rods, a cone of 10cm2 size, and rod lifting device. Drop height 20cm.
• Accessory 16-T0012/D7 Tripod to make easier the use of the apparatus.
• 1.9 kW 4 stroke engine
• Driving rate: up to 45 blows/min

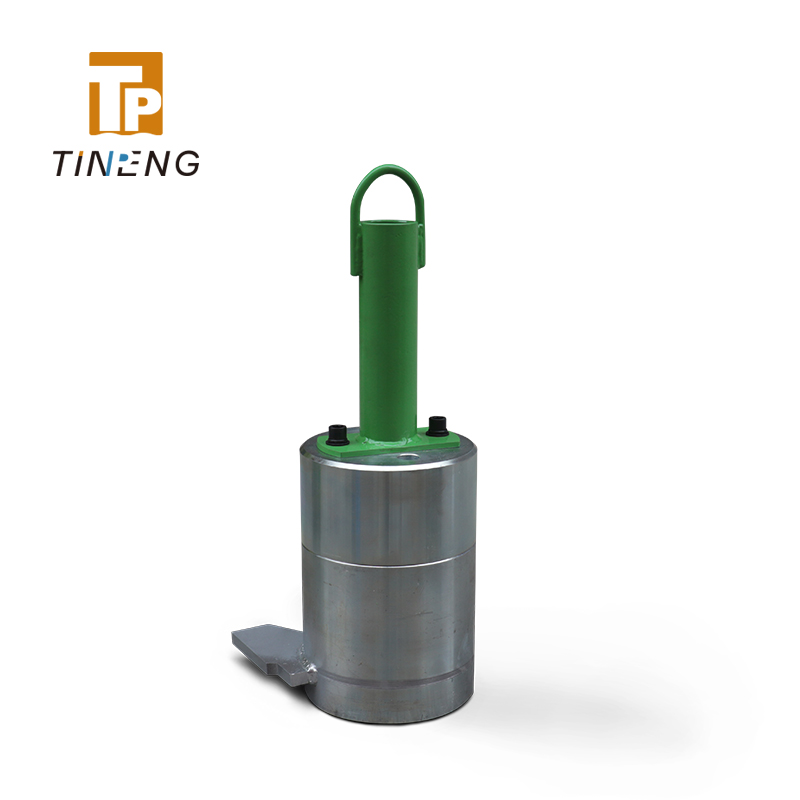

16-T0012/D1 Hammer, 20 kg
16-T0012/D2 10 kg supplementary weight
16-T0012/D3 Drive conical point, area 10 cm2, dia.35.6 mm, angle 60°

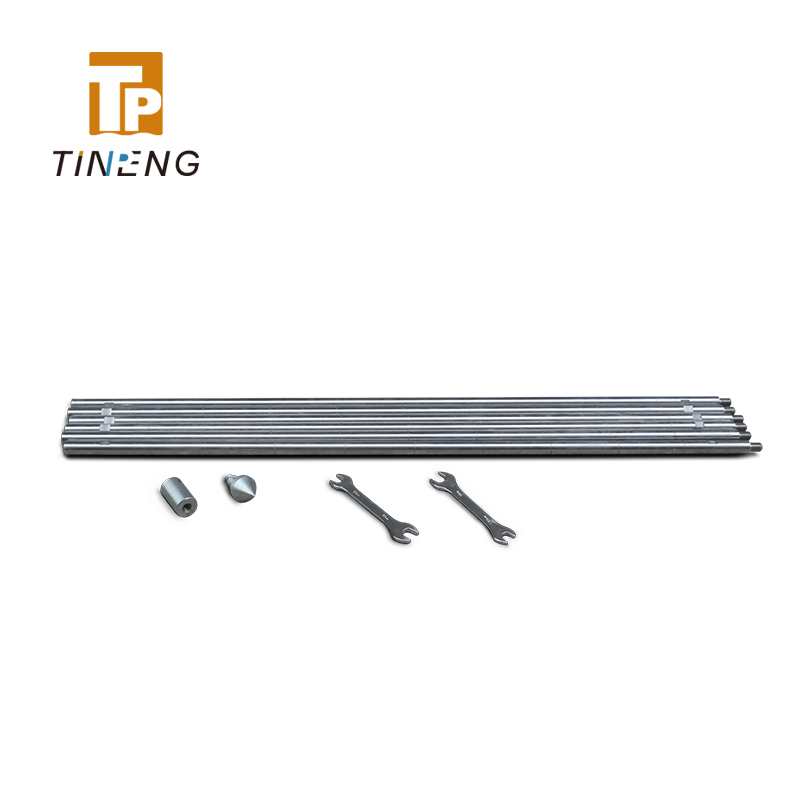

16-T0012/D4 Sounding rod dia.20mm.
16-T0012/D5 4 stroke engine
16-T0012/D6 Lever device for rod extraction
16-T0012/D7 Tripod for hanging the lifting mechanism. including 16-T0012/D8,16-T0012/D9 and 16-T0012/D10. Max. height 2300mm; Weight approx: 18 kg
16-T0012/D8 Hand winch
16-T0012/D9 Hook
16-T0012/D10 Height adjustment lever
Weight: 70 kg approx. (without sounding rods and accessories)
