16-T0013/B
The motor operated dynamic penetrometer 16-T0013/B is manufactured according to Australian standards and is designed to perform soil penetration resistance test, to determine underlying soil strength by measuring the soil penetration of the device into the soil after every blow. The dropping height of this device is 600±5/510±5mm adjustable, and the hammer weight is 9±0.1kg.
STANDARD
- AS1289.6.3.2
Get Wholesale Price
The motor operated dynamic penetrometer 16-T0013-B is manufactured according to Australian standards and is designed to perform soil penetration resistance test, to determine underlying soil strength by measuring the soil penetration of the device into the soil after every blow. The dropping height of this device is 600±5/510±5mm adjustable, and the hammer weight is 9±0.1kg.
The device includes a host part, a drive shaft, a gasoline engine and a manual extractor. The engine drives the lifting mecha-nism through a flexible shaft to lift a 9 kg weight drop to the specified height and make it fall freely.
Built on wheels, which is convenient for transportation and operation.
TECHNICAL PARAMETERS
Power: Briggs & Stratton 3.5HP
Dimensions: 810*600*1680mm
Weight: 70kg

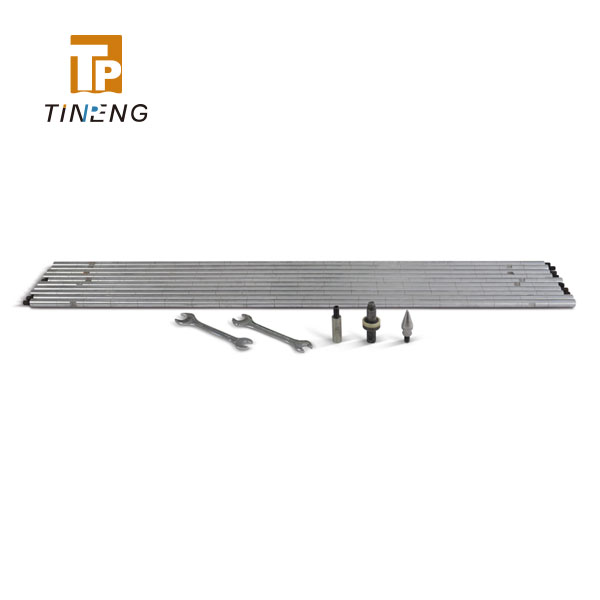

Anvil, 1 pc
Penetration rod, dia.16mm, 10 pcs
DCP cone, 30°, 1 pc
Perth penetrometer tip, 1 pc
Spare flexible shaft, 1 pc
Spanner, 14mm, 2 pcs

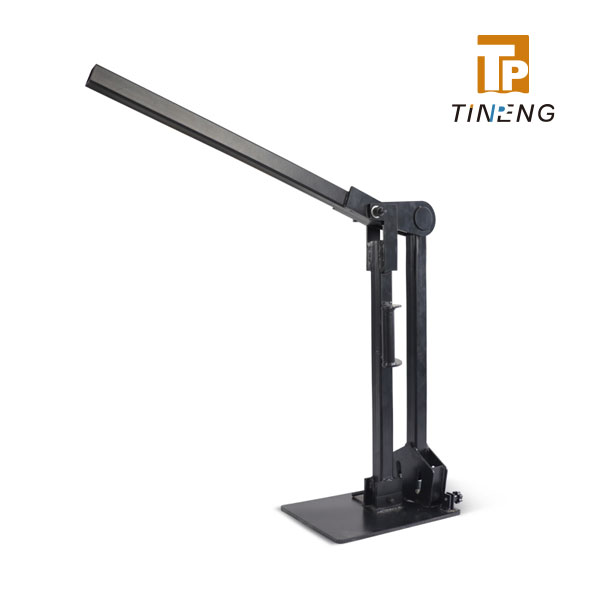

Manual rod extractor
