TPZ-1/TPZ-2/TPZ-3

Sieve shakers are devices designed to help promote particle movement through a stack of sieves, facilitating accurate particle separation.

Note: the sieves need to be order separately.

TECHNICAL PARAMETERS

TPZ-1
Shaking frequency: 500-1400 times/min adjustable
Shaking method: up and down
Shaking amplitude: 2-5 mm adjustable
Time setting: 0-9999s adjustable
Power: 90W
Sieve size: Ø200 x 50 mm (9pieces) or Ø300 x 75mm (7pieces)
Sieve opening: 20 – 0.75 mm
Power supply: 220 V 50 Hz
Dimension: 570×470×360 mm
Weight: 43 kg

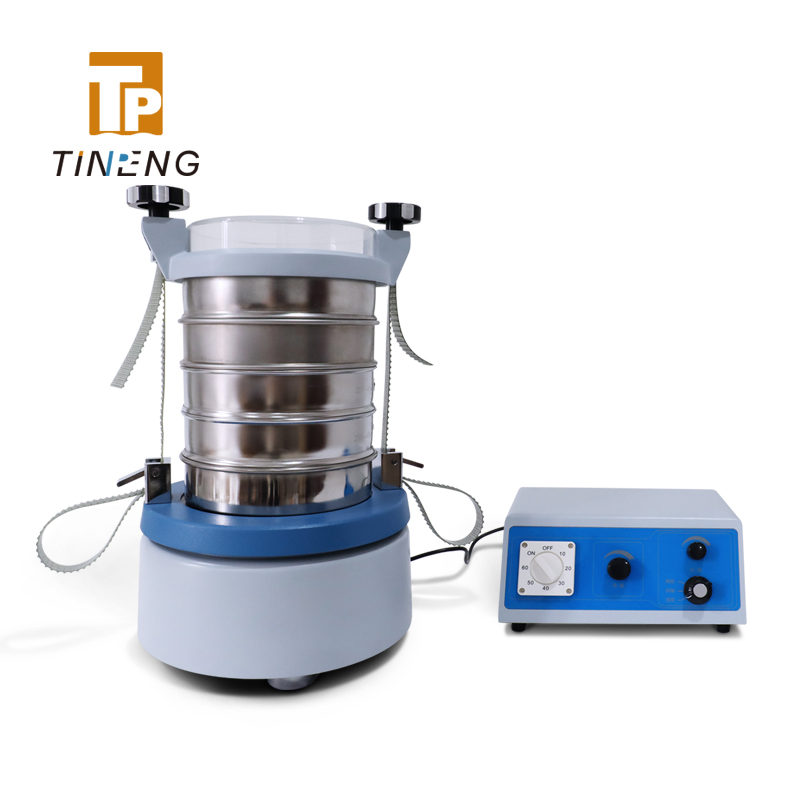

TPZ-2
Operating range: ≤325 mesh
Vibration frequency: 3000 times/min, 6000 times/min
Amplitude selection: 0-3 mm, continuous adjustment
Vibration mode: Fine vibration; Intermittent Vibration; Continuation Vibration
Sieve size: Ø200 x 50 mm
Weight: 20 kg
Power supply: AC220V±22V, 50Hz±1Hz

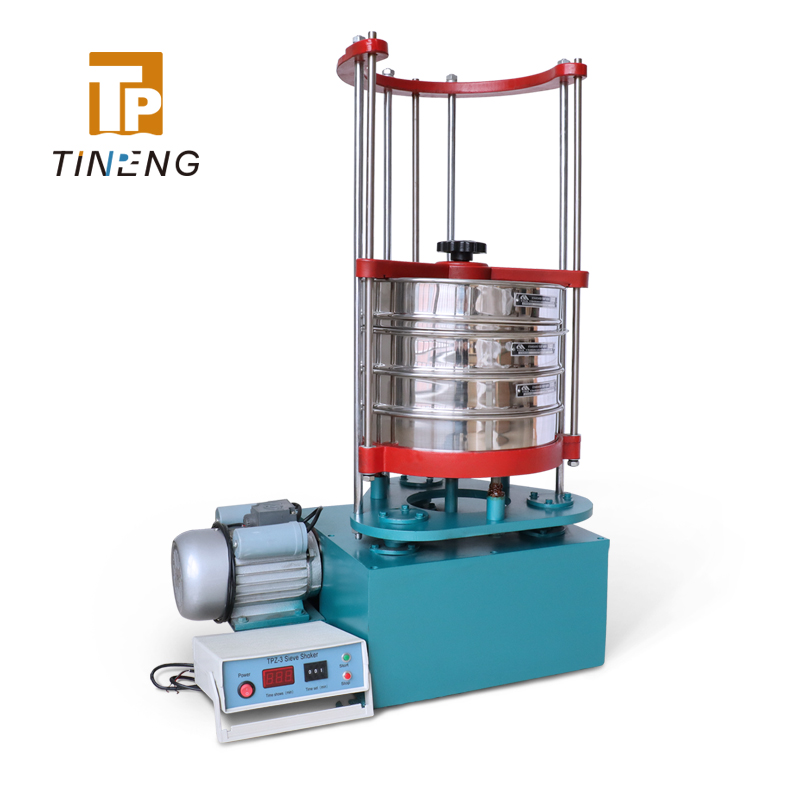

TPZ-3
Pounding frequency: 147 times/min.
Swaying requency: 221 times/min
Shaking amplitude: 8 mm
Time setting: 0 – 15 min. selectable
Diameter of gyration: 12.5mm
Sieve size: Ø200 or Ø300
Power supply: 380 V 50 Hz
Dimension: 670×440×970mm
Weight: 130 kg
