HYJB-30

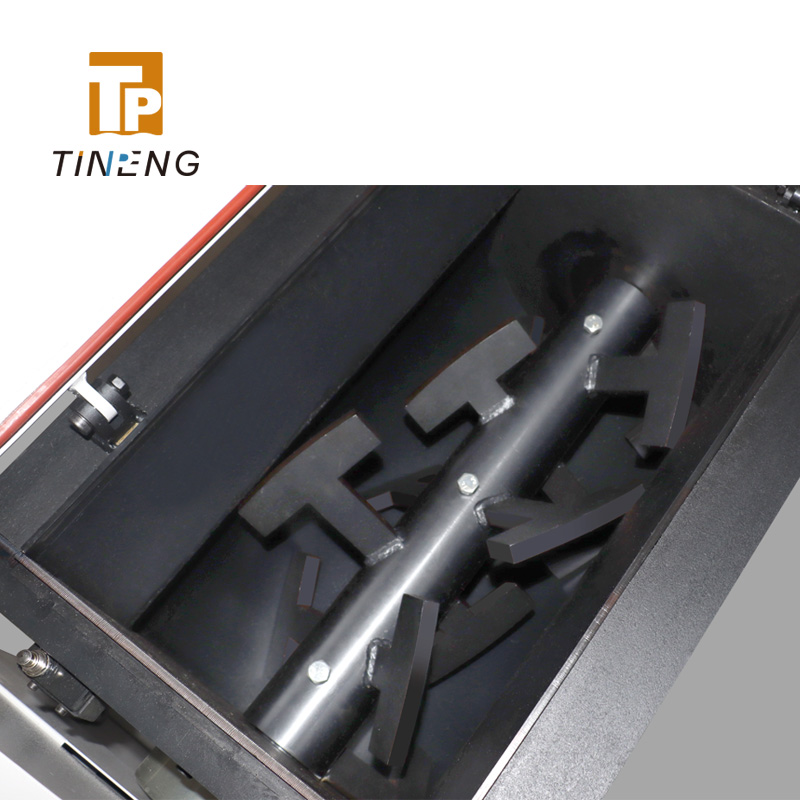

HYJB-30 Asphalt laboratory mixer is an equipment mainly used for laboratory preparation of asphalt mixture, which meets the EN 12697-35 standard and can fully coat the asphalt on the aggregate surface within 5 minutes at the mixing temperature.

Features
· Adopt touch screen display control. The operation is simple and the working parameters can be saved.
· Real-time display of mixing process data.· The temperature can be set arbitrarily between room temperature and 250℃, which meets the temperature requirements of cold mixing, warm mixing and hot mixing.
· During the mixing process, the temperature sensor is monitored in real time, and the temperature control accuracy is ±1°C.
· The mixing speed can be adjusted to adapt to the mixture of different aggregates and different modified asphalts.
· After mixing is complete, it will automatically unload.

TECHNICAL PARAMETERS

Mix capacity: 30L
Mixing speed: 0~35(r/min)
Temperature control range: Room temperature~250℃
Temperature control accuracy: ±1℃
Time control range: 0~9999s
Time control accuracy: ±1s
Power: 380V 50Hz 16A, Three-phase four-wire system with neutral wire ,750W
Dimensions: 1350×550×980mm
Weight: 200kg
Working Environment: -5~+50℃, Humidity: ≤80%
