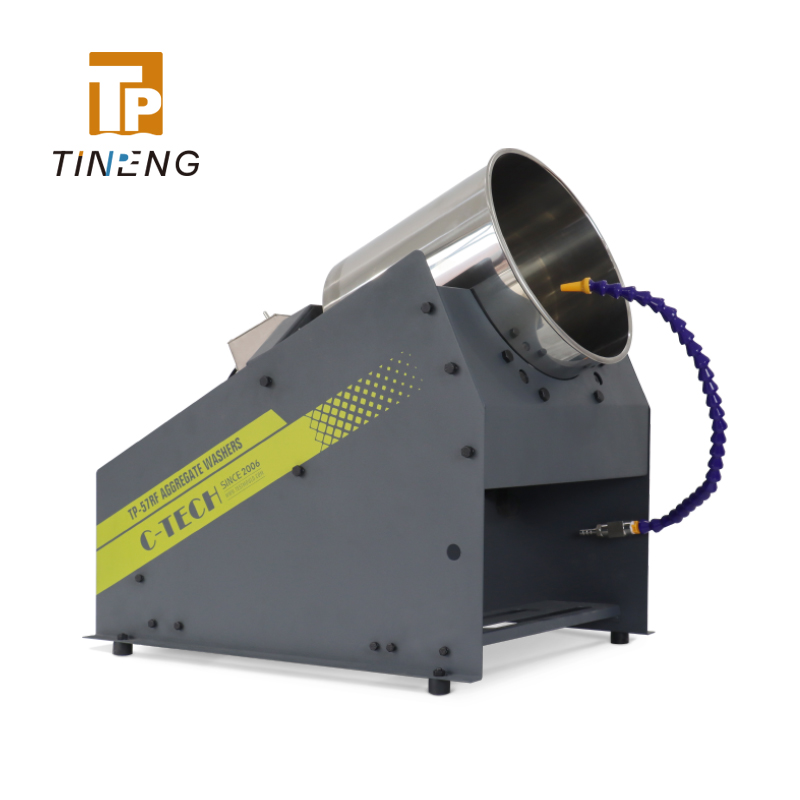

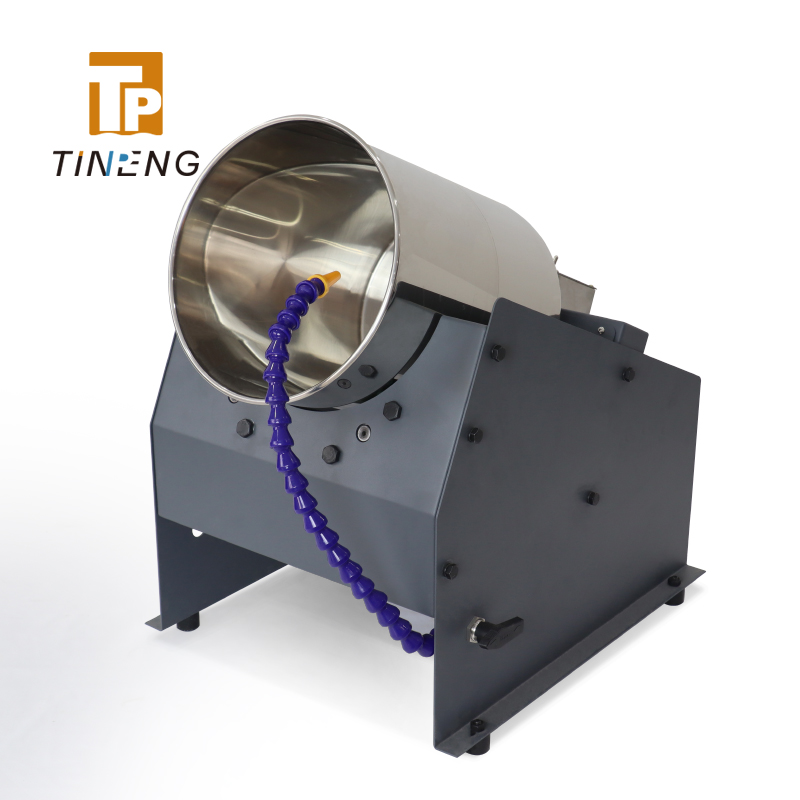

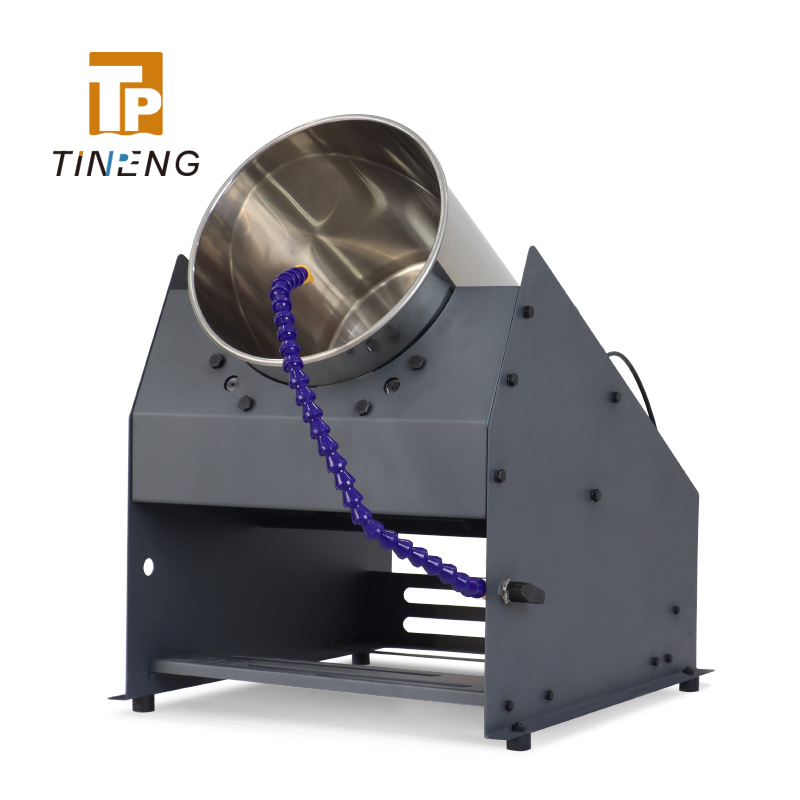

TP-52RF/TP-57RF
The aggregate washer is used to automatically wash samples and separate particles and inconsistencies from samples. The consistent rotation of the aggregate washer makes it to perform better than hand washing during the cleaning process. Water is continuously fed into the washing drum and the sample is agitated until the overflow becomes clear, meaning that the fines have been sufficiently removed from the sample. The overflow water is directed onto sieves to prevent the loss of oversize material. The apparatus is portable and convenient for placement on a countertop near the sink.
STANDARD
- AASHTO T 11
- ASTM C117
- ASTM D1140
Get Wholesale Price
The aggregate washer is used to automatically wash samples and separate particles and inconsistencies from samples. The consistent rotation of the aggregate washer makes it to perform better than hand washing during the cleaning process. Water is continuously fed into the washing drum and the sample is agitated until the overflow becomes clear, meaning that the fines have been sufficiently removed from the sample. The overflow water is directed onto sieves to prevent the loss of oversize material. The apparatus is portable and convenient for placement on a countertop near the sink.
Features
- Automatically washes soils and aggregate samples to remove fines
- Designed for fines content determination or preparation of samples for sieving
- Eliminates high cost and time required for manual methods
- Prevents loss of oversize material in decanted wash water

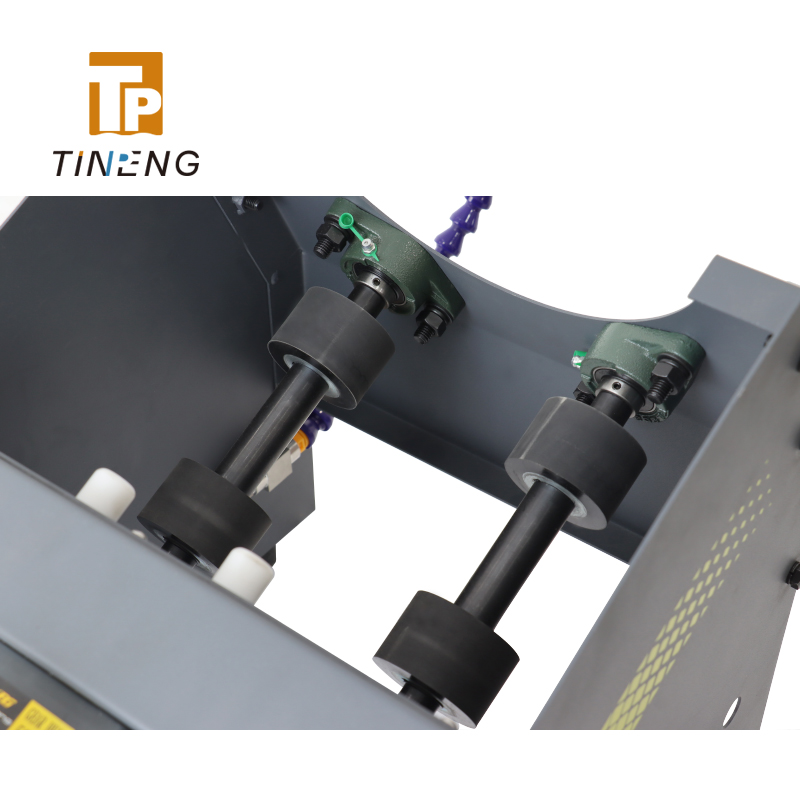

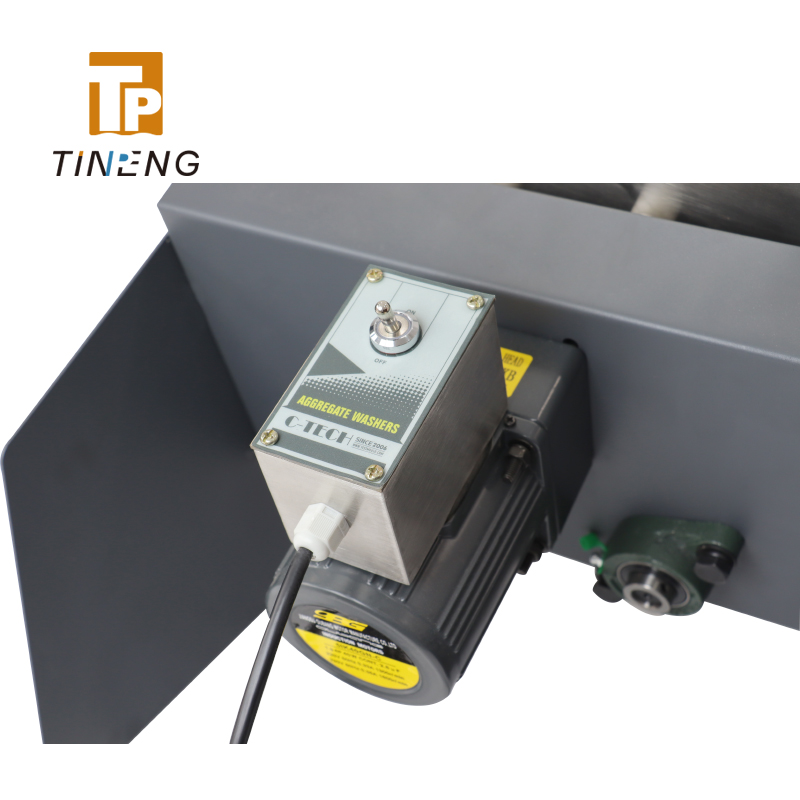

- Totally enclosed gear motor for drum rotation
TECHNICAL PARAMETERS

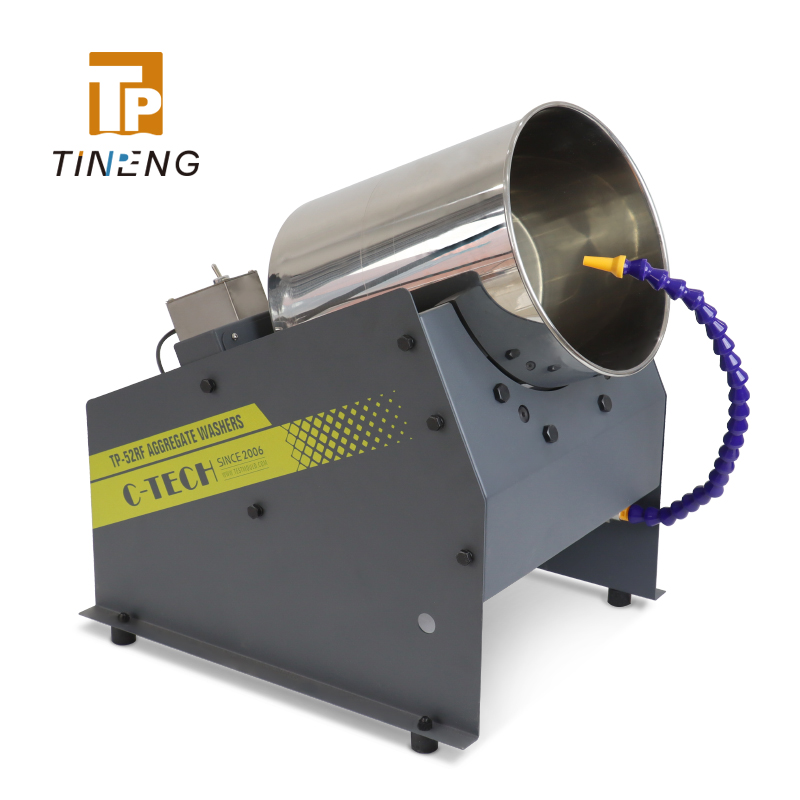

TP-52RF
Model:TP-52RF
Capacity:3.6kg
Speed:50±2 rpm
Power supply:220V, 0.33 Amps, 40 W
Dimensions:482×409×555mm
Weight:23kg 30kg
TP-57RF
Model:TP-57RF
Capacity:7kg
Speed:60±2 rpm
Power supply:220V, 1.3 Amps, 200 W
Dimensions:601×508×688mm
Weight:30kg
