Fine/Coarse aggregate angularity apparatus
Fine aggregate angularity apparatus

H-1680A/1686

This apparatus is used to determine the uncompacted void content of a fine/coarse aggregate sample. The method indicates the angularity, sphericity, and workability of the aggregate in a mixture for which it may be used. Each sample is mixed with a spatula until it is homogeneous. After filling the hopper, the sample is allowed to flow into the 100 ml copper cylindrical measure. The measure has a locating hole to fit a lug on the Funnel Stand to ensure each sample is tested with precision and repeatability. Once the user strikes off excess material, mass is determined and void content is computed.



STANDARD

  • ASTM C1252
  • AASHTO T304
  • AASHTO TP33
  • AASHTO TP56


Get Wholesale Price
Share:

This Apparatus is used to determine the uncompacted void content of a fine aggregate sample. The method indicates the angularity, sphericity, and workability of fine aggregate in a mixture for which it may be used. Each sample is mixed with a spatula until it is homogeneous. After filling the hopper, the sample is allowed to flow into the 100ml copper cylindrical measure. The measure has a locating hole to fit a lug on the Funnel Stand to ensure each sample is tested with precision and repeatability. Once the user strikes off excess material, mass is determined and void content is computed.

H-1680A

H-1686


-

TECHNICAL PARAMETERS

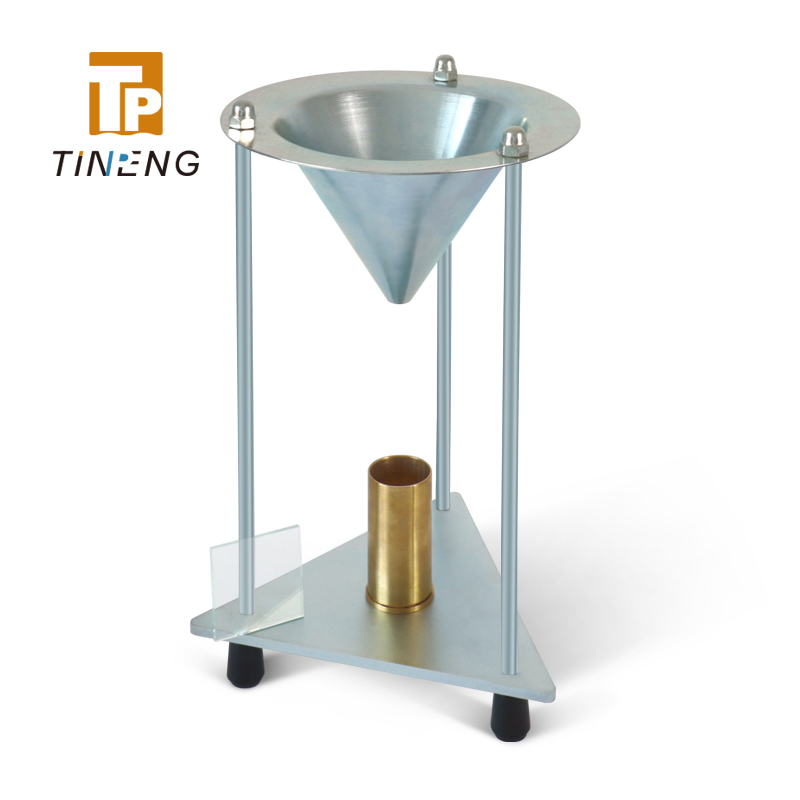

H-1680A
Purpose: Indicates angularity, sphericality, and workability of fine aggregate
Cylindrical measure volume: 100 ml
Cylindrical measure material: brass
Included Components100 ml brass cylindrical measure, Funnel assembly, Funnel stand, Glass plate (4" × 4" × 0.0375") for calibration
Standards SupportedASTM C1252, AASHTO TP33, AASHTO T304

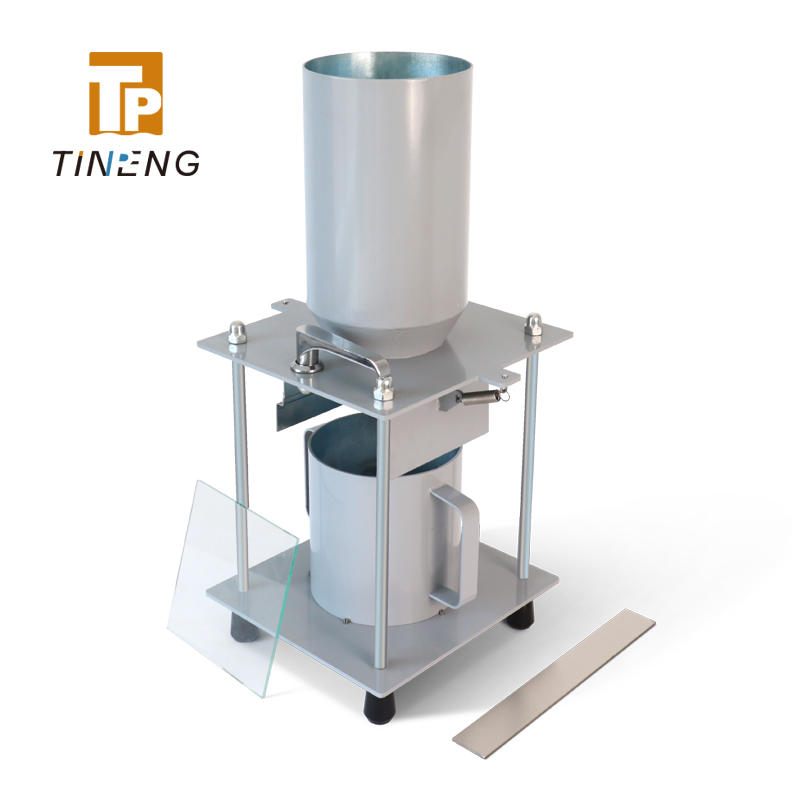

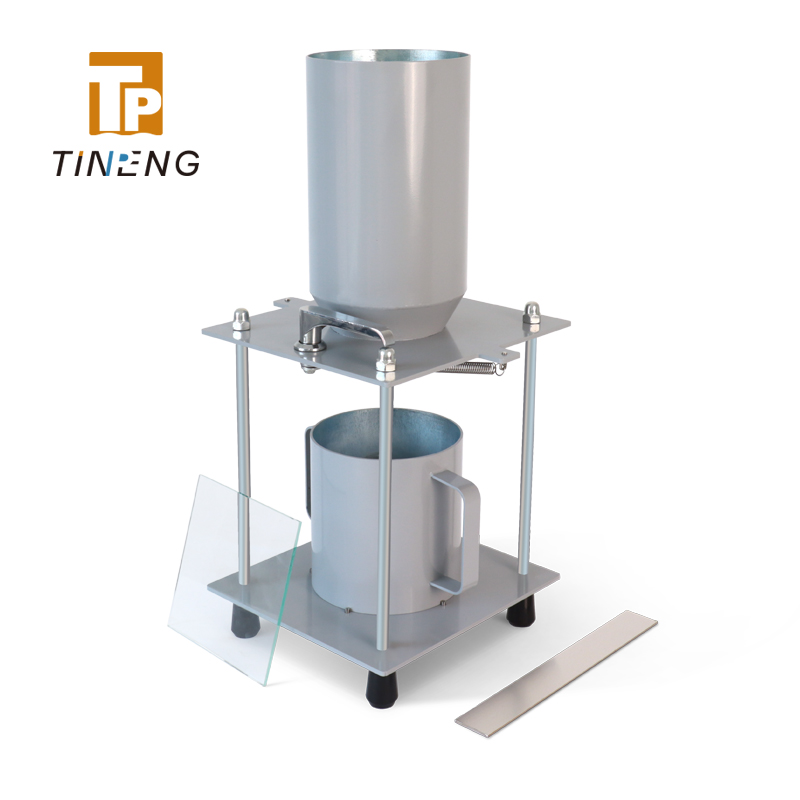

H-1686
Purpose: Indicates angularity, sphericity, and surface texture
Aggregate drop height115 mm free-fall from the funnel bottom
Cylindrical measure size154 mm diameter × 160 mm height
Glass Plate170 mm square, used for calibration
Sample Size5000 g per test method
Standards SupportedAASHTO TP56

-
-
