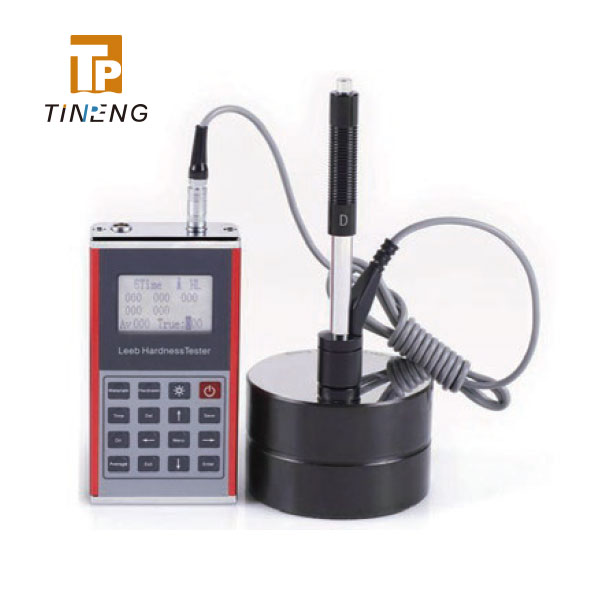

Leeb130

Features
· High quality metal sheel.
· Automatically identify 7 types of Impact Devices for special application.
· Freely switch to hardness scales HRB, HRC, HV, HB , HS,HL.
· Direct calibration on HL ,HRC ,HB.
· Test at any angle, even upside down
· Large LCD screen with back-light, showing all functions and parameters.
· Conversion to tensile strength (U.T.S)

Measuring materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.

Application fields
· The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment.
· Mechanical or permanent assembly components have been installed, the test space is very narrow,requires the original record regular test results.
· Large work-piece within a wide range of more rapid test measurement site.

Measuring conditions
· The weight of measuring object must be more than 2kg.
· The thickness must be more than 10mm.
· The surface roughness must be no less than 1.6μm.
· Tips: If do not meet the above conditions, the measuring object should be laminated with steel substrate by coupling agnts.

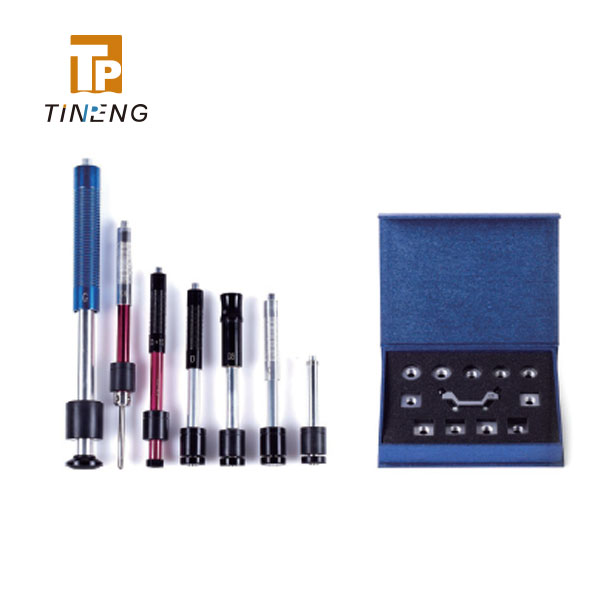

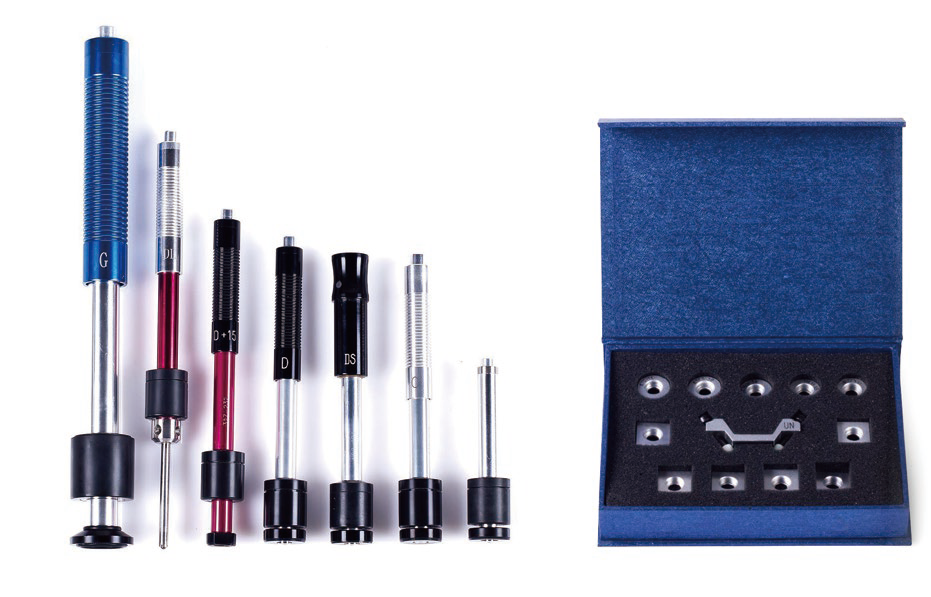

Optional impact device

TECHNICAL PARAMETERS

Measuring Range: (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA,(13.5-101.7)HRB
Hardness parameter: HL,HRC,HRB,HS,HB,HV
Accuracy: ±6HLD/±1.5HRC
Display: LCD with Back-Light
Memory: 350 Groups
PC Connection: Available
Battery: 2 AAA
Operating Temperature: -20℃~+60℃
Dimensions: 130×70×25mm
Impact Device Type: D,DC,DL,D+15,G,C,E
Weight: 300g

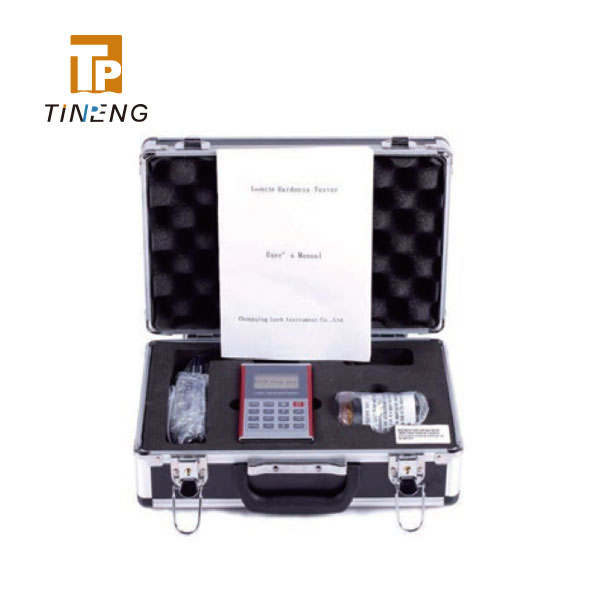

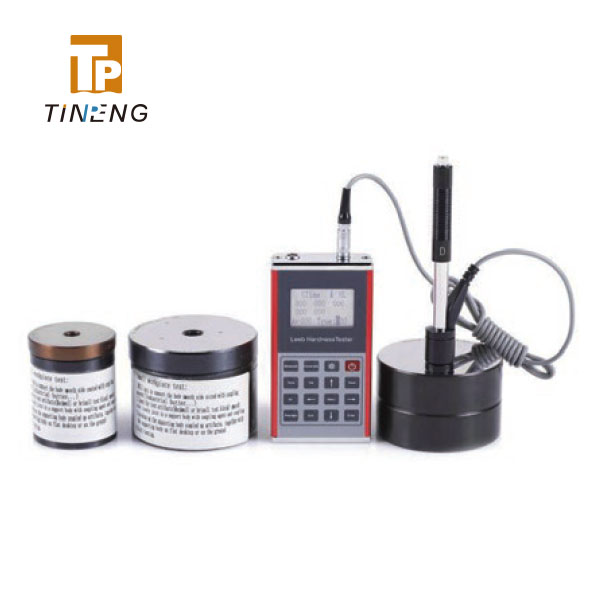

Standard Delivery: Main Unit, Impact Device Type D,Operation Manual,Power Adapter,Small Supporting Ring,Cleaning Brush,Calibration Block.
Optional Accessories: Optional Impact Devices,Shaped Support Ring,Software.
