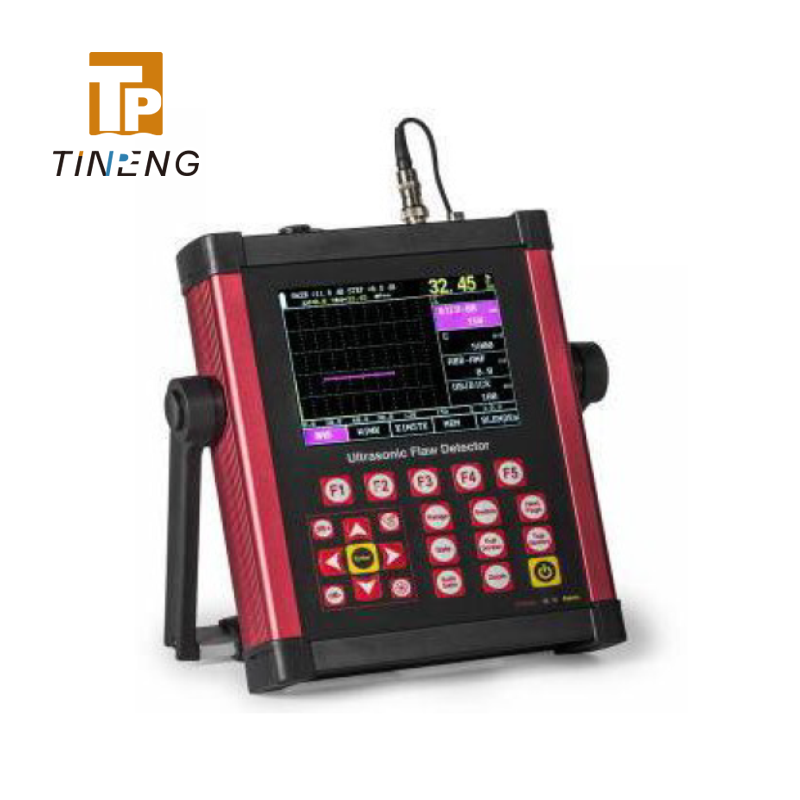

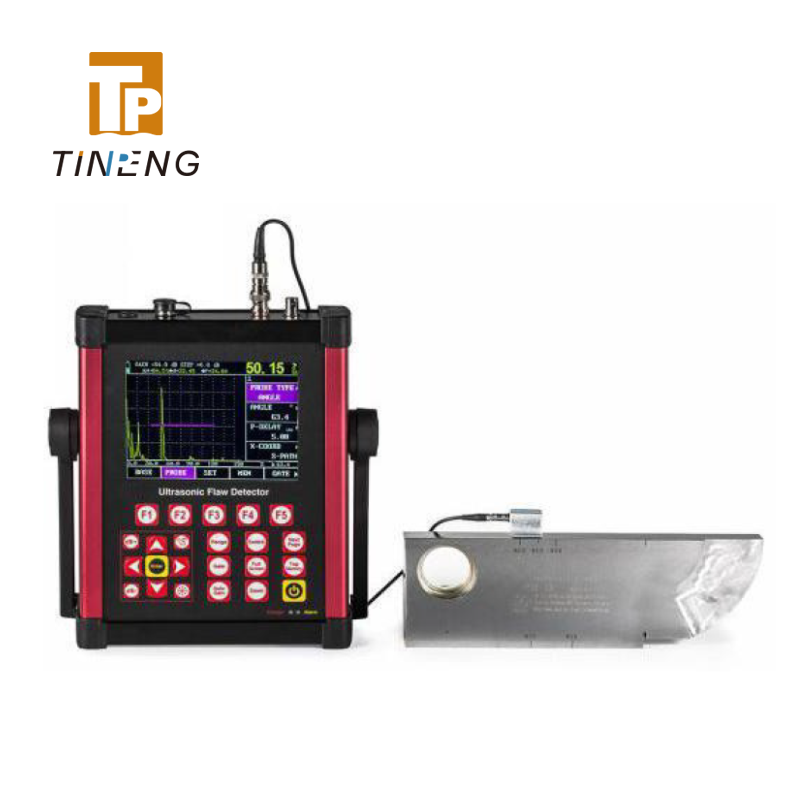

UEE952/953
Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece,such as cracks, welds, blowhole,etc.It Widely used in electric power, petrochemical, boiler and pressure vessel, steel, military,aerospace, railway transportation,automobiles, machinery, andother fields.
Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece,such as cracks, welds, blowhole,etc.It Widely used in electric power, petrochemical, boiler and pressure vessel, steel, military,aerospace, railway transportation,automobiles, machinery, andother fields.
FEATURES
-IP65 standard, with the durable metal shell (oil-proof, water-proof and dust-proof)
-PC software is available for data analysis, management and reports printing
-Probe automatic calibration
-DAC and AVG are automatically formed, and can be corrected and compensated
-Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)
-Functions such as Auto-gain and peak memory improve detection efficiency
-Automatically calculate the p value equivalent defects
-13 built-in testing standards are available
-Storage: 500-1000 pieces of A-scan images and data
-Power supply: rechargeable Li-ion battery, standby time more than 15hours
-The width and intensity of launch pulse are adjustable
-3 years warranty and life-long services.
Parameters
Uee952
Model: Uee952
Operating Frequency:0.2MHz～20MHz
Scan Range(mm):0-6000mm
Velocity Range (m/s):1000～15000
Gain Range(dB):0~110
Vertical linearity error:≤3%
Dynamic Range:≥32dB
Horizontal linearity error:≤0.2%
Testing sensitivity:≥62dB(Depth 200mm, Φ2 flat bottom hole)
Pulse Repetition Frequency:10~1000Hz
Pulse amplitude:100V~500V
Measuring channel:100
Storage:500
PC Connection:√
TCG curve:×
B Scan:×
AWS:×
Dimension:240×185×55mm
Weight:1.85kg

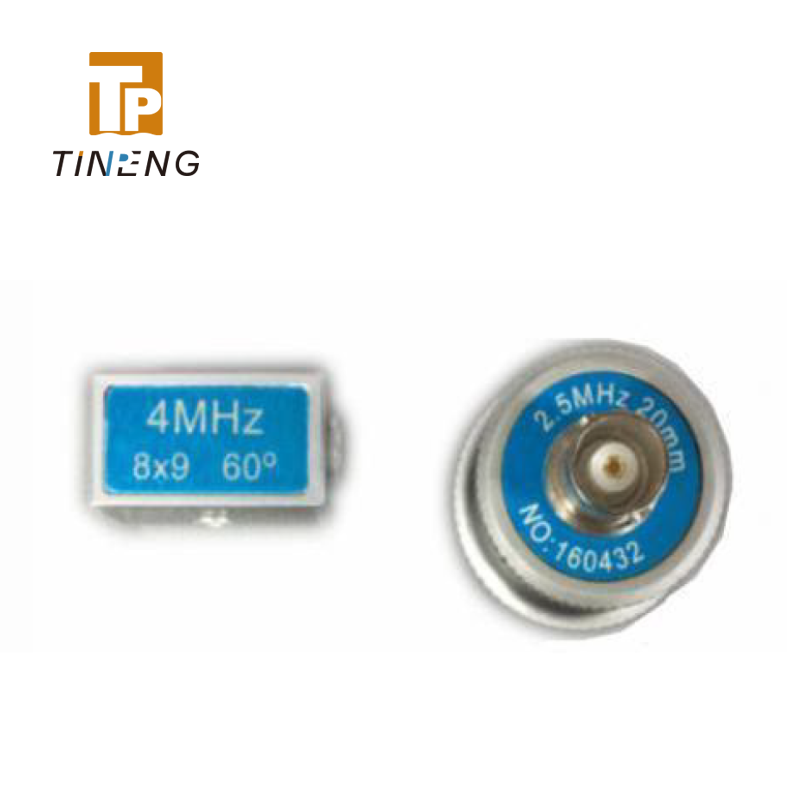

Standard Probes: Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9 Angle probe: 4MHz, 60 degree,8*9 mm, cable Q9-C5
Optional Accessories:Optional probes, Cables, Calibration blocks, Coupling agent
Uee953
Model: Uee953
Operating Frequency:0.2MHz～20MHz
Scan Range(mm):0-10000mm
Velocity Range (m/s):100～20000
Gain Range(dB):0~130
Vertical linearity error:≤3%
Dynamic Range:≥35dB
Horizontal linearity error:≤0.2%
Testing sensitivity:≥62dB(Depth 200mm, Φ2 flat bottom hole)
Pulse Repetition Frequency:10~1000Hz
Pulse amplitude:100V~500V
Measuring channel:500
Storage:1000
PC Connection:√
TCG curve:√
B Scan:√
AWS:√
Dimension:240×185×55mm
Weight:1.85kg
Standard Probes: Straight probe: 2.5MHz, diameter 20mm, cable Q9-Q9 Angle probe: 4MHz, 60 degree,8*9 mm, cable Q9-C5
Optional Accessories:Optional probes, Cables, Calibration blocks, Coupling agent

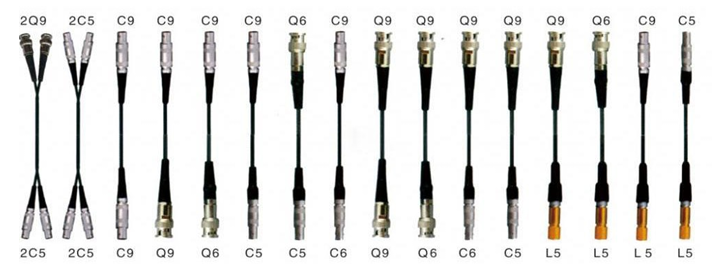

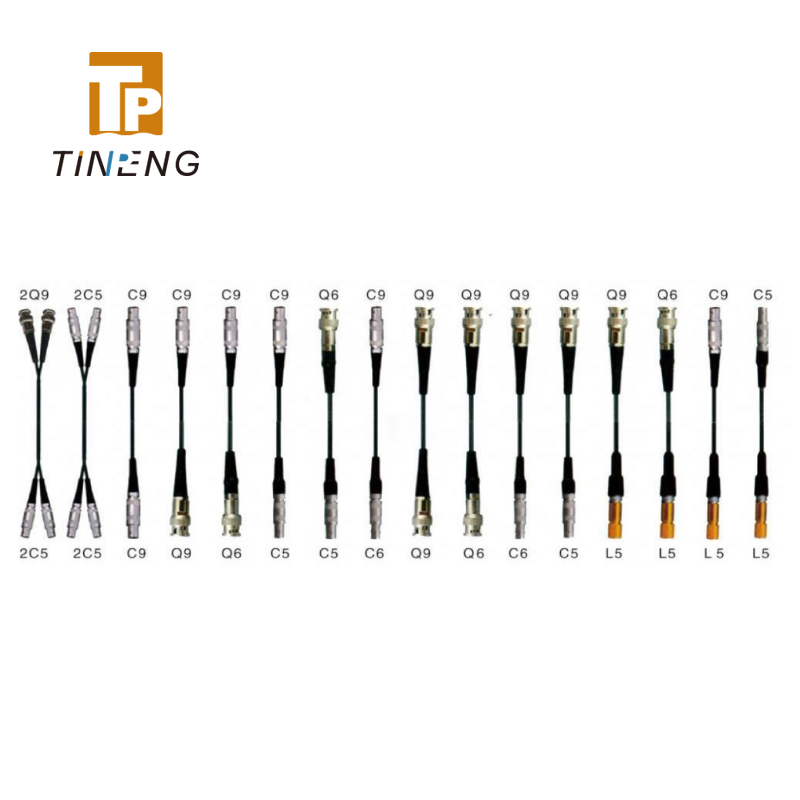

Different Cables for Probes

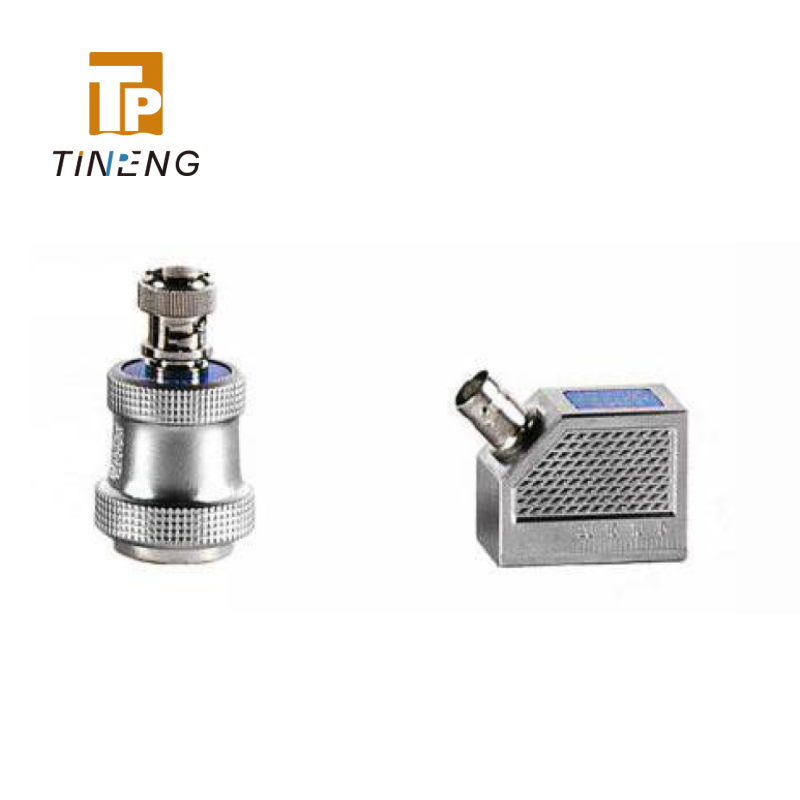

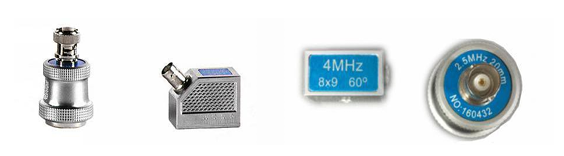

Standard Probes
