TPD-Q20/TPD-Z110/TPD3-250/DLF-22

The pavement core drilling machine is produced to cut cores from asphalt pavement and similar hard construction materials.

TPD-Q20 Core drilling machine (Petrol control)

TPD-Z110 Core drilling machine

TPD3-250 Core drilling machine

DLF-22 Bridge and Tunnel Invert Special Core Drilling Machine

TECHNICAL PARAMETERS

TPD-Q20 Core drilling machine (Petrol control)
Max Dia of drilling: 200 mm
Max depth of drilling: 700 mm
Rotate speed: 800-1200 r/min
Power: 5.5/9 HP
Weight: 130 Kg
Dimentions: 1080×780×1150 mm

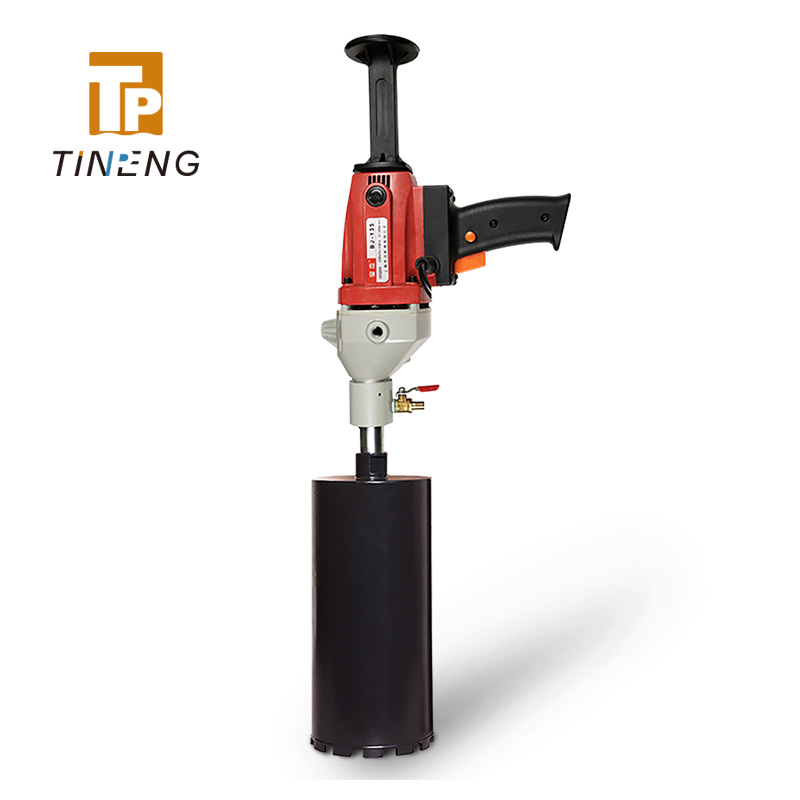

TPD-Z110 Core drilling machine
Max Dia of drilling: 110 mm
Rotate speed: 0-1900 r/min
Power: 1.4 Kw 220 V
Weight: 6 Kg

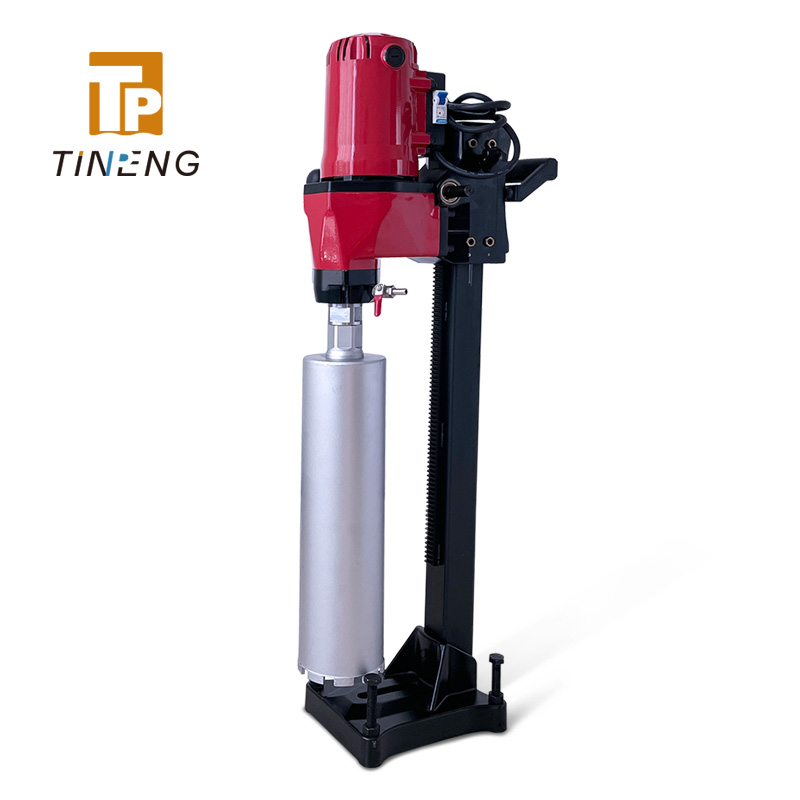

TPD3-250 Core drilling machine
Drilling range: 15-250 mm
No-load speed: 650 r/min
Power: 110v/220v/240v, 50-60HZ,4580W
Weight: 50 Kg

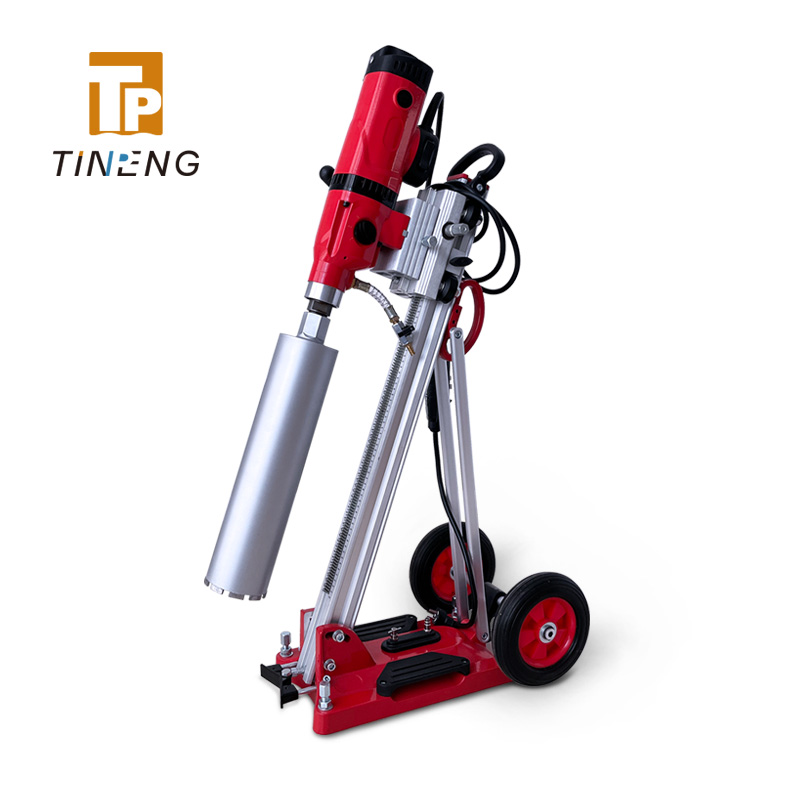

DLF-22 Bridge and Tunnel Invert Special Core Drilling Machine
Max. applicable diameter: φ200mm
Max. Drilling Depth: 2400mm
Rated voltage: 220 / 240V
Rated frequency: 50-60Hz
Input power: 2200W
No-load speed: 580/1400/2800rpm
Weight: 42/50kg
Overall size 900x400x250 mm
