AS-1

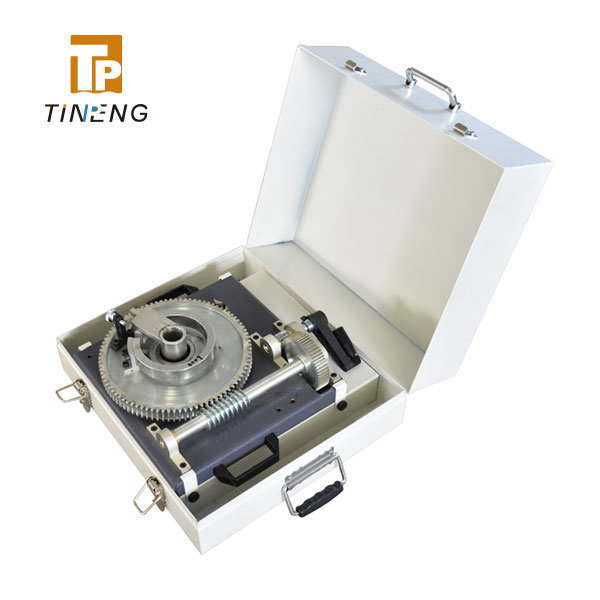

The field vane shear apparatus AS-1 is an instrument used to measure the natural shear strength of saturated soft clay on site. For soft clay with high sensitivity, the disturbance of soil sampling is very obvious, but you can get closer to the actual strength index by using this instrument. Generally, it can test the depth within 30 meters.
The field vane shear apparatus AS-1 is an instrument used to measure the natural shear strength of saturated soft clay on site. For soft clay with high sensitivity, the disturbance of soil sampling is very obvious, but you can get closer to the actual strength index by using this instrument. Generally, it can test the depth within 30 meters.
TECHNICAL PARAMETERS
Vane size: Ф75×150 mm, Ф50×100 mm
Steel ring torsion: 80N.m
Torsion accuracy: 0.55N.m
Guide rod: Ф30 x 1040mm
Dimension(mm): 430 x 910 x 220 (LxWxH)
Weight: 40 Kg
